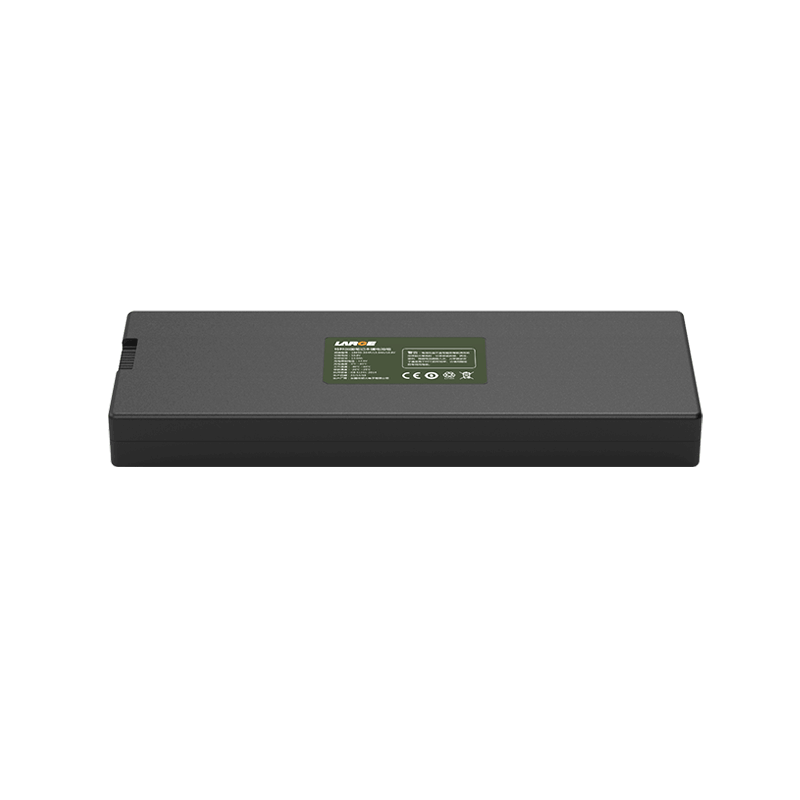

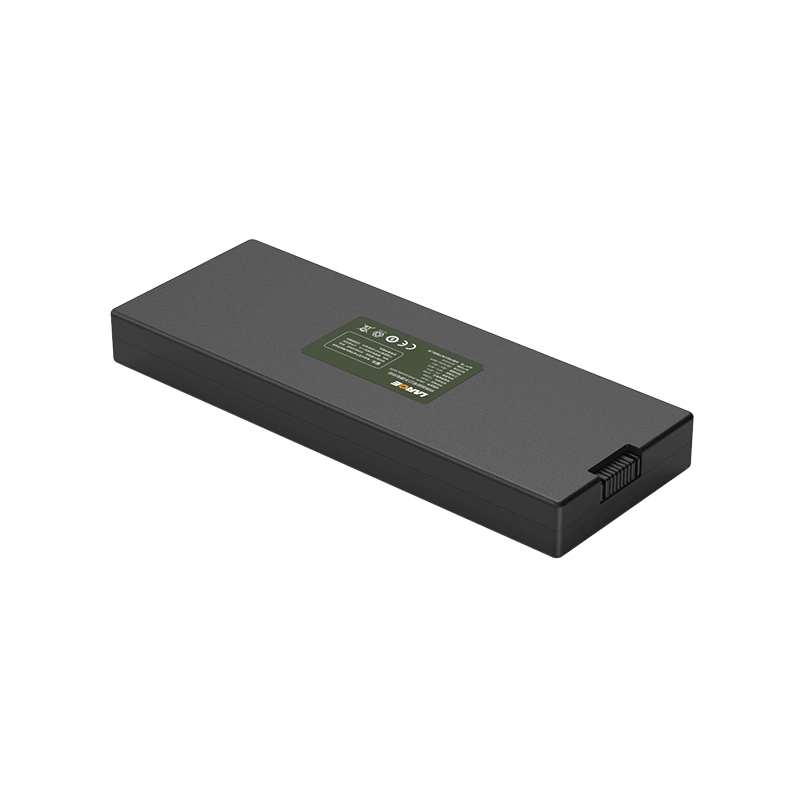

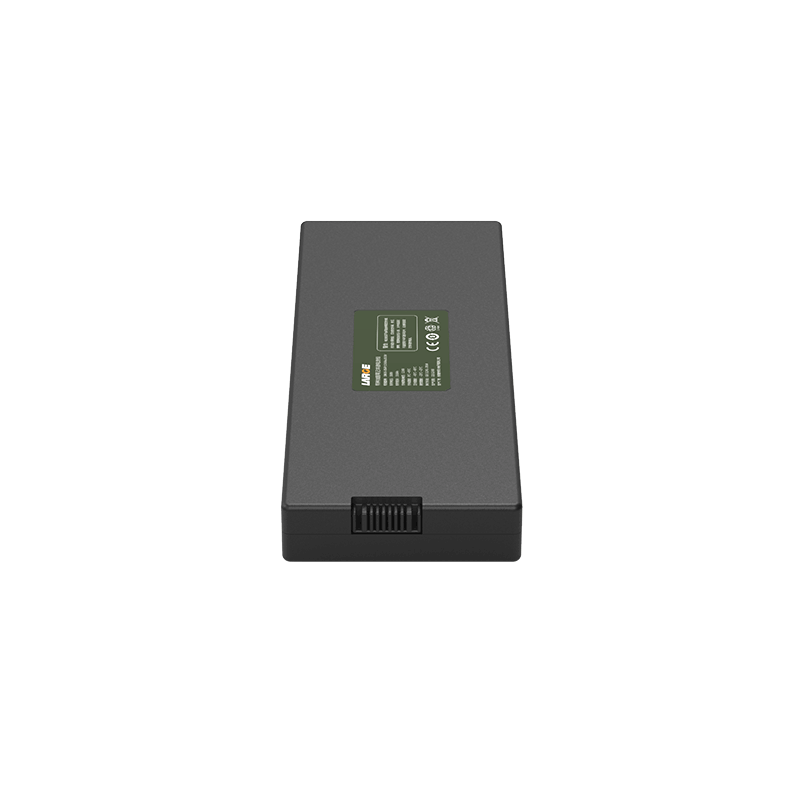

Custom Lithium ion Battery Pack
Project number: 35AQ1008-04
Battery model: INR18650/3200mAh/3.6V
Battery specification: 18650-3S4P/13.0Ah/10.8V
Nominal voltage: 10.8V
Nominal capacity: 13.0Ah
Charging voltage: 12.6V
Charging current: ≤6.5A
Discharge current: 13.0A
Instantaneous discharge current: 15.0A
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤180mΩ
Battery weight: 900g
Product size: 22.5*79.1*211.1mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 ~ 25℃
Battery case: /
Intelligent lithium-ion protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Applications: rugged laptop, special equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
