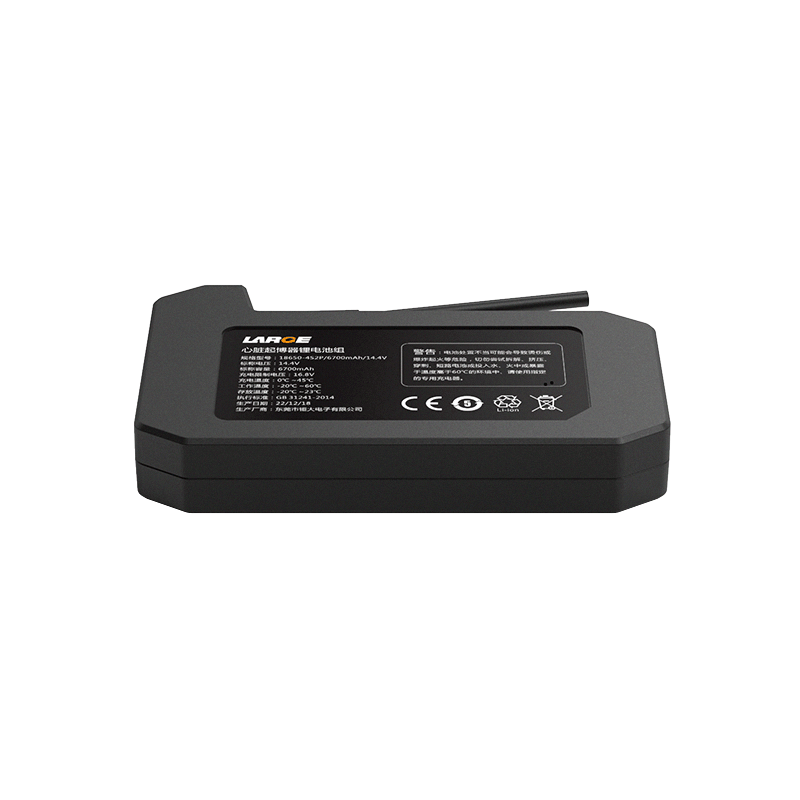

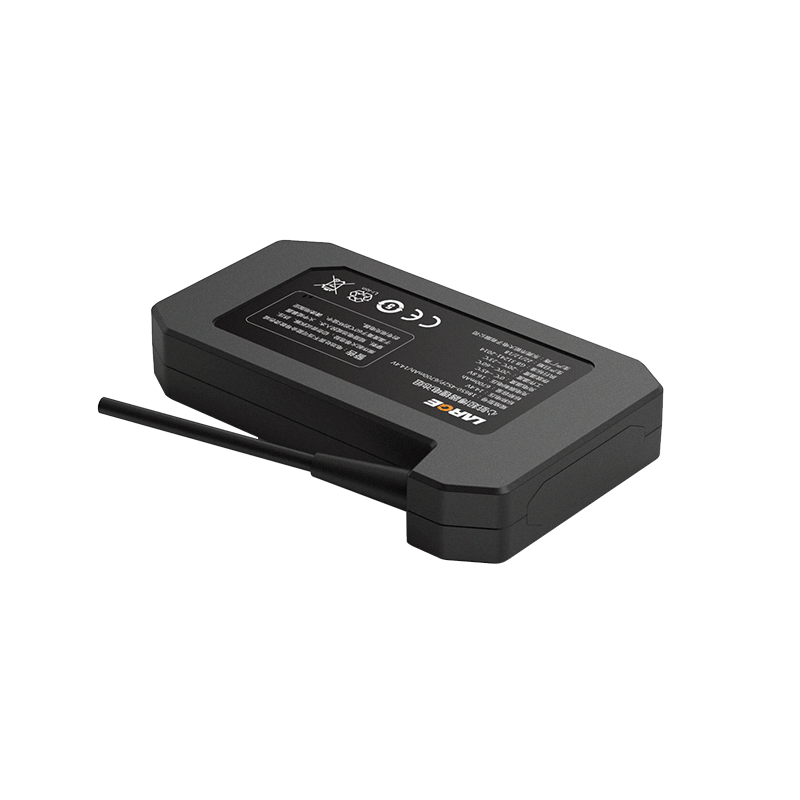

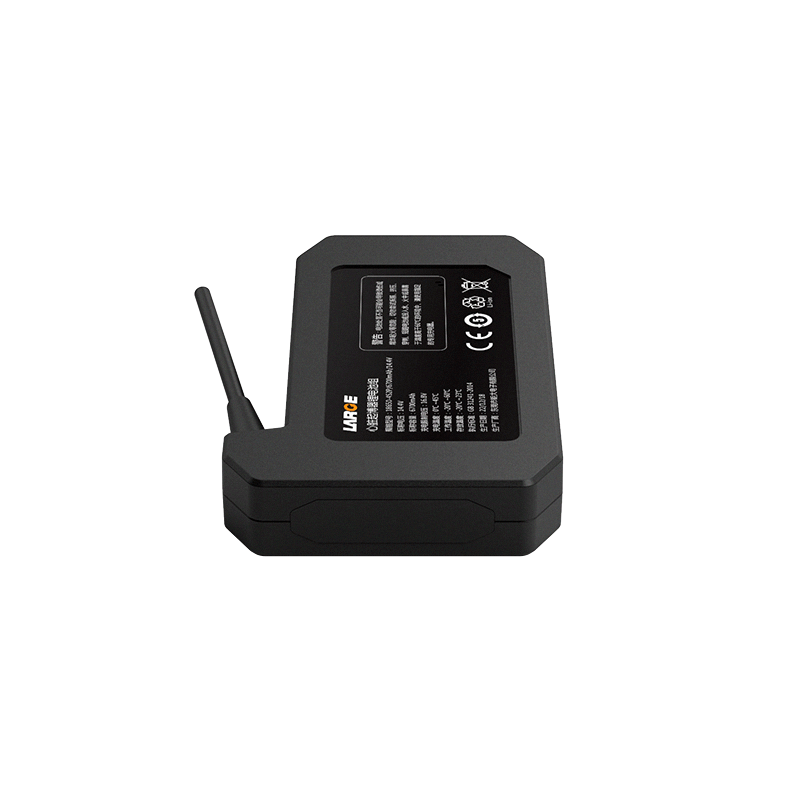

Custom Lithium ion Battery Pack
Item number: 06DQ0046-01T
Battery model: INR18650/3350mAh/3.6V-SDI
Battery specification: 18650-4S2P/6700mAh/14.4V (smart + shell)
Nominal voltage: 14.4V
Nominal capacity: 6700mAh
Charging voltage: 16.8V
Charging current: ≤3.4A
Discharge current: 6.7A
Instantaneous discharge current: 8.0A
Discharge cut-off voltage: 10.8V
Finished internal resistance: ≤200mΩ
Battery weight: 550g
Product size: 27*84*163mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 23℃
Battery case: ABS+PC
Intelligent lithium-ion protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Applications: cardiac pacemaker, medical equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
