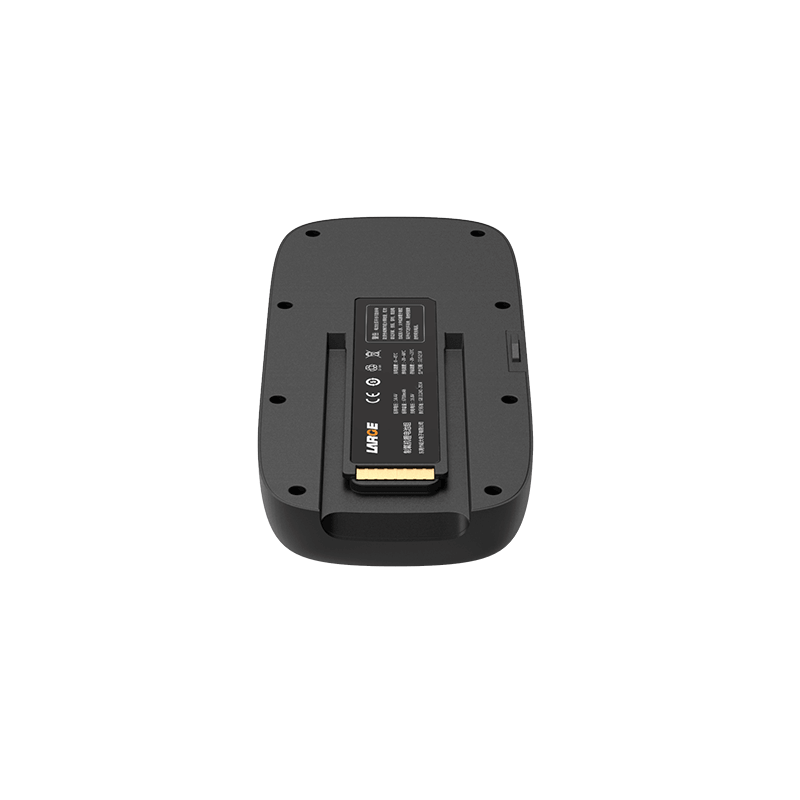

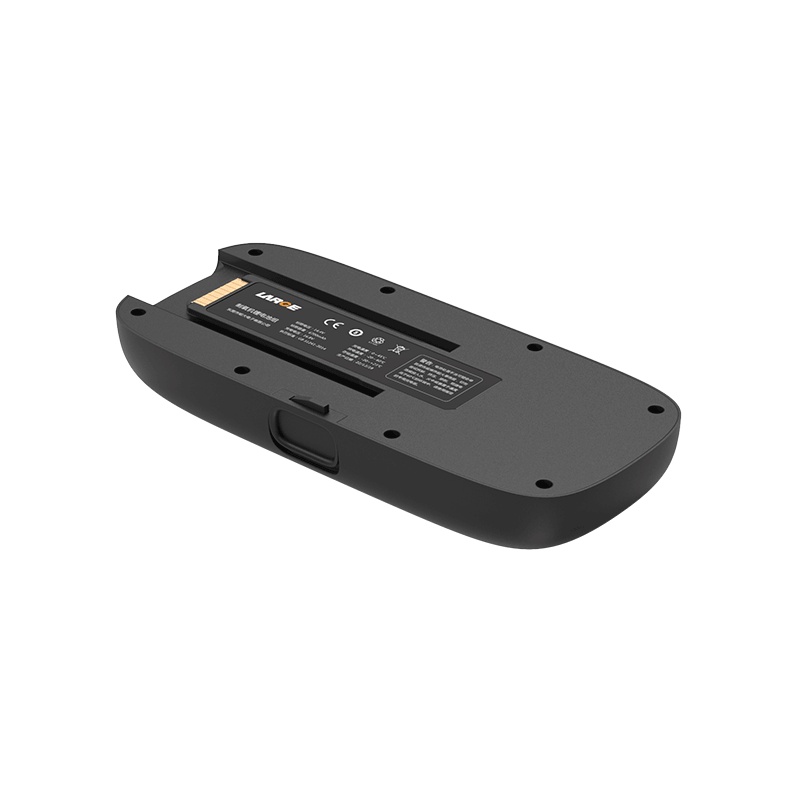

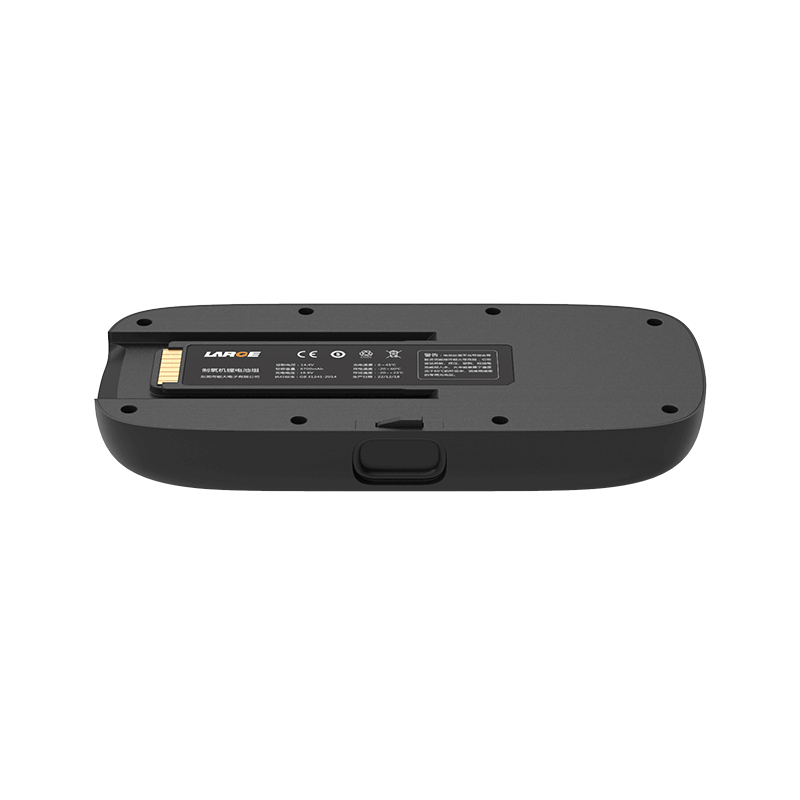

Custom Lithium ion Battery Pack
Project number: 04DQ0086-12
Battery model: NCR18650/3350mAh/3.6V
Battery specification: 18650-4S2P/6700mAh/14.4V (smart + shell)
Nominal voltage: 14.4V
Nominal capacity: 6700mAh
Charging voltage: 16.8V
Charging current: ≤2.8A
Discharge current: 6.70A
Instantaneous discharge current: 15.0A
Discharge cut-off voltage: 11.2V
Finished internal resistance: ≤250mΩ
Battery weight: 550g
Product size: 28*88*204.43mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 23℃
Battery case: /
Intelligent lithium-ion protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Applications: Oxygen generator, medical equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
