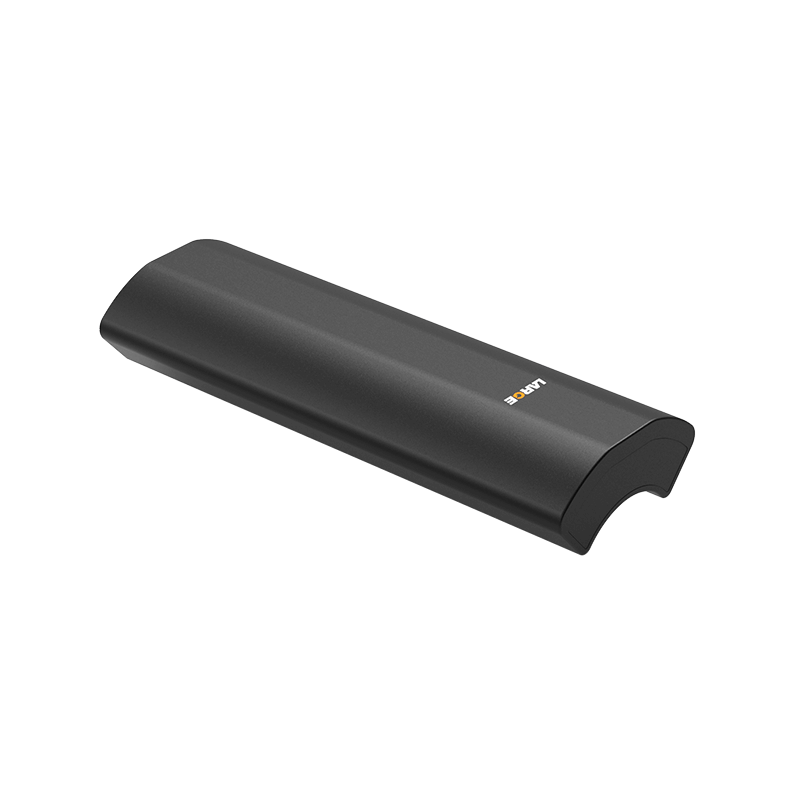

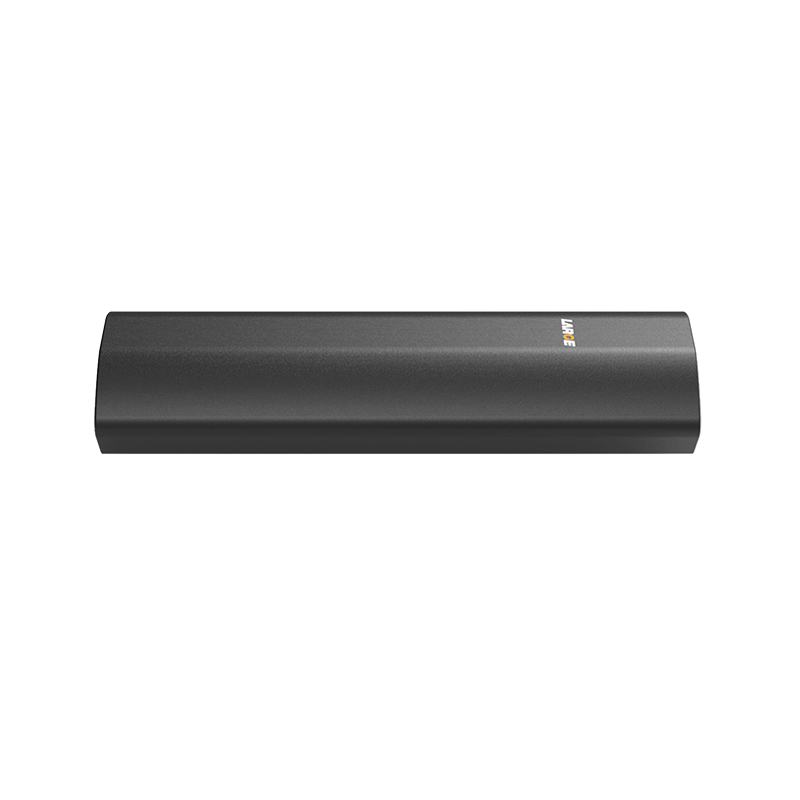

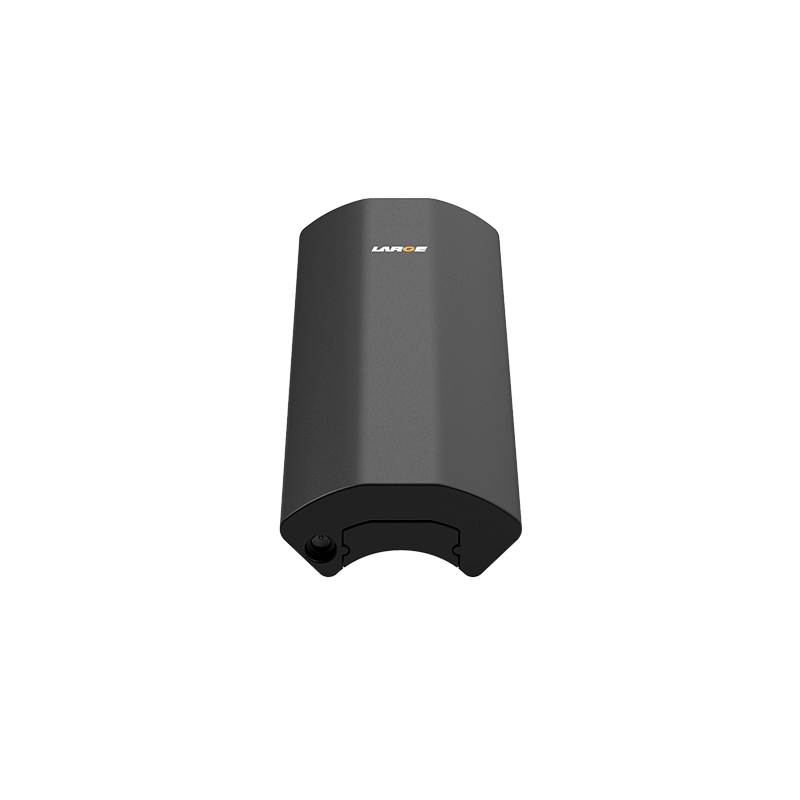

Custom Lithium ion Battery Pack
Project number: 05DQ0039-02
Battery model: UR18650/2490mAh/3.6V
Battery specification: 18650-4S3P/6800mAh/14.4V
Nominal voltage: 14.4V
Nominal capacity: 10Ah
Charging voltage: 16.8V
Charging current: ≤4A
Discharge current: 2-4A
Instantaneous discharge current: 7.5A
Discharge cut-off voltage: 12.0V
Internal resistance of finished product: ≤350mΩ
Battery weight: 850g
Product size: 43.31*94.25*255mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 30℃
Battery case: /
Intelligent lithium-ion battery protection:, power display, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, voltage regulation output, intelligent control, etc.
Application: Sun umbrella, outdoor leisure
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
