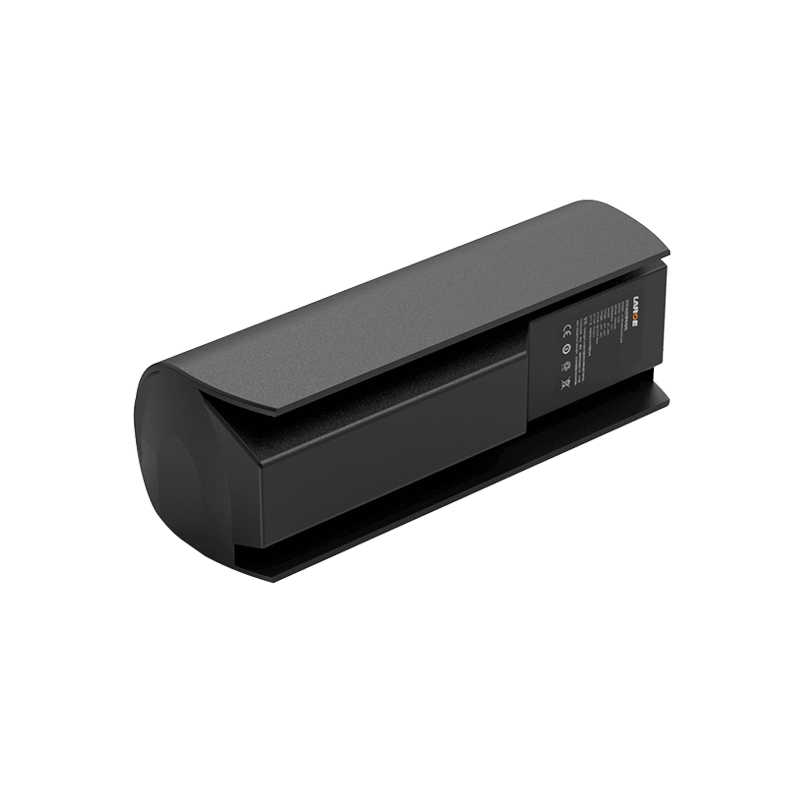

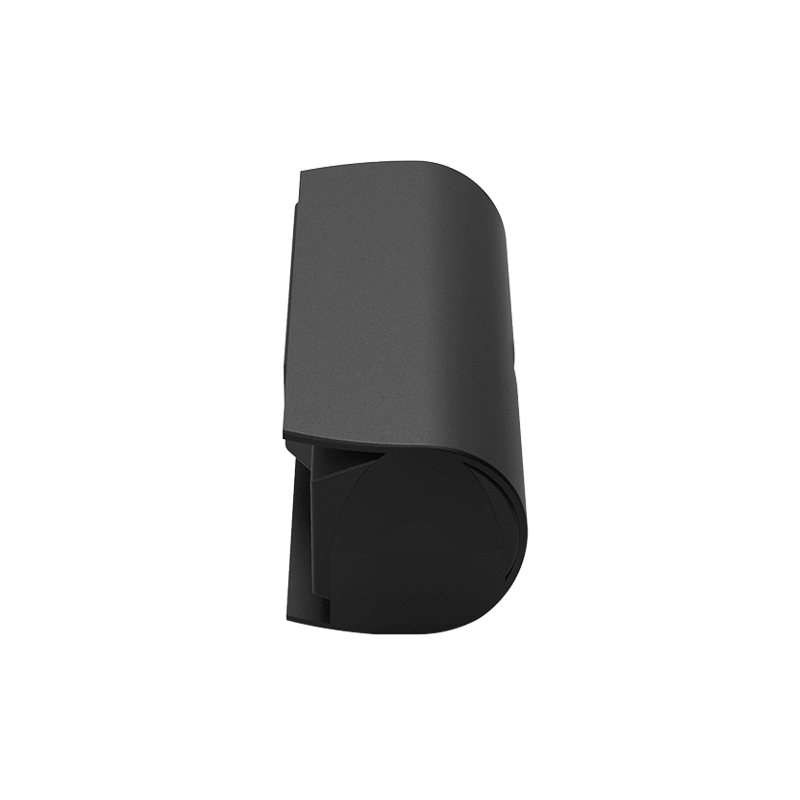

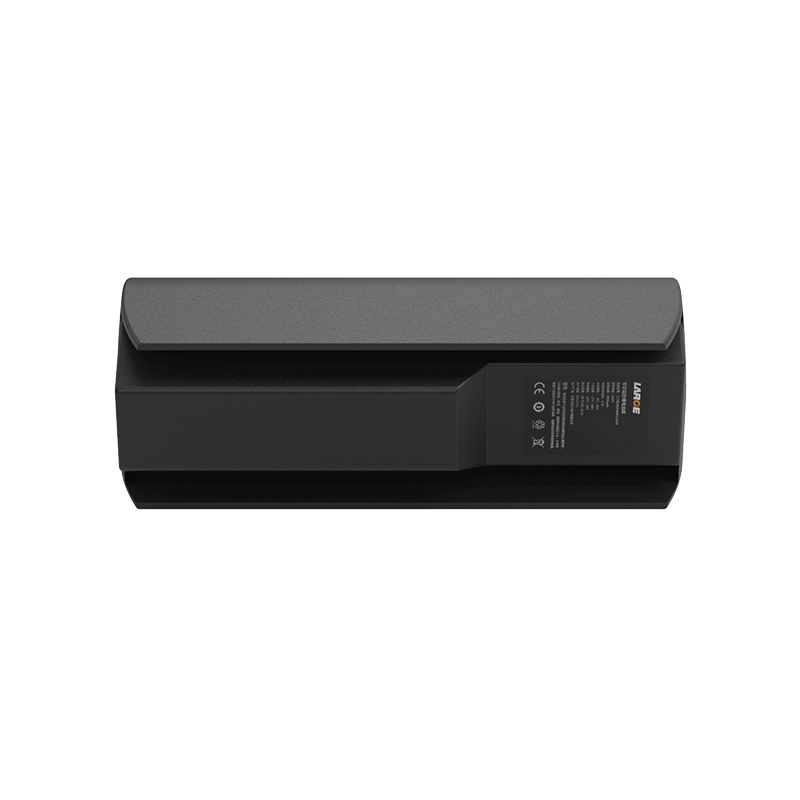

Custom Lithium ion Battery Pack
Product number: 01DQ0040-34
Battery model: 21700/4900mAh/3.63V
Battery specification: 21700/4900mAh/3.63V
Nominal voltage: 3.63V
Nominal capacity: 4900mAh
Charging current: ≤2.45A
Discharge current: 4.9A
Instantaneous discharge current: 6A
Discharge cut-off voltage: 2.8V
Finished internal resistance: ≤150mΩ
Battery weight: 100g
Product size: 22.5*27*72.0mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 20℃
Battery case: /
Intelligent lithium-ion battery protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: security monitoring
