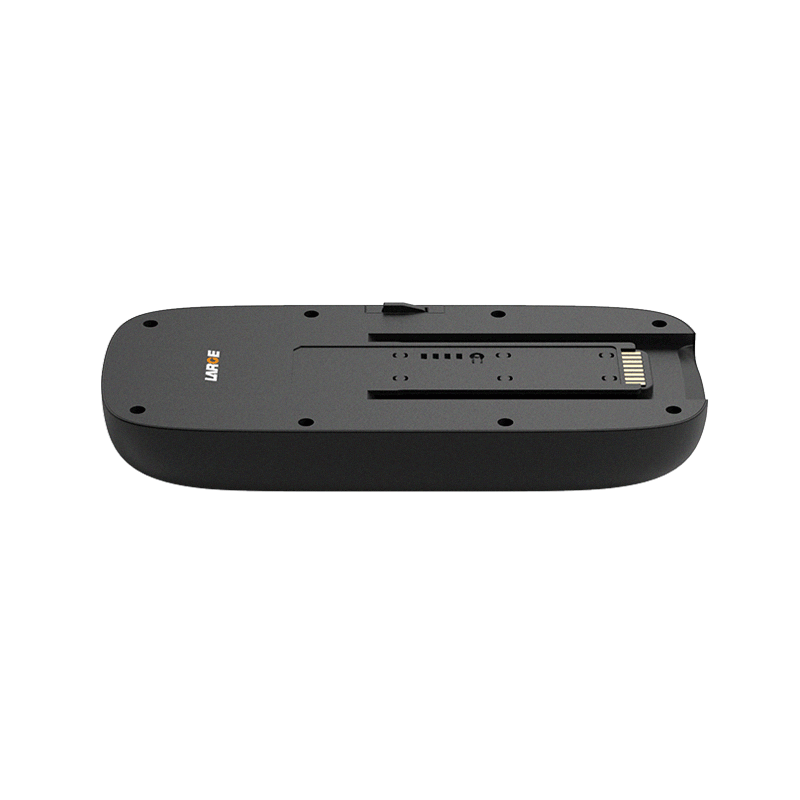

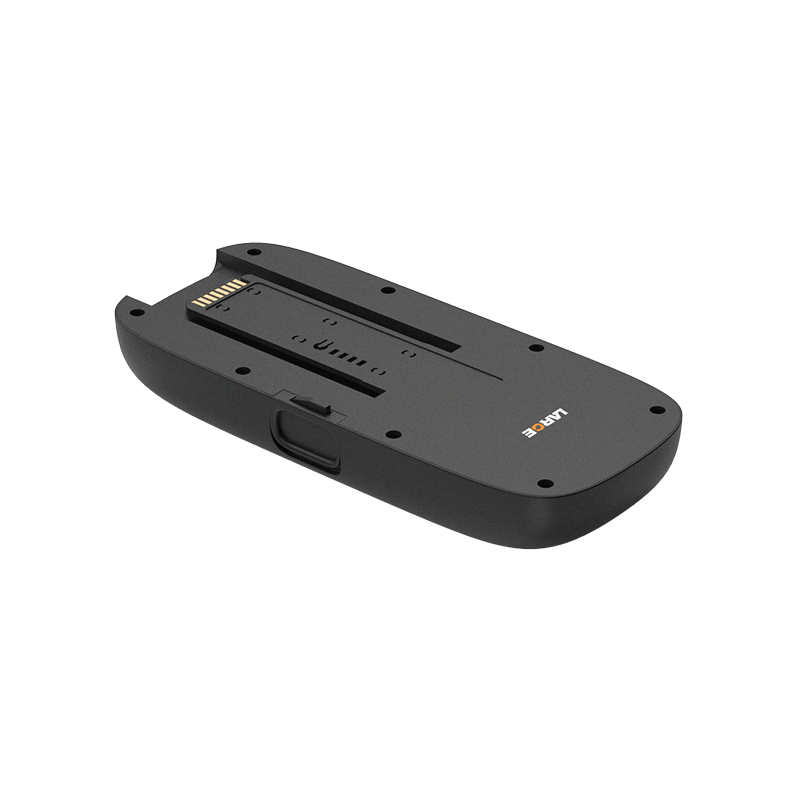

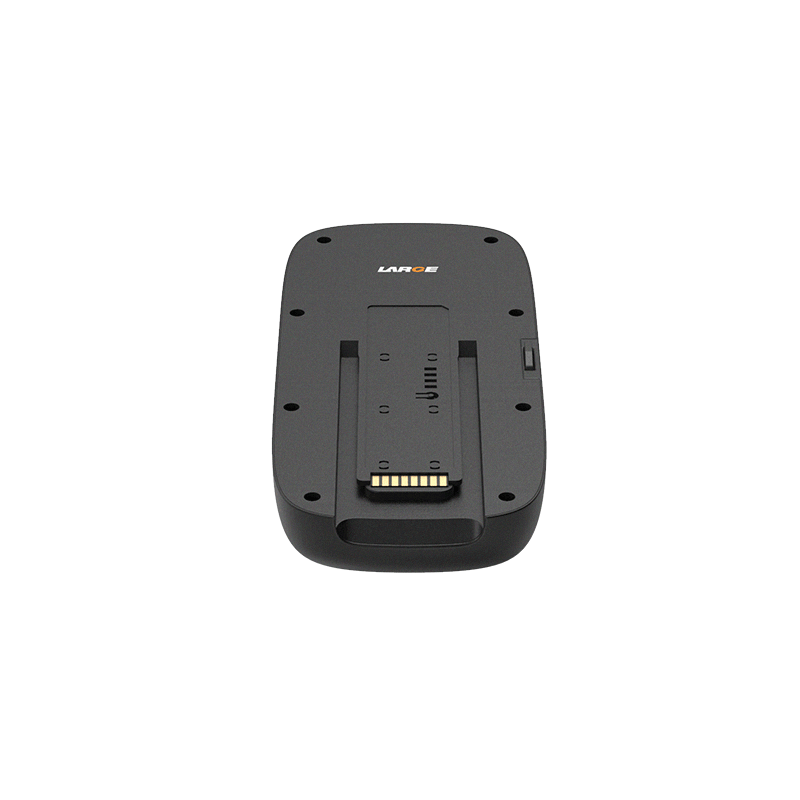

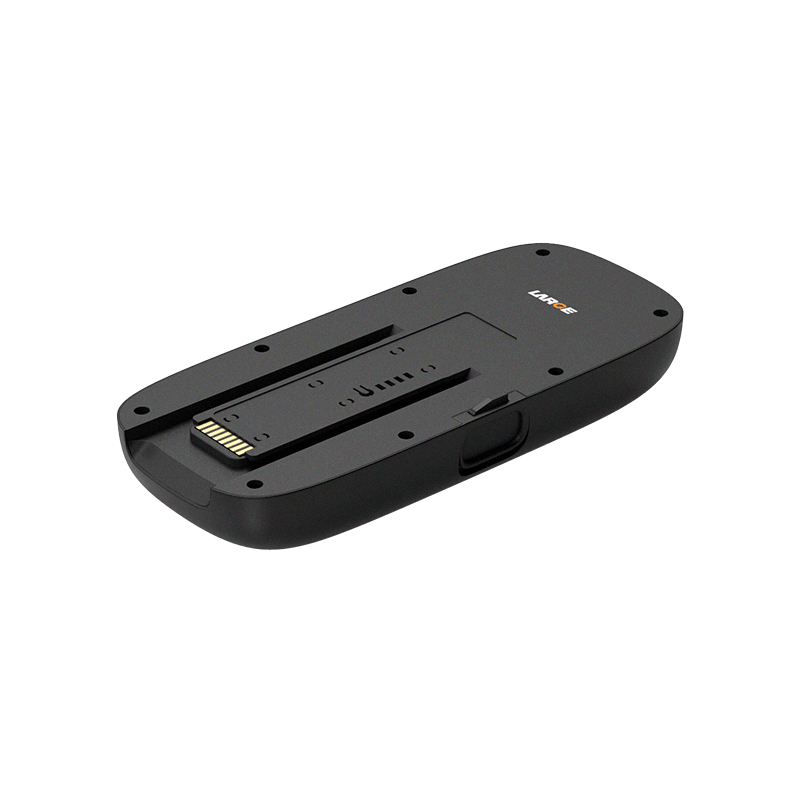

Custom Lithium ion Battery Pack
Product number: 08DQ0082-22
Battery model: 21700/4900mAh/3.6V
Battery specification: 21700-4S1P/4900mAh/14.52V
Nominal voltage: 14.52V
Nominal capacity: 4.9Ah
Charging voltage: 14.52V
Charging current: ≤2.45A
Discharge current: 4.9A
Instantaneous discharge current: 10.0A
Discharge cut-off voltage: 11.2V
Finished internal resistance: ≤250mΩ
Battery weight: 1.4kg
Product size: 52.4*65.3*93.0mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 25℃
Battery case: shell
Intelligent lithium-ion battery protection: power calculation, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Applications: Defibrillator, medical equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
