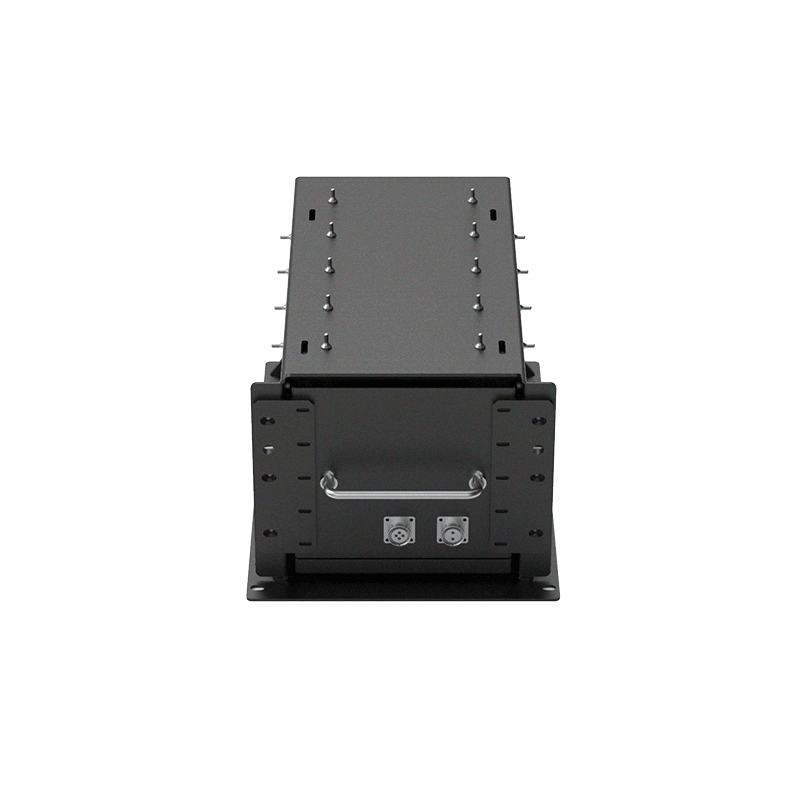

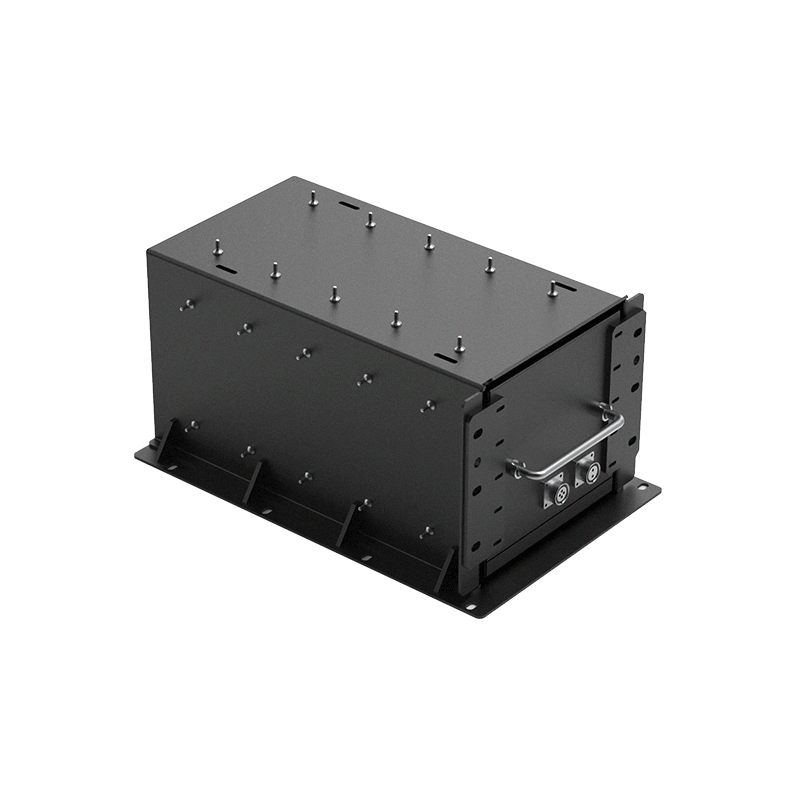

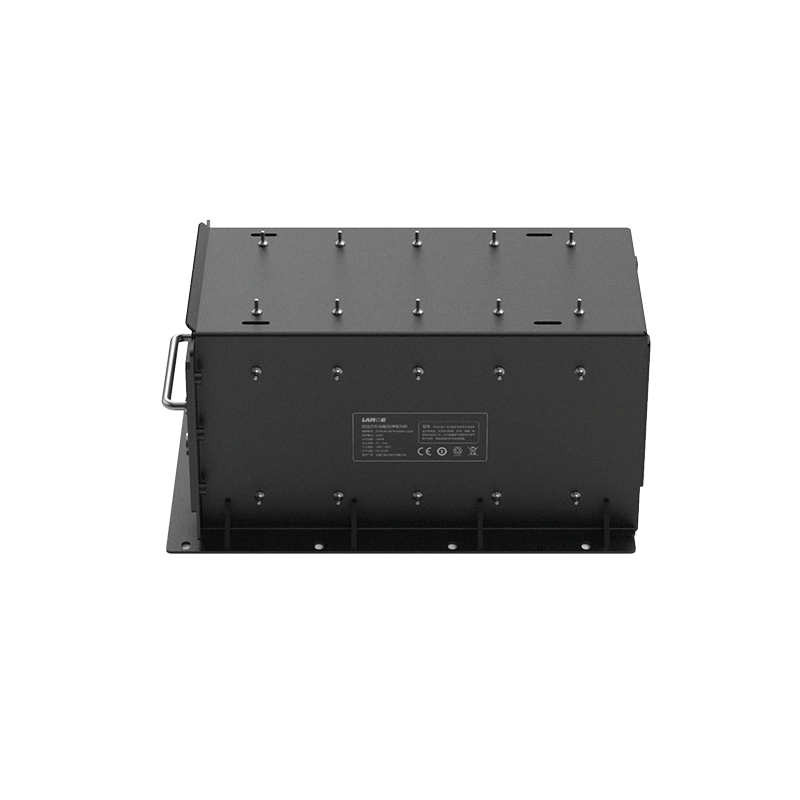

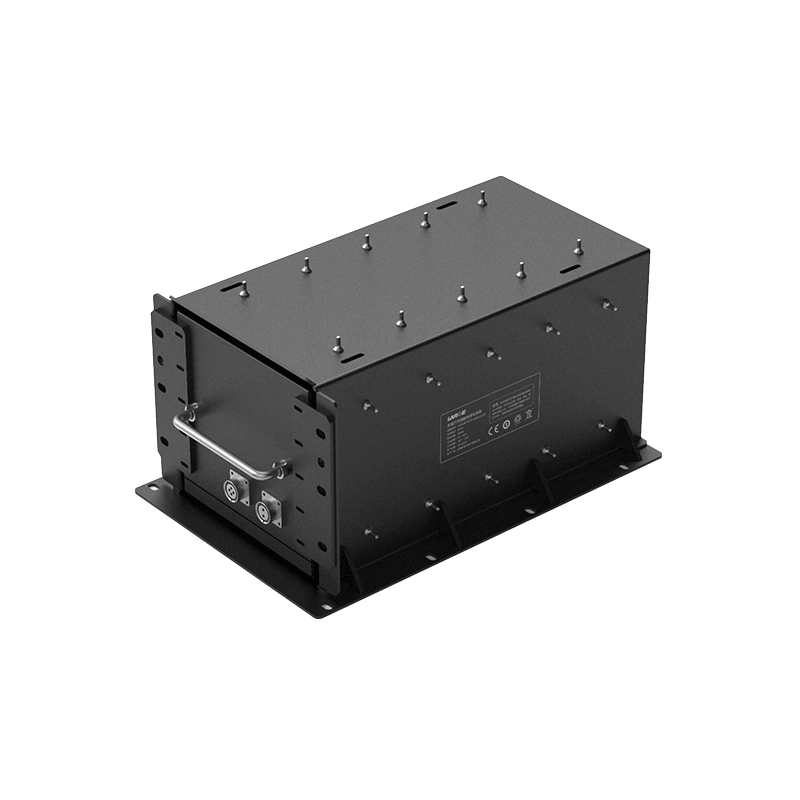

Custom Lithium ion Battery Pack
Product number: 08DQ0065-01
Cell model: 2270160/20Ah/3.2V
Battery specifications: 2270160-4S7P/140Ah/12.8V
Nominal voltage: 12.8V
Nominal capacity: 140Ah
Charging voltage: 14.4V
Charging current: ≤20A
Discharge current: 20A
Instant discharge current: 30A
Discharge cut-off voltage: 8.10V
Internal resistance of finished product: ≤100mΩ
Battery weight: ≤40kg
Product size: 200*270*400mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 55℃
Storage temperature: -20 ~ 20℃
Battery case: sheet metal case
Intelligent lithium-ion battery protection: power management (RS485,CAN protocol), short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: subway truck monitoring equipment
