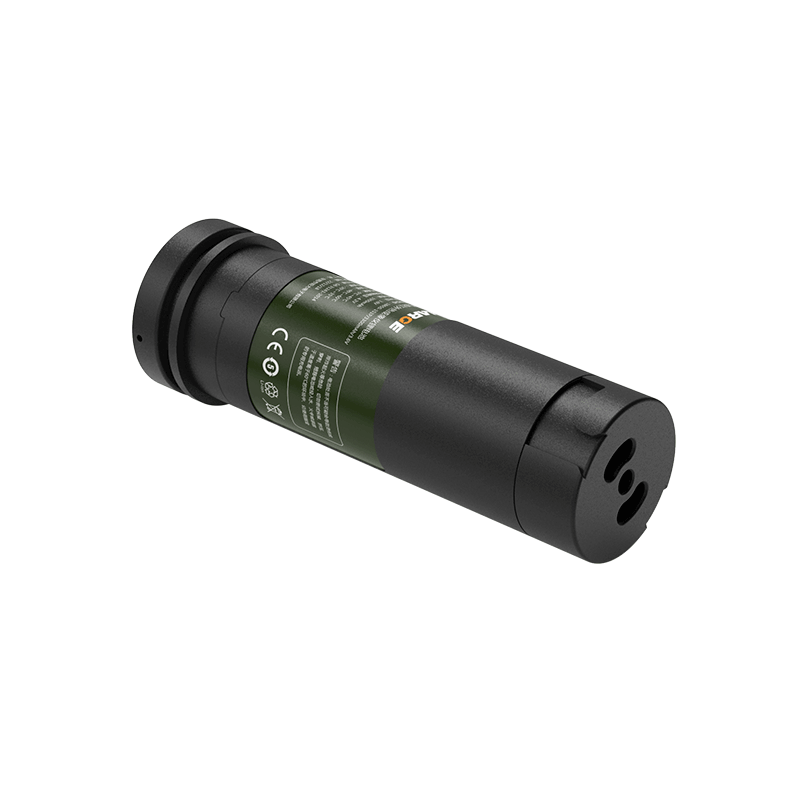

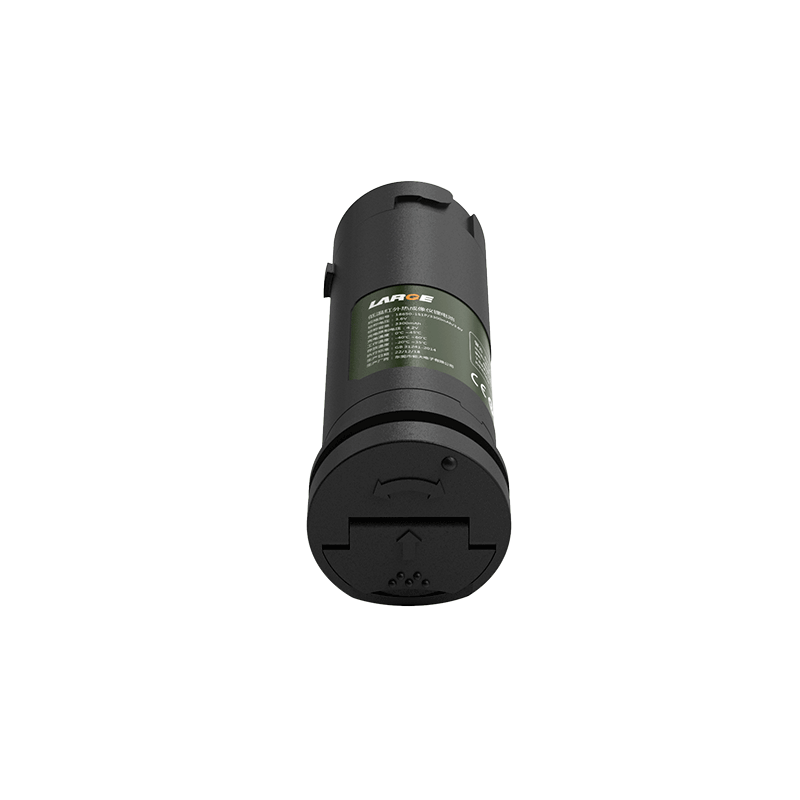

Custom Lithium ion Battery Pack
Product number: 36AQ517-01D
Battery model: 18650-3350mAh-3.6V
Battery specification: 18650-1S1P/3300mAh/3.6V
Product size: 74*21.7*24.3mm
Nominal voltage: 3.6V
Nominal capacity: 3300mAh
Finished internal resistance: ≤180mΩ
Charging voltage: 4.2V
Charging current: ≤1.5A
Discharge current: ≤2A
Discharge cut-off voltage: 2.8V
Battery weight: 80g
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: Engineering plastic ABS+PC
Output: Gold plated shrapnel
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc
Applications: Infrared thermal imaging equipment, portable infrared equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
