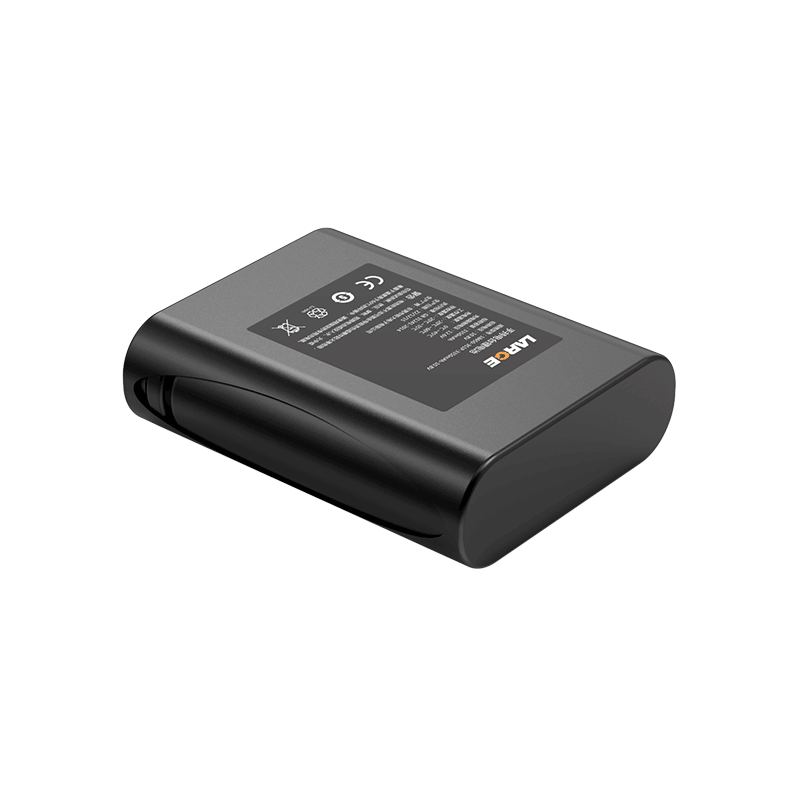

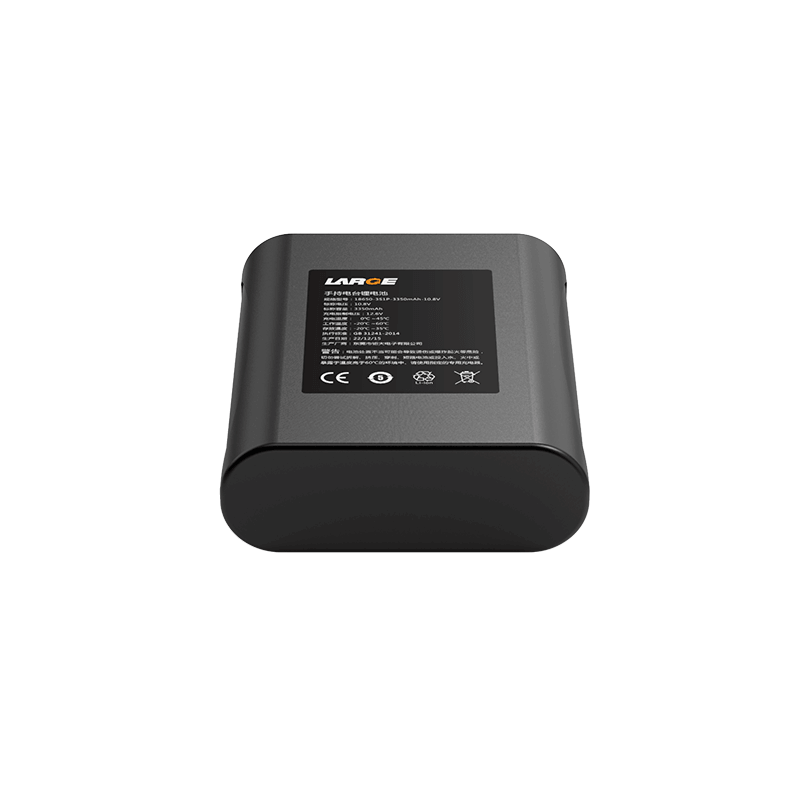

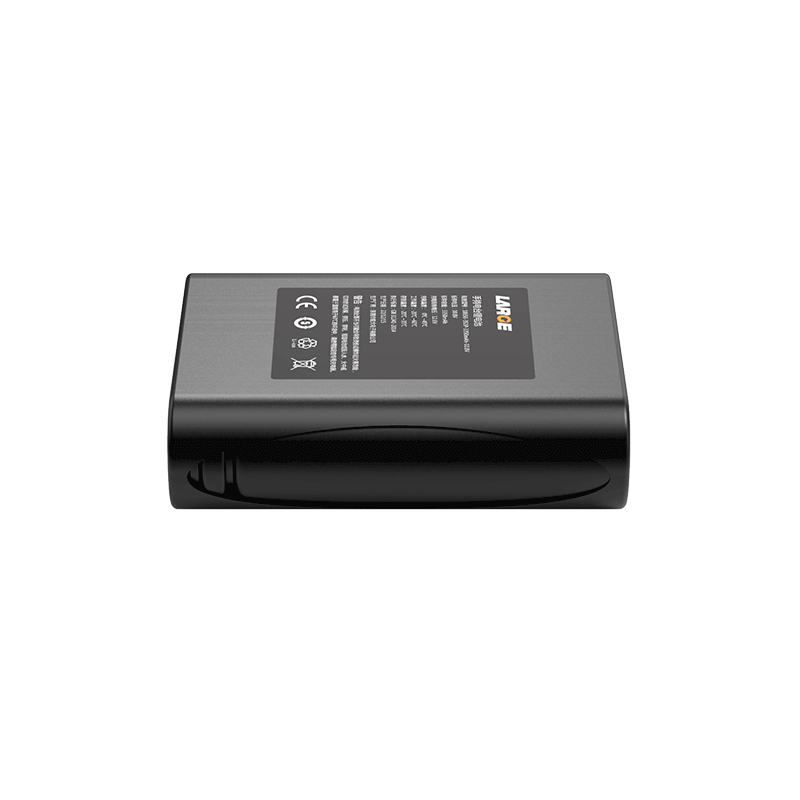

Custom Lithium ion Battery Pack
Product number: 08DQ0069-01
Battery model: 18650-3350mAh-3.6V
Battery specification: 18650-3S1P-3350mAh-10.8V
Product size: 71*56*19.5mm (Max)
Nominal voltage: 10.8V
Nominal capacity: 3350mAh
Finished internal resistance: ≤200mΩ
Charging voltage: 12.6V
Charging current: ≤1.6A
Discharge current: ≤3.0A
Discharge cut-off voltage: 7.5V
Battery weight: 150g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 ~ 35 ℃
Battery package: Blue PVC heat shrink film
Output mode: DC5521DC header
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.
Applications: Handheld radio, portable devices, handheld devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
