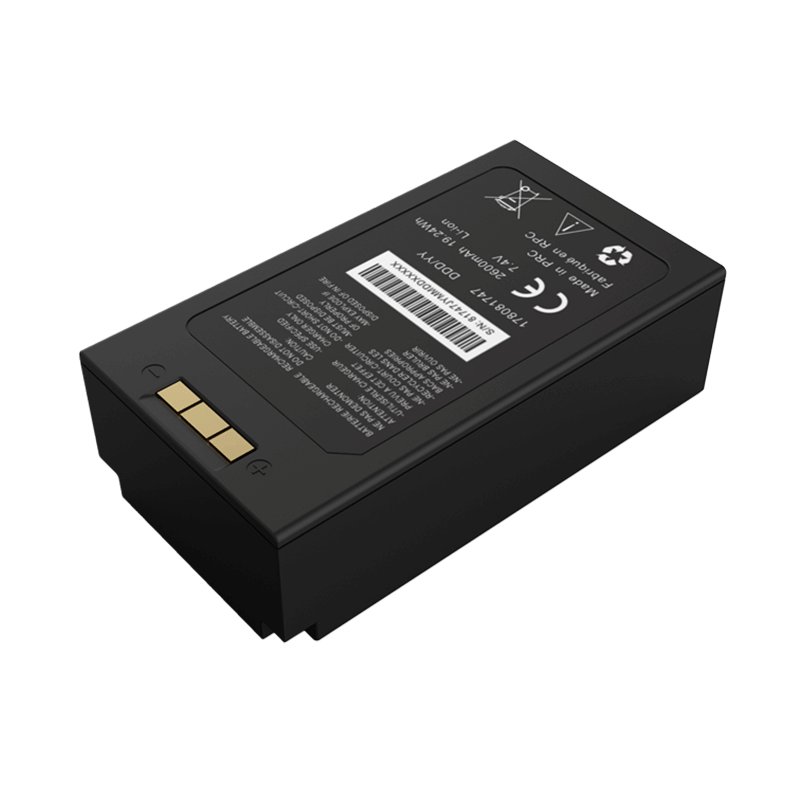

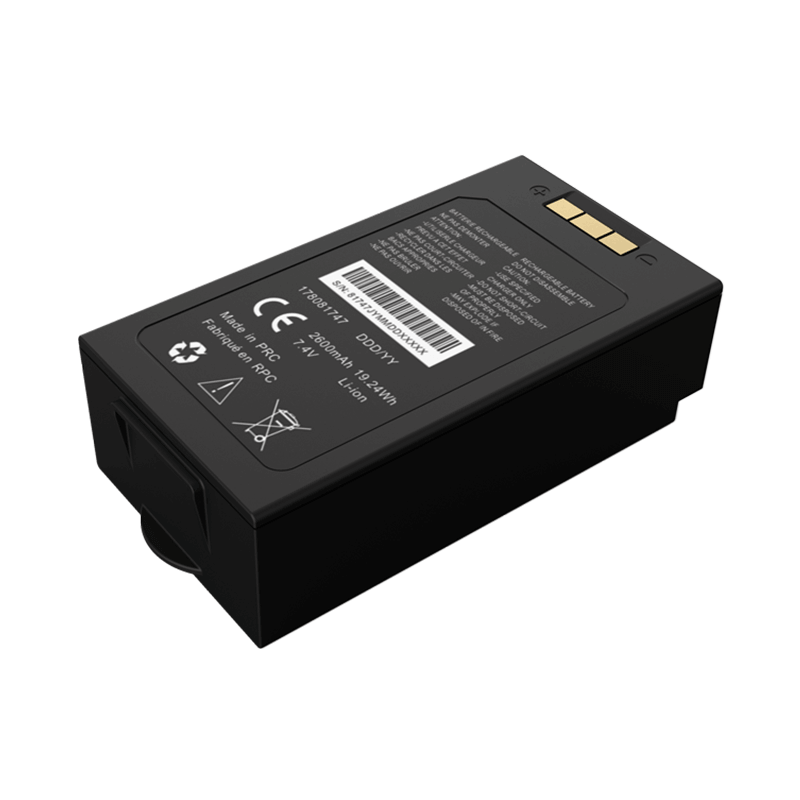

Custom Lithium ion Battery Pack
Product number: 22AQ131-02
Cell model：18650/2600mAh/3.7V
Battery specification: 18650/2S1P/2600mAh/7.4V
Nominal voltage：7.4V
Nominal capacity：2600mAh
Charging voltage: 8.4V
Charging current: ≤2600mA
Discharging current: ≤2600mA
Instant discharging current: 5.0A for 10S
End-off voltage: 6.0V
Internal resistance: ≤200m?
Battery weight: about 93g
Product dimension: (79*42*23)±0.2mm
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～35 ℃
Battery case: plastic frame
Lithium ion battery protection: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, equalization circuit, etc.
Application field: POS machine
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
