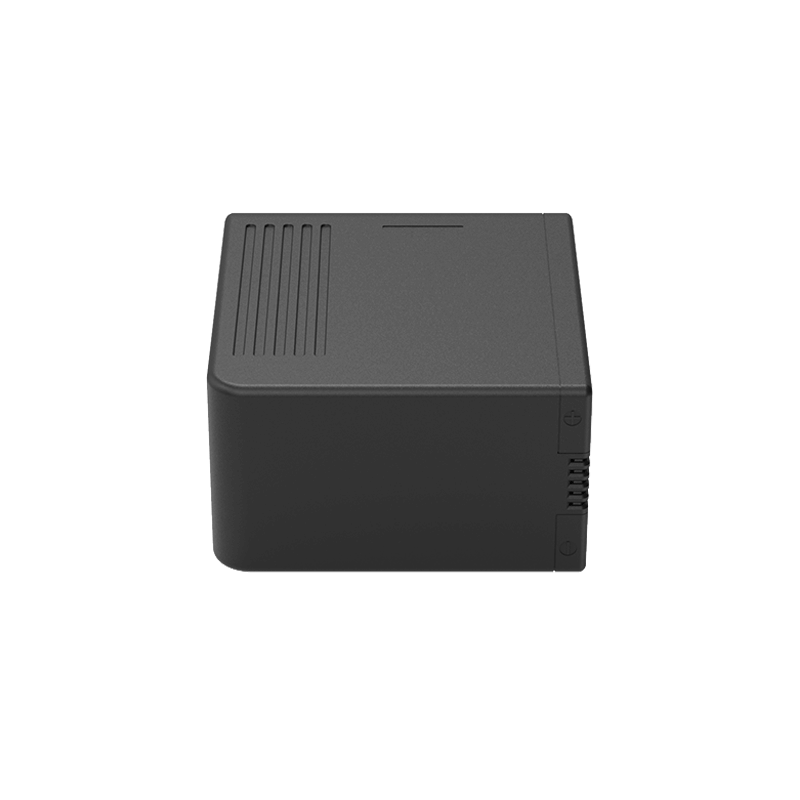

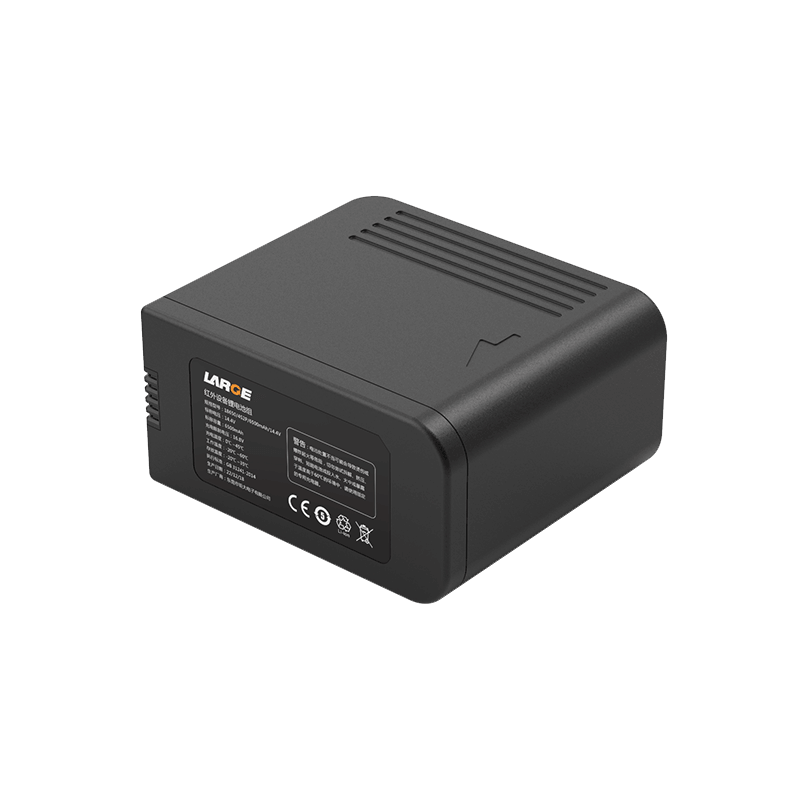

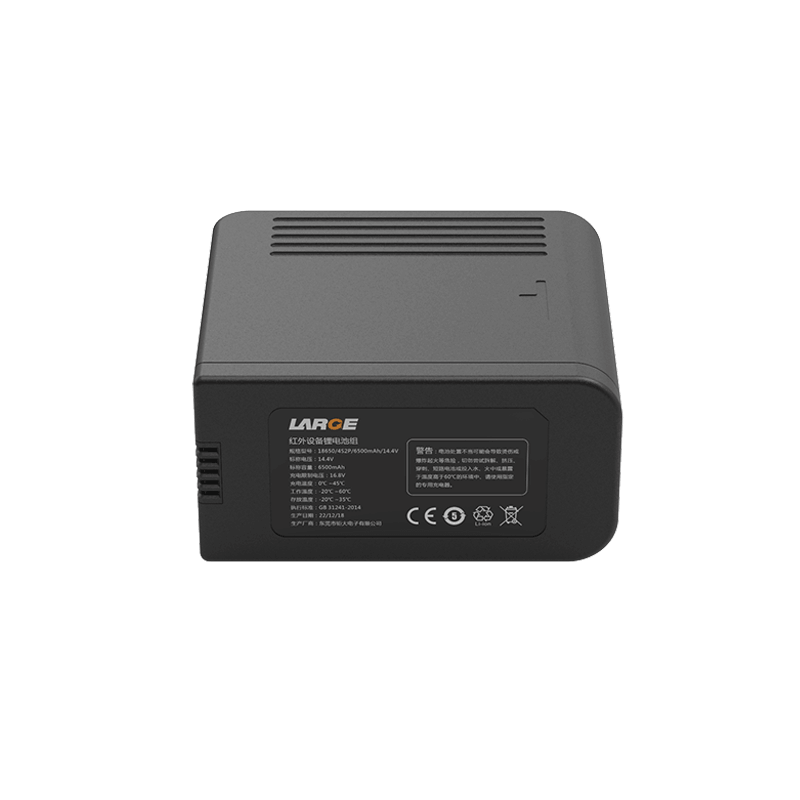

Custom Lithium ion Battery Pack
Product number: 01DQ0030-15
Battery model: 18650-3250mAh-3.6V
Battery specification: 18650-4S2P-6500mAh-14.4V
Product size: 75*84*43mm (Max)
Nominal voltage: 14.4V
Nominal capacity: 6500mAh
Finished internal resistance: ≤200mΩ
Charging voltage: 16.8V
Charging current: ≤3.0A
Discharge current: ≤3.0A
Discharge cut-off voltage: 11.2V
Battery weight: 450g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery case: ABS+PC
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.
Application: infrared equipment, industrial equipment
Product Features
1.ABS+PC shell increased the reliability and firmness of the battery;
2.Hardware output: Gold-plated shrapnel output increases electrical reliability;
3.Battery protection management: Use special lithium battery protection chip with high stability, high precision monitoring, accurate control,temperature protection and other functions,so as to maximize the elimination of safety hazards;
4.Data communication management: TI-SMBus software management chip, SMBus communication accurate data transmission, real-time battery status monitoring and control.
5.The battery pack has nice safety, good discharge performance and long cycle life;
6.The battery pack has long cycle life of, in line with low carbon, energy saving, environmental protection value concept.
