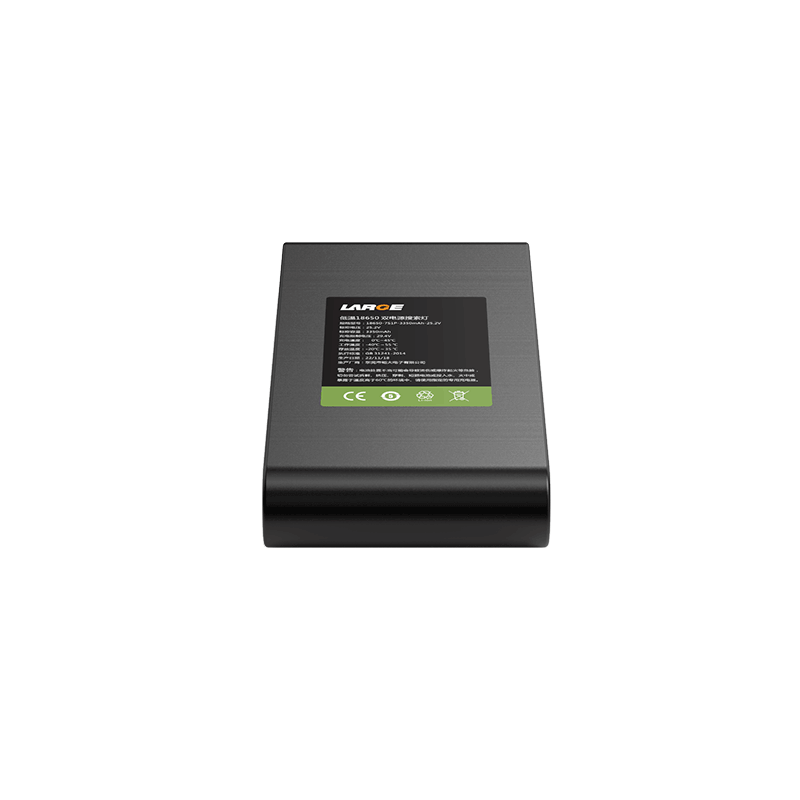

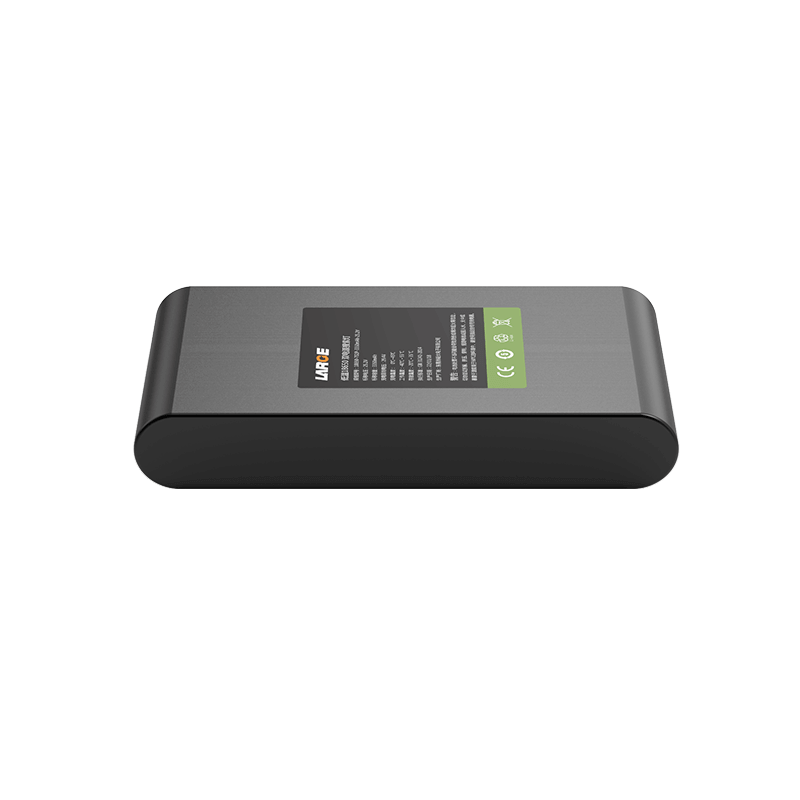

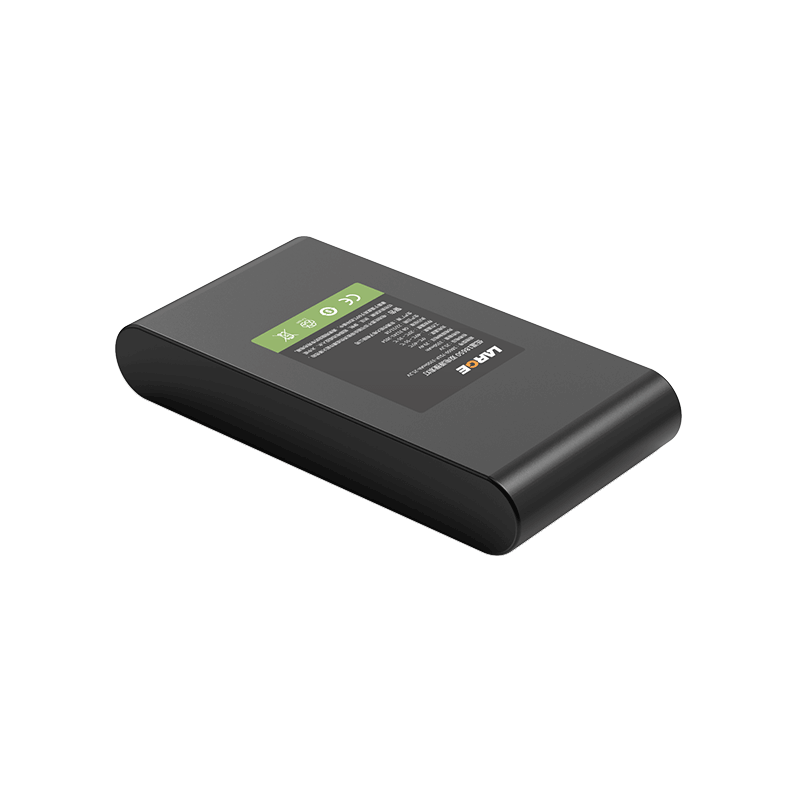

-40℃ Low Temperature 18650 25.2V 3350mAh Dual Power Search Light

Customization | Free Battery Solution

Product Detail

Product number: 35AQ322-03

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-7S1P-3350mAh-25.2V

Product size: 130*68*26mm (Max)

Nominal voltage: 25.2V

Nominal capacity: 3350mAh

Finished internal resistance: ≤220mΩ

Charging voltage: 29.4V

Charging current: ≤3.0A

Discharge current: ≤6.7A

Discharge cut-off voltage: 17.5V

Battery weight: 400g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 55℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Applications: Lighting equipment, dual power search lights, high-power lighting equipment

Product Features

1.Blue PVC heat shrink film package is simple and reliable, easy to install

2.The epoxy plate is fixed on all sides, and the long battery is easy to assemble.

3.Battery protection management: imported Ricoh protection chip with high stability, high precision monitoring, precise control minimize the potential security risks.

4.The battery pack is safe and has good low-temperature discharge performance. It can discharge at -40℃ and discharge capacity can reach more than 70%.

5.The battery pack has nice safety, good discharge performanceand long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
