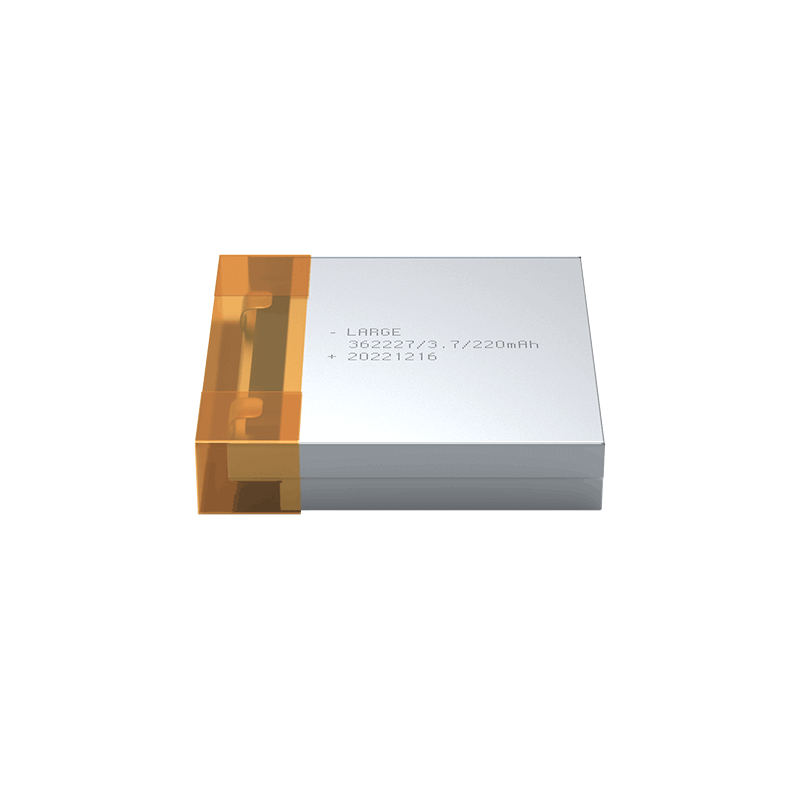

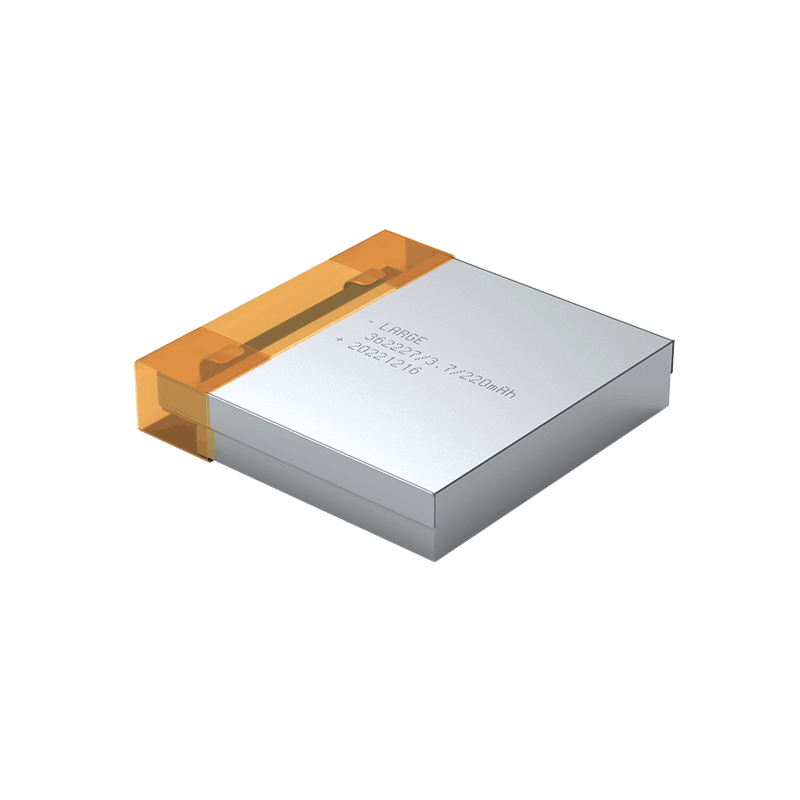

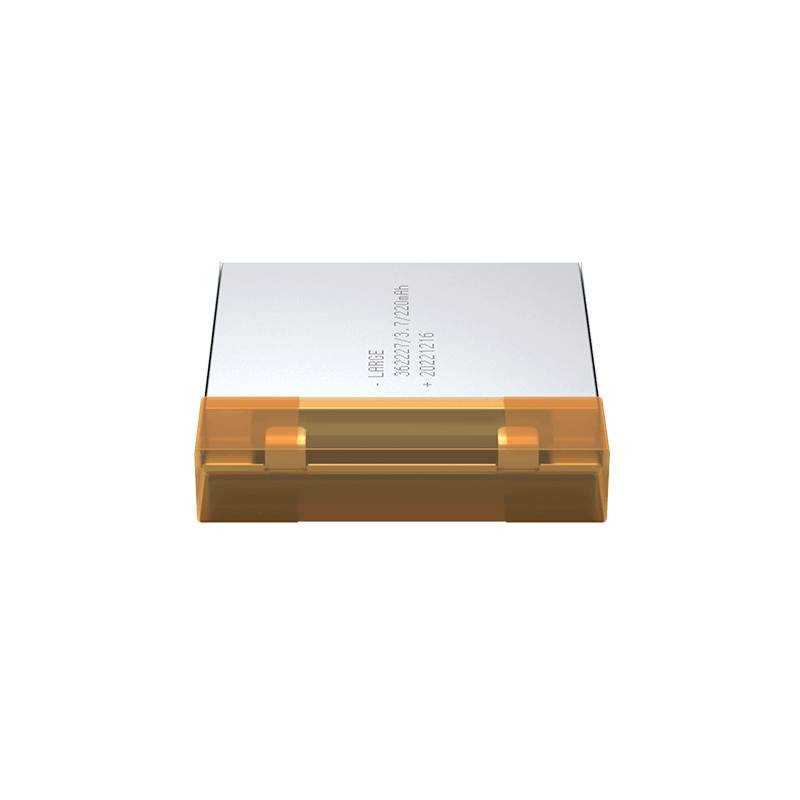

Custom Lithium ion Battery Pack
Product number: 36AQ517-27
Battery model: 362227-220mAh-3.7V
Battery specification: 362227-1S1P-220mAh-3.7V
Product size: 30*22.5*4.3mm (Max)
Nominal voltage: 3.7V
Nominal capacity: 220mAh
Finished internal resistance: ≤300mΩ
Charging voltage: 4.2V
Charging current: ≤0.1A
Discharge current: ≤0.2A
Discharge cut-off voltage: 3.0V
Battery weight: 10g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: polymer simple package
Output mode: JST special plug
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc
Applications: infrared night vision equipment, portable test equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
