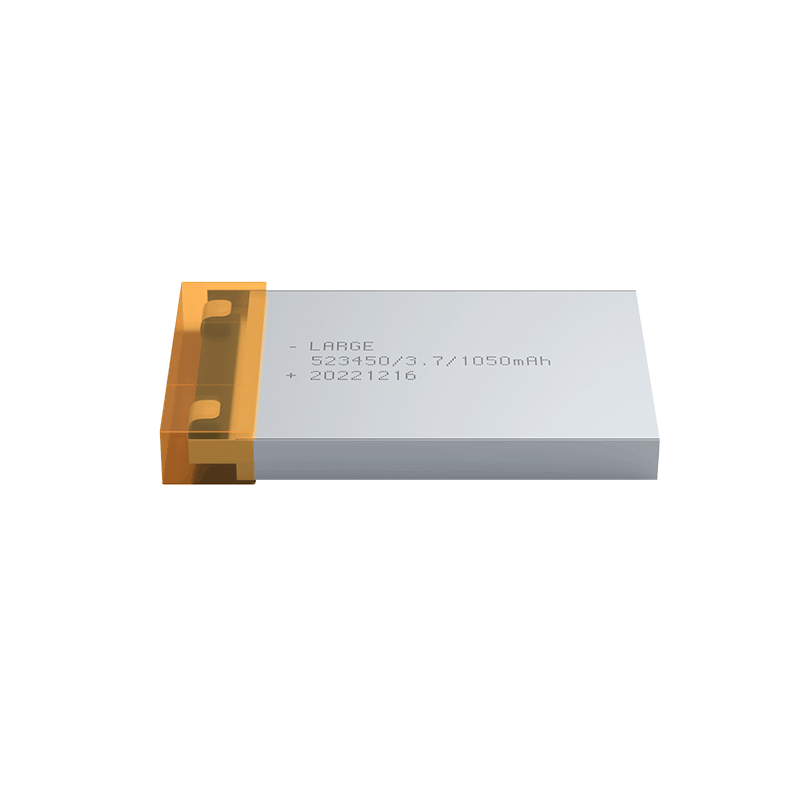

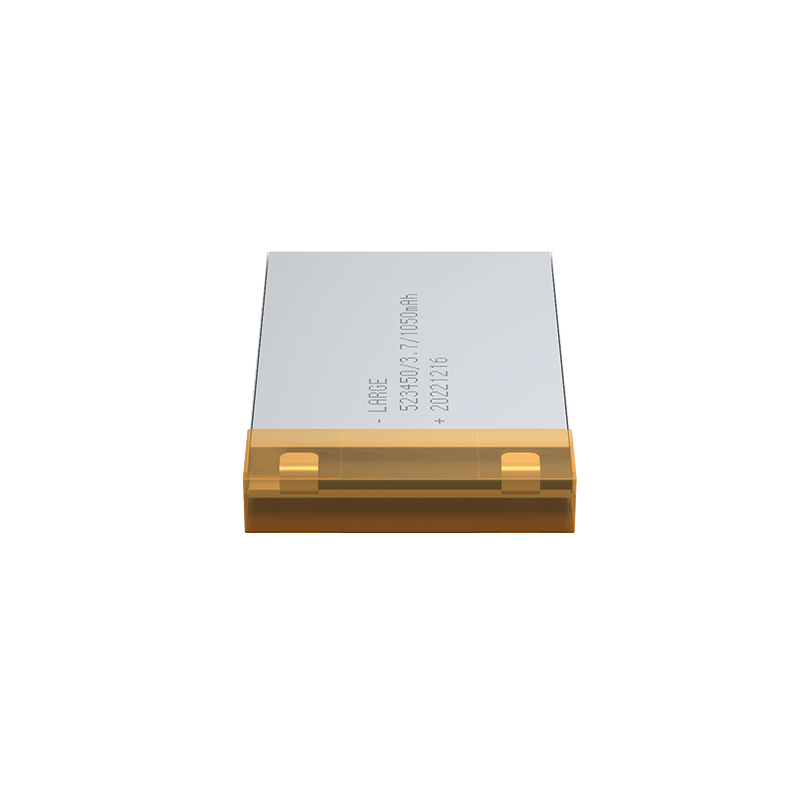

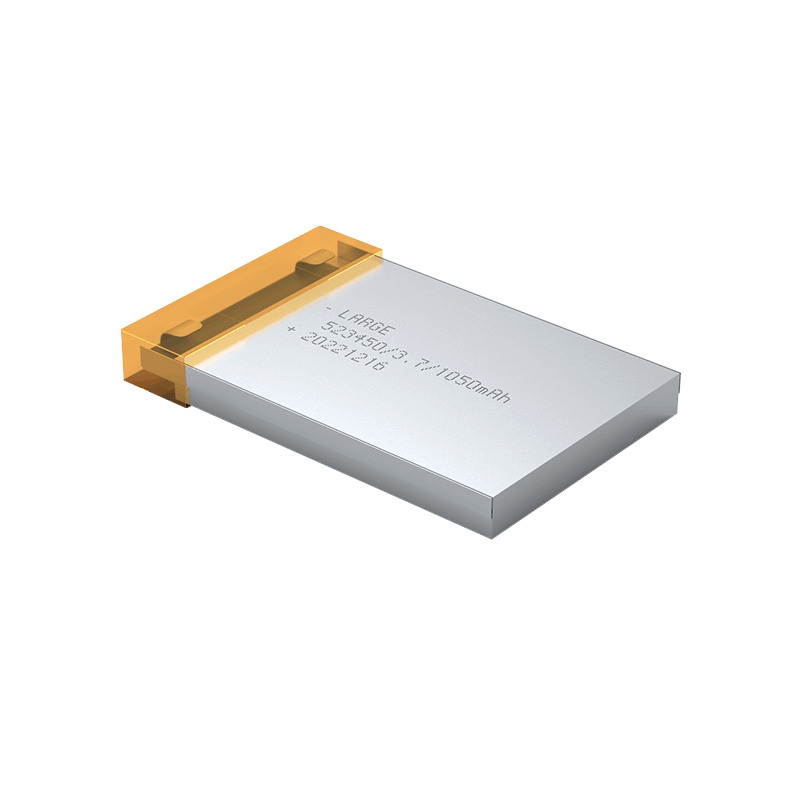

Custom Lithium ion Battery Pack
Product number: 08AQ980-35
Cell model: 523450-1050mAh-3.7V
Battery specification: 523450-1S1P-1050mAh-3.7V
Product size: 53*34.5*5.7mm (Max)
Nominal voltage: 3.7V
Nominal capacity: 1050mAh
Internal resistance of finished product: ≤160mΩ
Charging voltage: 4.2V
Charging current: ≤1.0A
Discharge current: ≤1.0A
Discharge cut-off voltage: 3.0V
Battery weight: 20g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery packaging: polymer simple package
Output mode: national standard wire
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Applications: POS machines, handheld devices, portable devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
