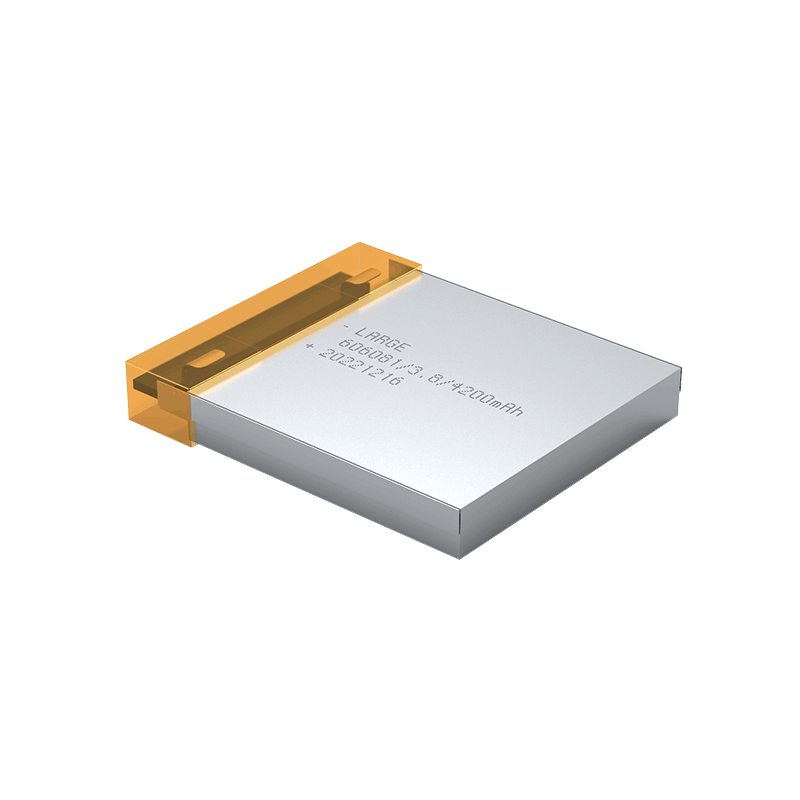

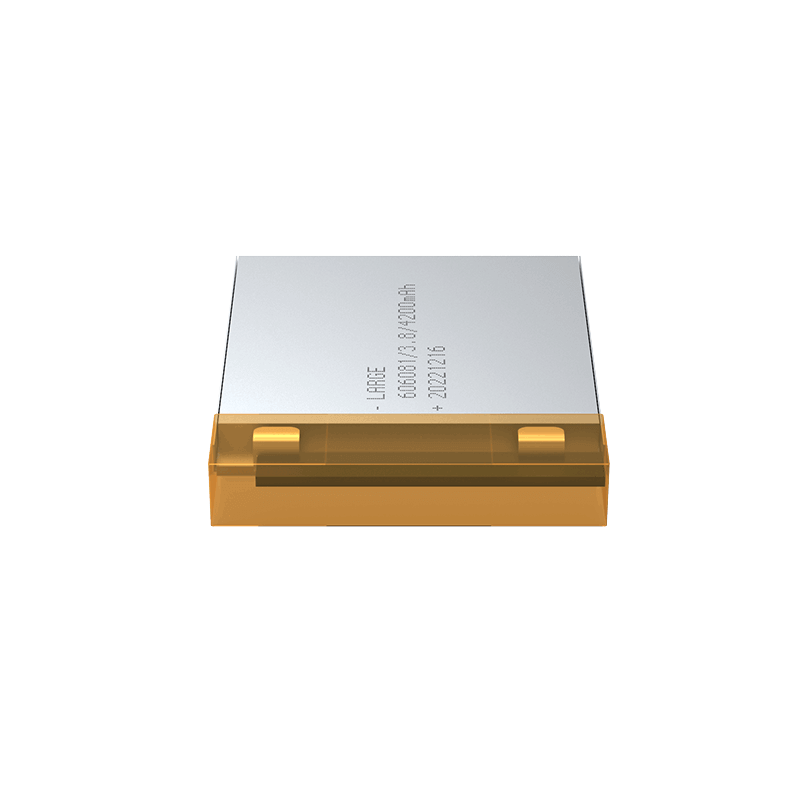

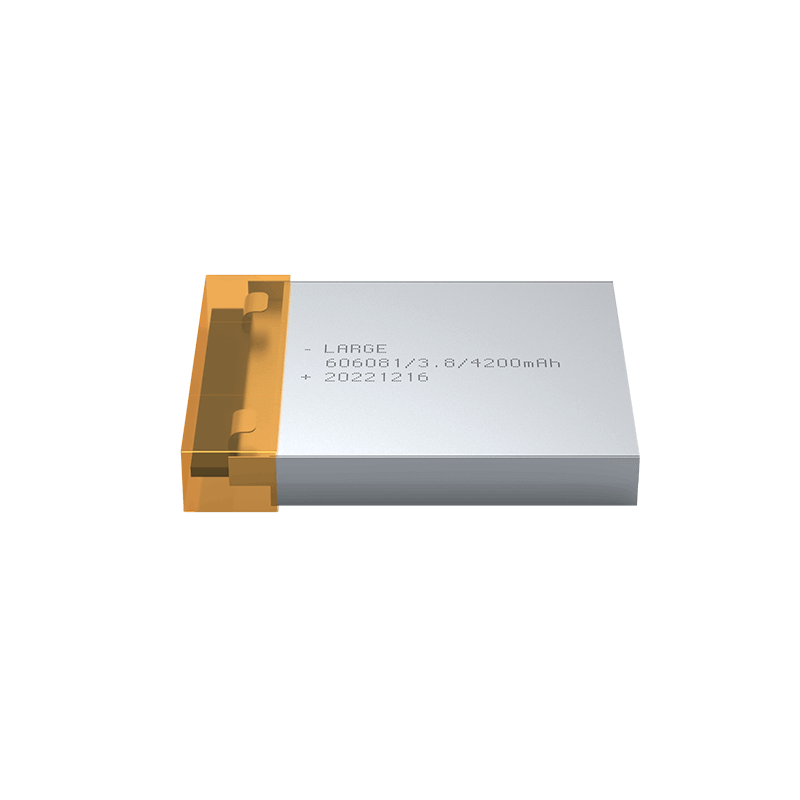

Custom Lithium ion Battery Pack
Product number: 04BQ118-45
Cell type: 606081-4200mAh-3.8V
Battery specification: 606081-1S1P-4200mAh-3.8V
Product size: 85*60.5*6.5mm
Nominal voltage: 3.8V
Nominal capacity: 4200mAh
Finished internal resistance: ≤180mΩ
Charging voltage: 4.35V
Charging current: ≤2.0A
Discharge current: ≤2.0A
Discharge cut-off voltage: 3.0V
Battery weight: 50g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 ~ 35 ℃
Battery package: polymer simple package
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: multi-function camera lighting device, portable lighting device, mobile lighting device
Product Features
1.Simple package is simple and reliable, easy to install;
2.Battery pack adopts special ACi special connector for good stability and good contact performance;
3.Battery protection management: Use special lithium battery protection chip, with high stability, high precision monitoring, accurate control,temperature NTC sensing and other functions to minimize safety hazards;
4. The battery pack is safe with high discharge rate, and its discharge capacity of more than 90%;
5.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
