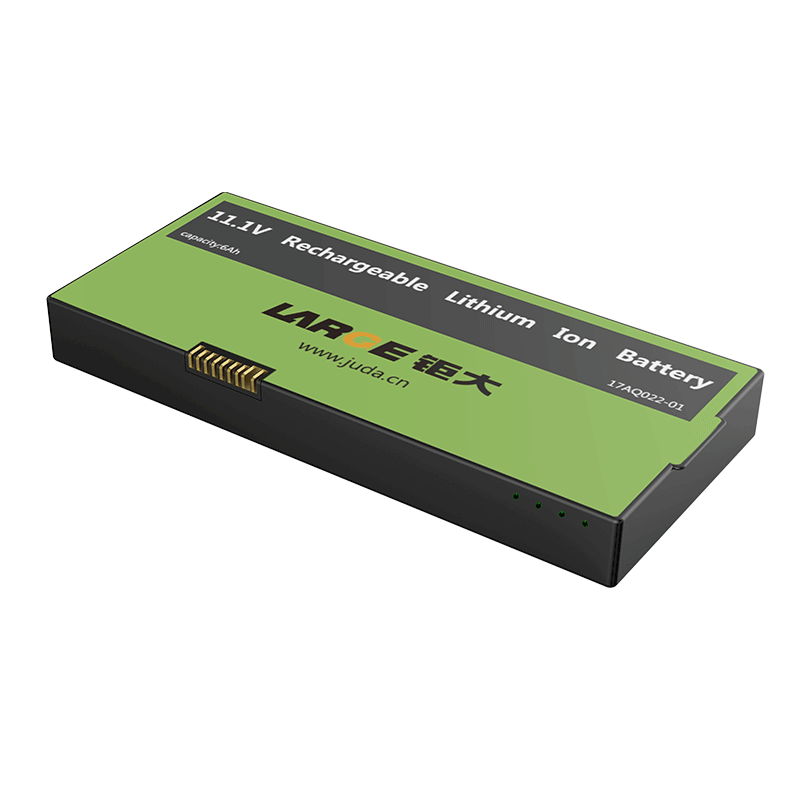

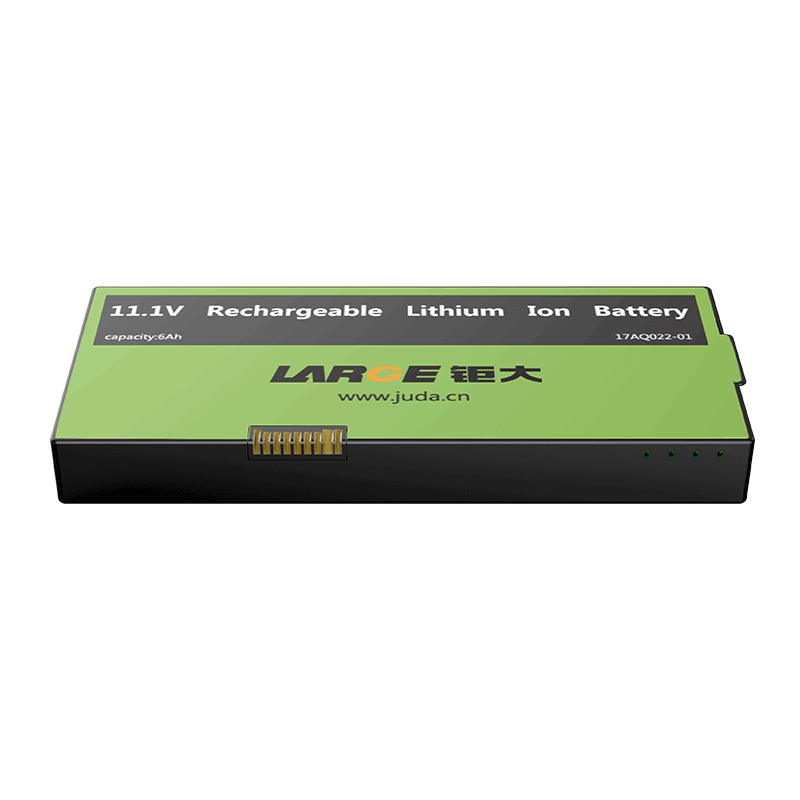

Custom Lithium ion Battery Pack
Product number: 17AQ022-01
Battery specification: 18650-3S3P/11.1V/6000mAh
Nominal voltage：11.1V
Nominal capacity：6000mAh
Charging voltage: 12.6V
Charging current: ≤3A
Discharging current: 3A
Instant discharging current: 4A
End-off voltage: 7.5V
Internal resistance: ≤150mΩ
Battery weight: 450g
Product dimension: 173×77×20（Max）
Charging temperature：0～45℃
Discharging temperature: -40～60℃
Storage temperature: -20～20℃
Battery case: fireproofing PC
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.
Application field: electromagnetic spectrometer
Product features
1. Shock-resistant and waterproof: fill in the shock-resistant structure inside the fireproofing PC housing to satisfy the requirements of good security and high reliability.
2. Operate at low temperature: adopt special low temperature battery and make sure to operate at -40℃.
3. Reliable connection: apply gold plating plug-in connector, which is efficient, safe and reliable.
4. Safety management of the battery: it has temperature probe which can send the temperature information to the upper computer.
5. The battery has I2C communication which can send the parameters of voltage, current, capacity, etc. to the upper computer.
6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
