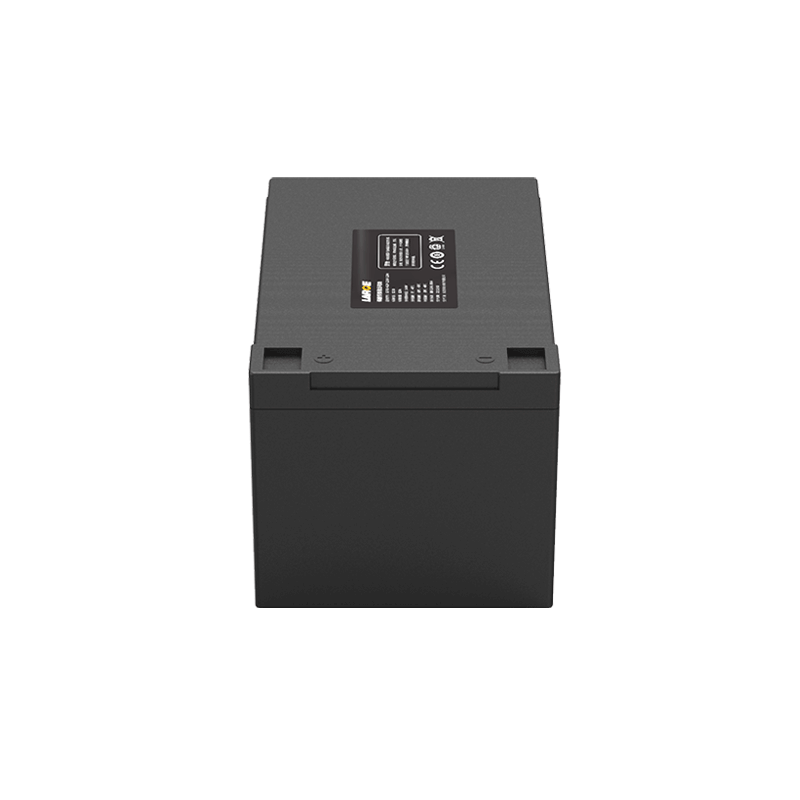

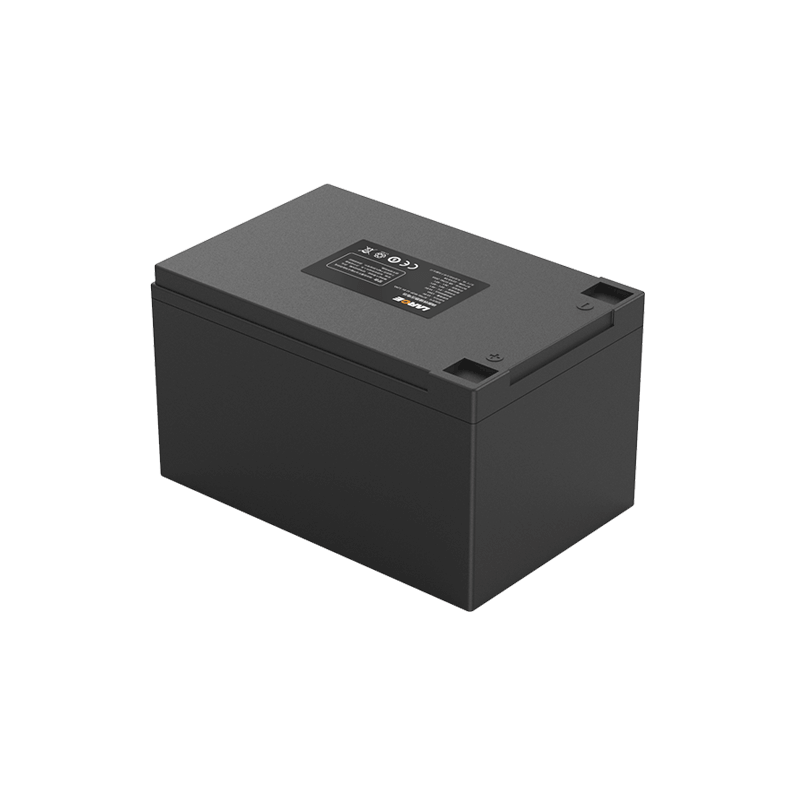

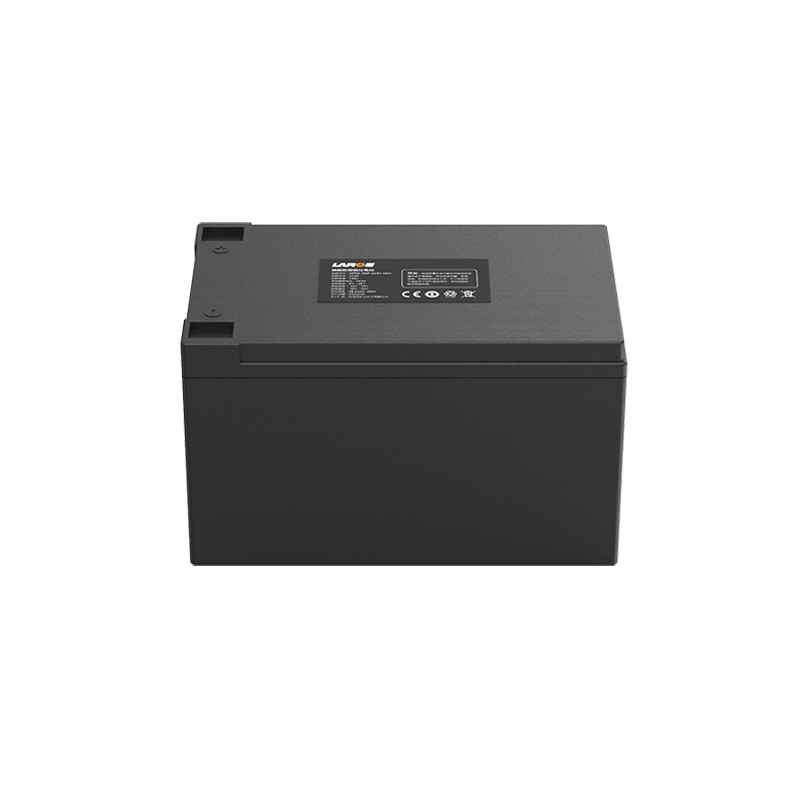

Custom Lithium ion Battery Pack
Product number: 01WQ0078-01
Battery model: 32700-3.2V-6000mAh
Battery specifications: 32700-4S2P-12.8V-12Ah
Product size: 151×98×95mm
Nominal voltage: 12.8V
Nominal capacity: 12Ah
Charging voltage: 14.6V
Charging current: 5.5A
Discharge current: 12V/3.5A
Discharge cut-off voltage: 9.2V
Finished internal resistance: ≤150mΩ
Battery weight: 1.35Kg
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 55℃
Storage temperature: -20~+45℃ (< 1 month) -20~ 35℃(< 3 months); -20~+25℃ (< 6 months)
Battery package: plastic case
Output mode: national standard UL wire
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: Equipment battery
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
