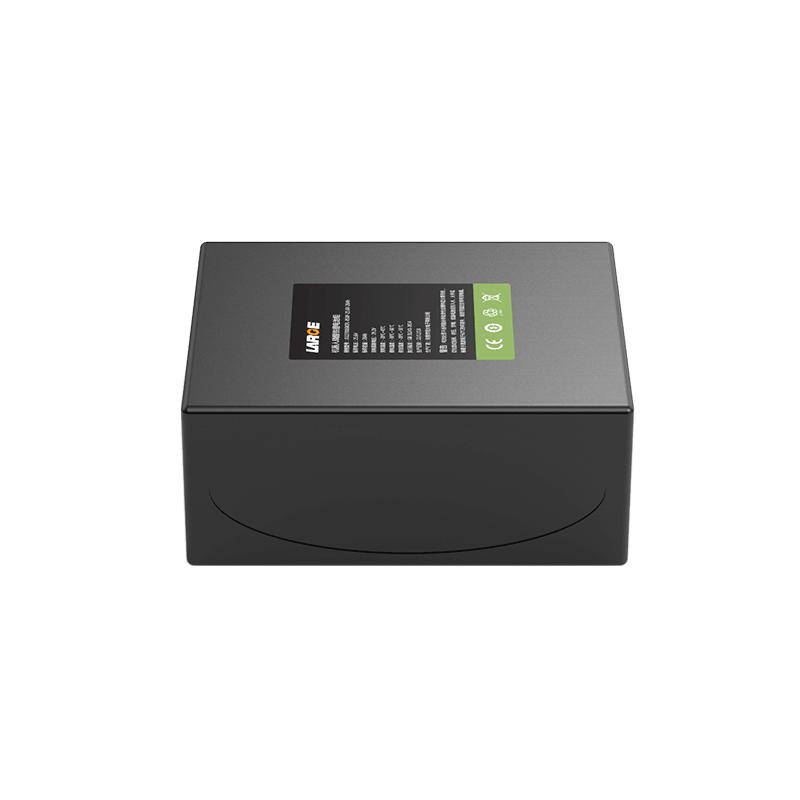

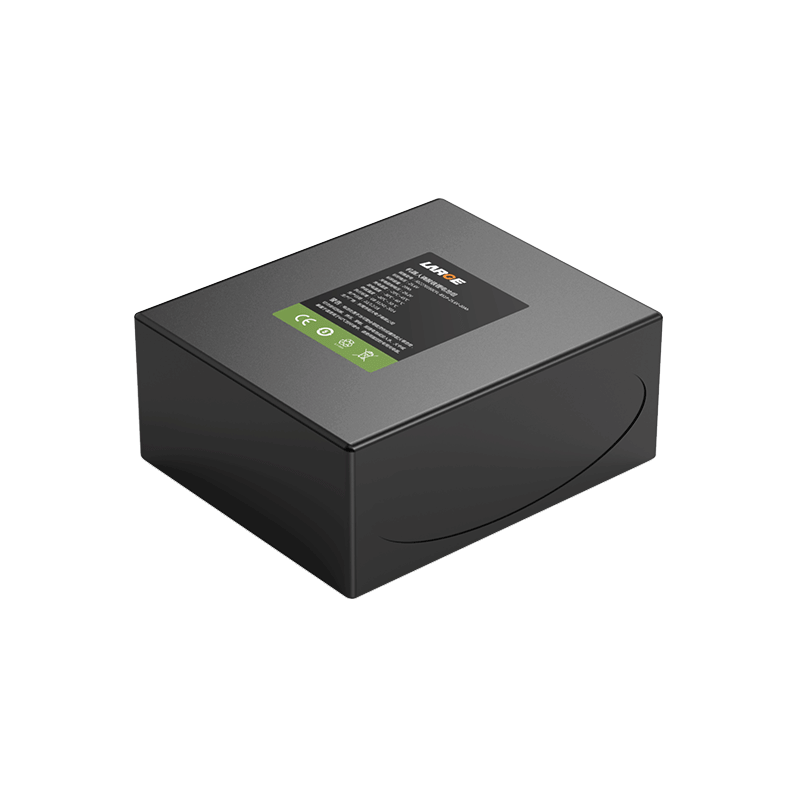

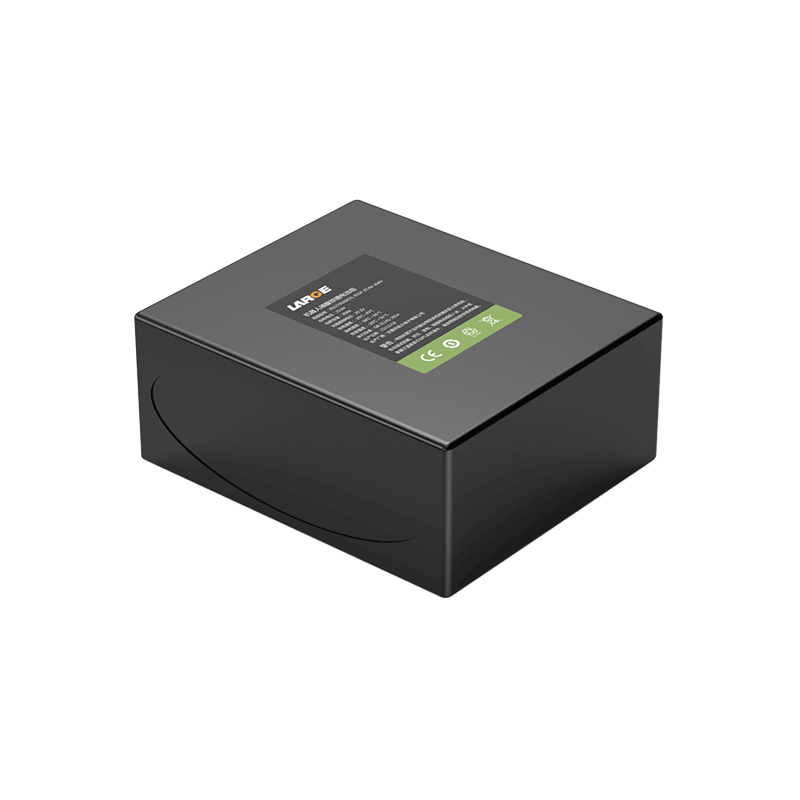

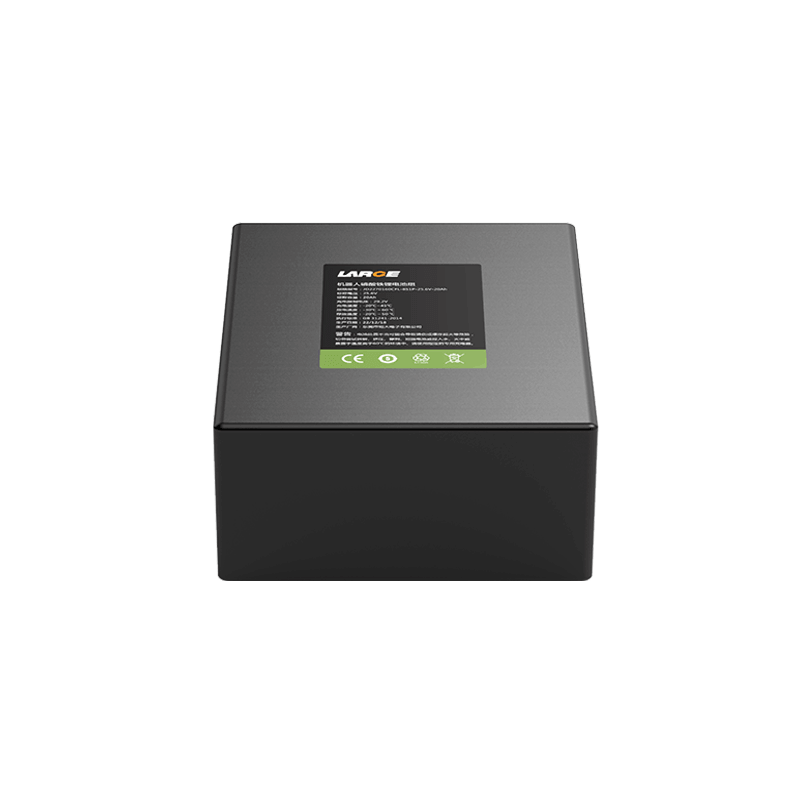

Custom Lithium ion Battery Pack
Product number: JDM-2078-01
Battery model: JD2270160CFL(3.2V-20Ah)
Battery specifications: JD2270160CFL-8S1P-25.6V-20Ah
Product size: 204*173*89mm
Nominal voltage: 25.6V
Nominal capacity: 20Ah
Charging voltage: 29.2V
Charging current: 10A
Discharge current: 15A
Discharge cut-off voltage: 16V
Finished internal resistance: ≤180mΩ
Battery weight: 4.8Kg
Charging temperature: -20°C~+45 °C
Discharge temperature: -30°C~+60 °C
Storage temperature: -20~+50℃ (less than 1 month); -20 ~ 40 ℃(less than 3 months); -20~+20℃ (less than 6 months)
Battery package: PVC heat seal process
Output mode: national standard UL wire
Communication management: RS485 communication protocol
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.
Application: Robot battery
