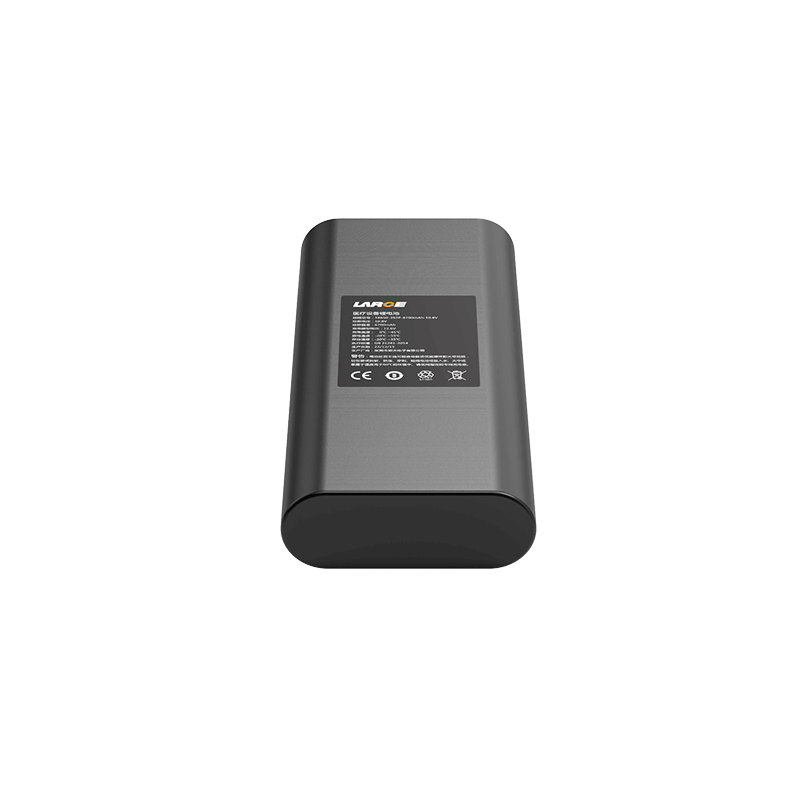

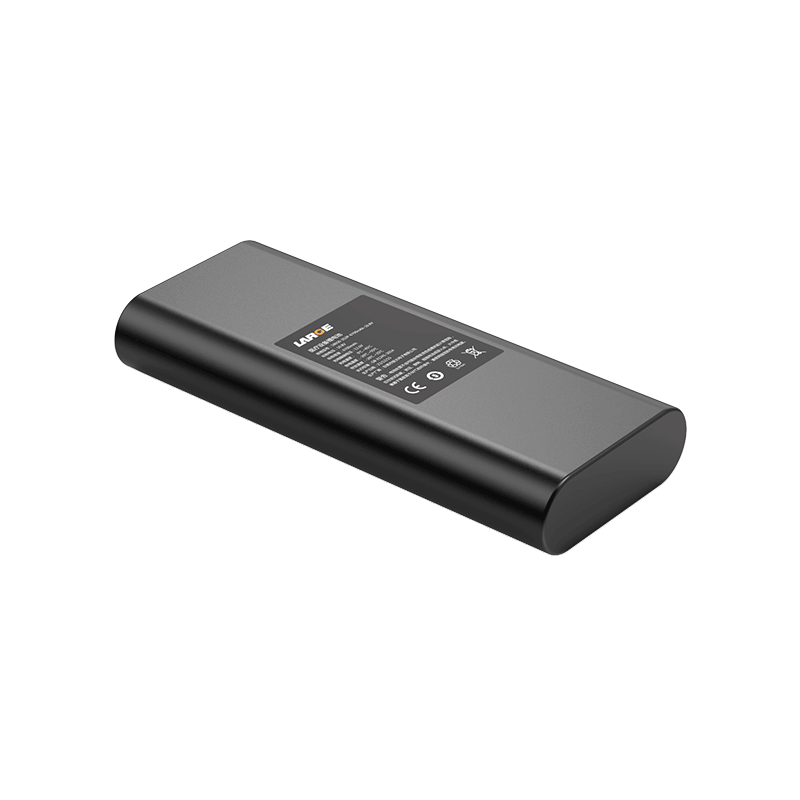

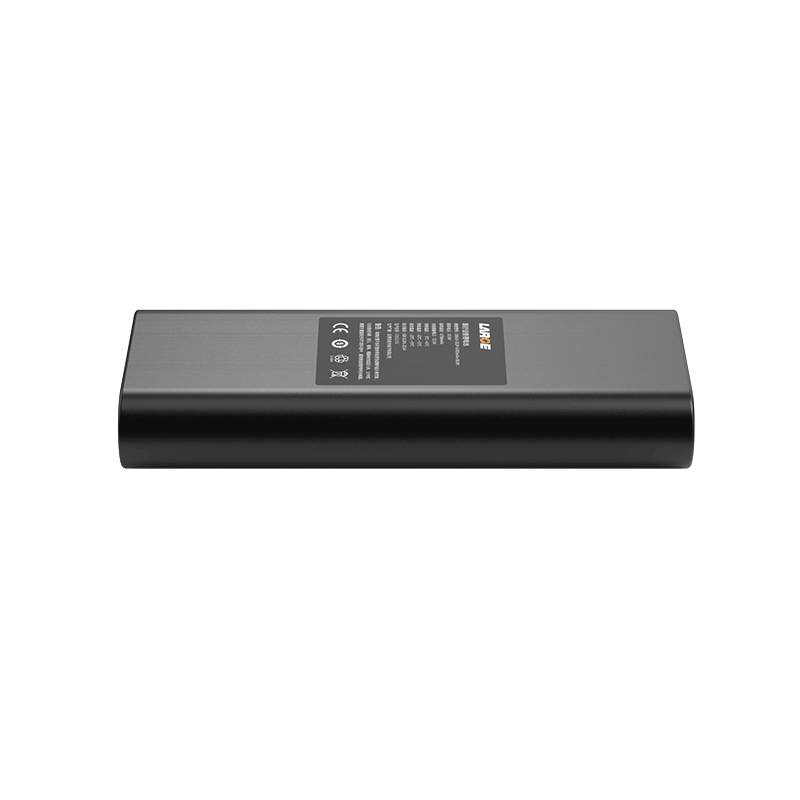

Product number: 40AQ025-01
Battery model: 18650-3350mAh-3.6V
Battery specification: 18650-3S2P-6700mAh-10.8V
Nominal voltage: 10.8V
Nominal capacity: 6700mAh
Charging voltage: 12.6V
Charging current: ≤3350mA
Discharge current: 1280mA
Maximum discharge current: 3350mA
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤180mΩ
Battery weight: 350g
Product size: 138*58*21mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ +55℃
Storage temperature: -20 ~ +35℃
Battery package: soft package
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection, ESD protection, etc.
Application: medical tablet, handheld device, portable device, security
Product Features:
1.Maximum sustainable 6.7A discharge.
2.Adopt sophisticated solution, mass production experience, accurate data transmission, security protection measures to eliminate security risks.
3.High capacity 18650 ultra-reliable and safe cell.
4.The battery pack has long cycle life, in line with the value concept of low carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
