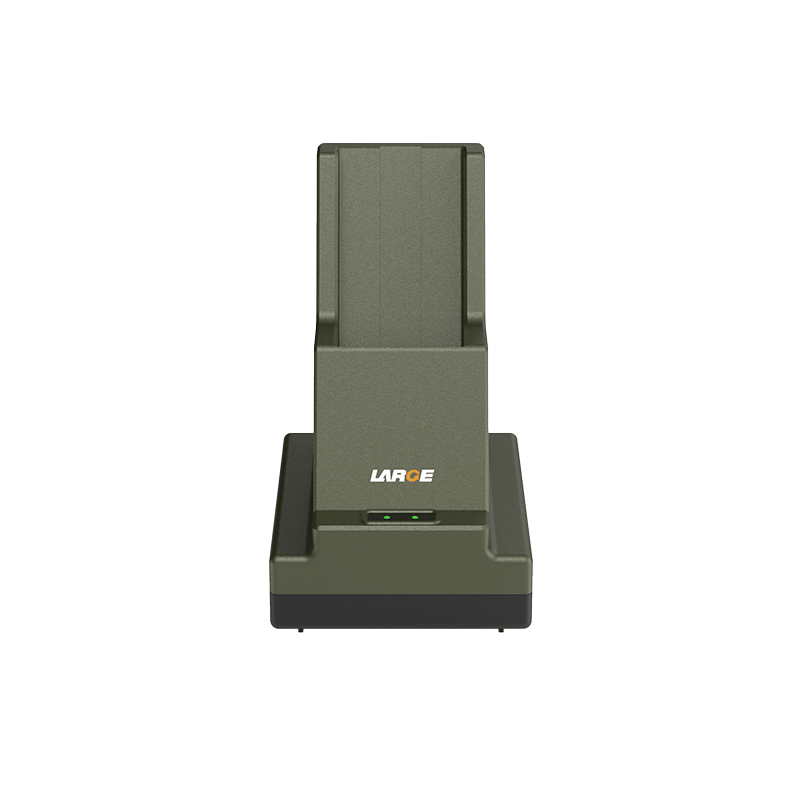

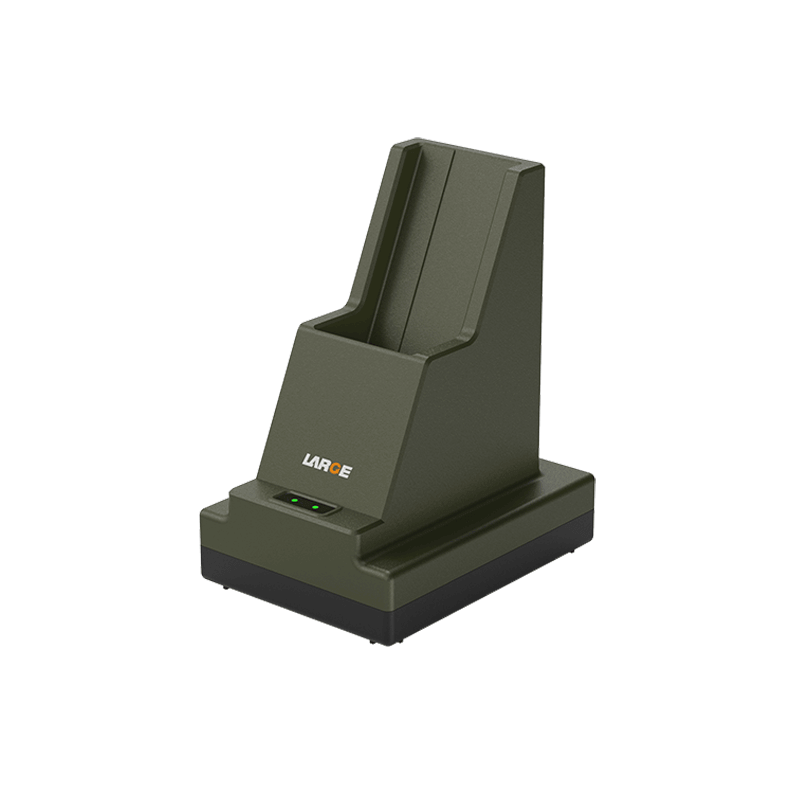

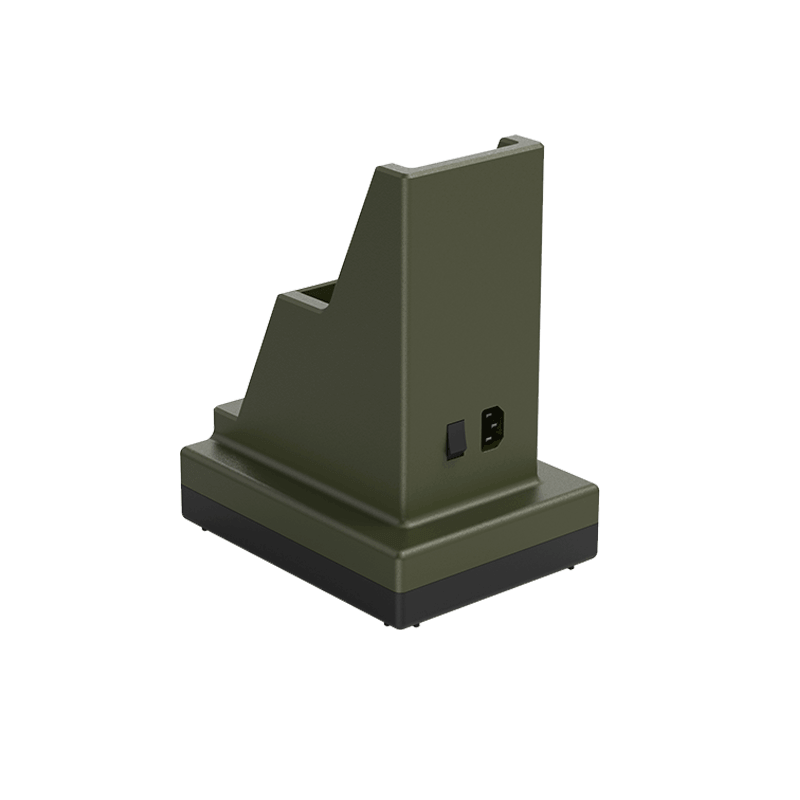

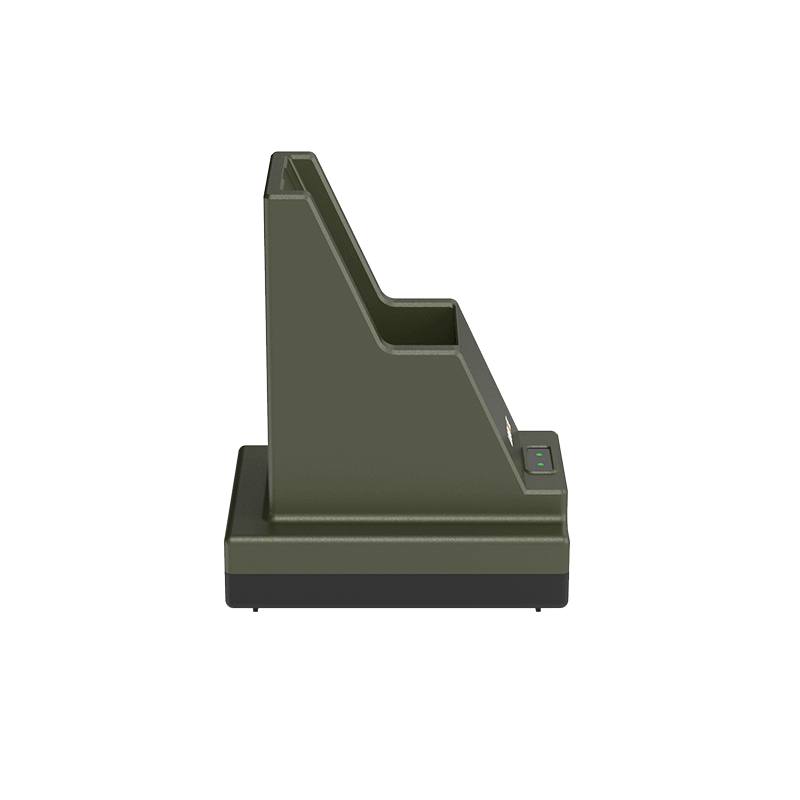

Product model: 00AQ-KS007-01C;
Product application: Suitable for 4 series ternary lithium-ion battery charging;
Input voltage: Wide voltage 100-240Vac, 50-60Hz;
Output voltage: 16.75±0.05V;
Output current: 4.4A max;
Efficiency requirements: > 85%;
Protection requirements: input fuse over current protection, output over voltage, under voltage, over current, short circuit, over temperature protection;
Product size: 150*200*240mm;
Input interface: GB 3-pin socket, supporting 1.5m GB 3-plug power cord;
Output interface: special interface *3;
Product weight: about 1300g;
Operating temperature: -20~+45℃;
Storage temperature: -40~+85℃;
Charging status: power indicator, charging status indicator (charging red/full green);
Heat dissipation: plastic shell, natural cooling heat dissipation;
Product Features:
1.The built-in microprocessor of the charger can meet the multi-stage charging mode such as pre-charging, constant current charging, constant voltage charging, stop charging, etc.
2.It has the characteristics of stable charging, high efficiency, safety and reliability, etc.
3.It is suitable for lithium-ion battery charging and maintenance.
