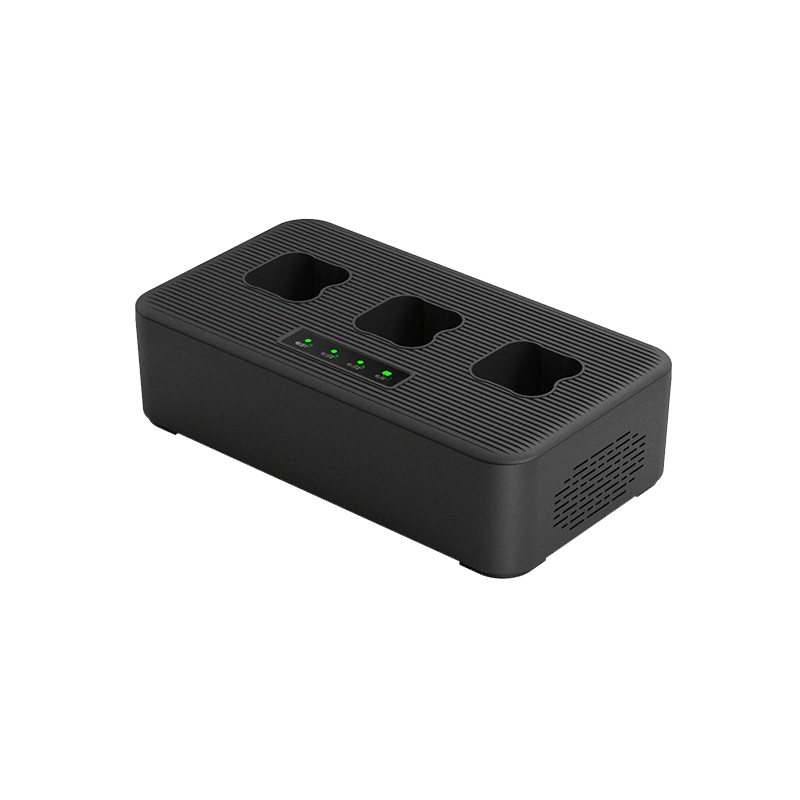

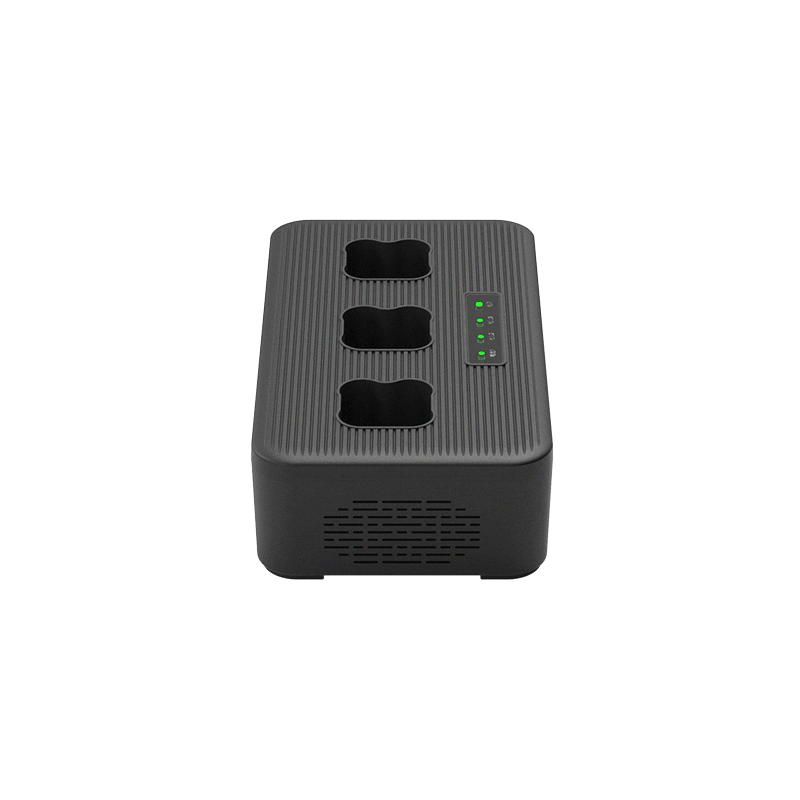

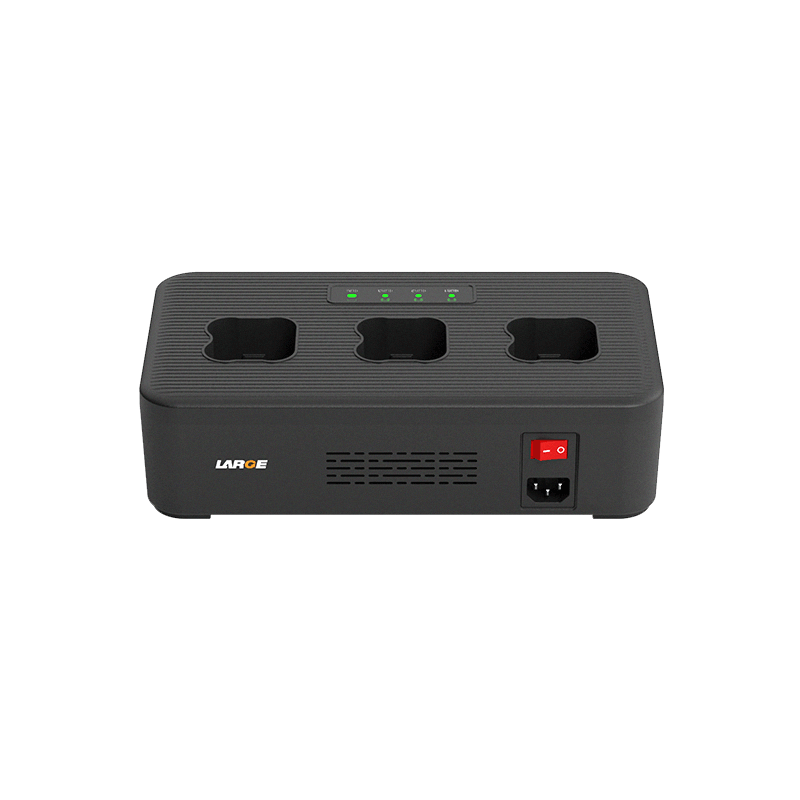

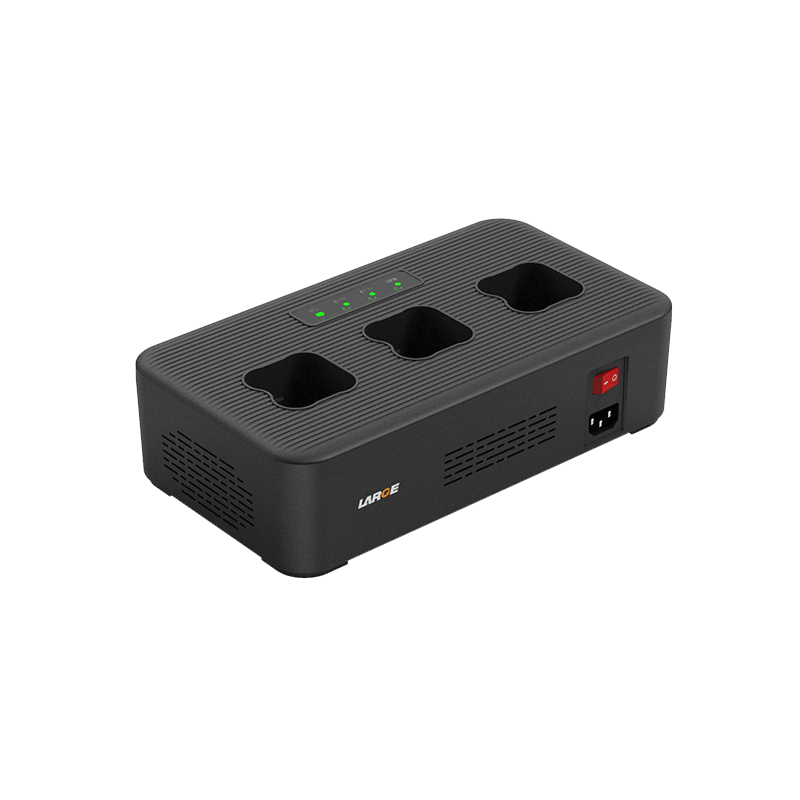

AC-DC 37.8V 1.5A Lithium-ion Battery Charger

Customization | Free Battery Solution

Product Detail

Product model: 40AQ026-01C;

Product application: Suitable for 9 series ternary lithium-ion battery charging;

Input voltage: wide voltage 100-240Vac, 50-60Hz;

Output voltage: 37.8V-1.5A*3;

Output current: 1.5A (three channels);

Efficiency requirements: > 80%;

Protection requirements: input fuse over current protection, output over voltage, under voltage, over current, short circuit, over temperature protection;

Product size: L=300mm*W=167mm*H=77mm;

Input interface: GB 3-pin socket, supporting 1.5m GB 3-plug power cord;

Output interface: special interface *3;

Product weight: about 1300g;

Operating temperature: -20~+45℃;

Storage temperature: -40~+85℃;

Charging status: power indicator, charging status indicator (red for charging /green for fully charge);

Heat dissipation mode: plastic shell, natural air cooling;

Product Features:

1.The built-in microprocessor of the charger can meet the multi-stage charging mode such as pre-charging, constant current charging, constant voltage charging, stop charging, etc.

2.It has the characteristics of stable charging, high efficiency, safety and reliability, etc.

3.It is suitable for lithium-ion battery charging and maintenance.
