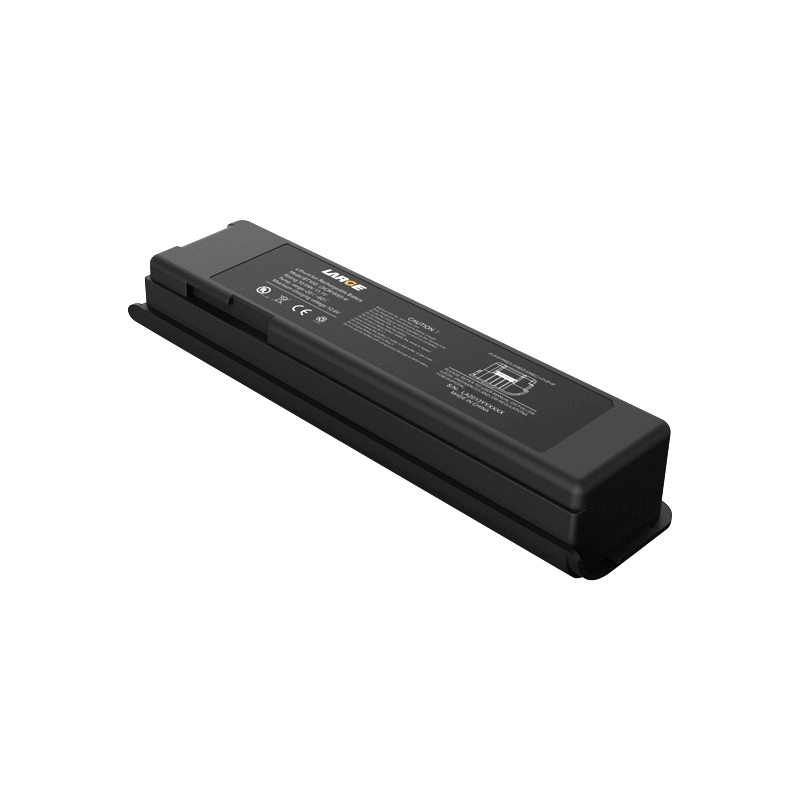

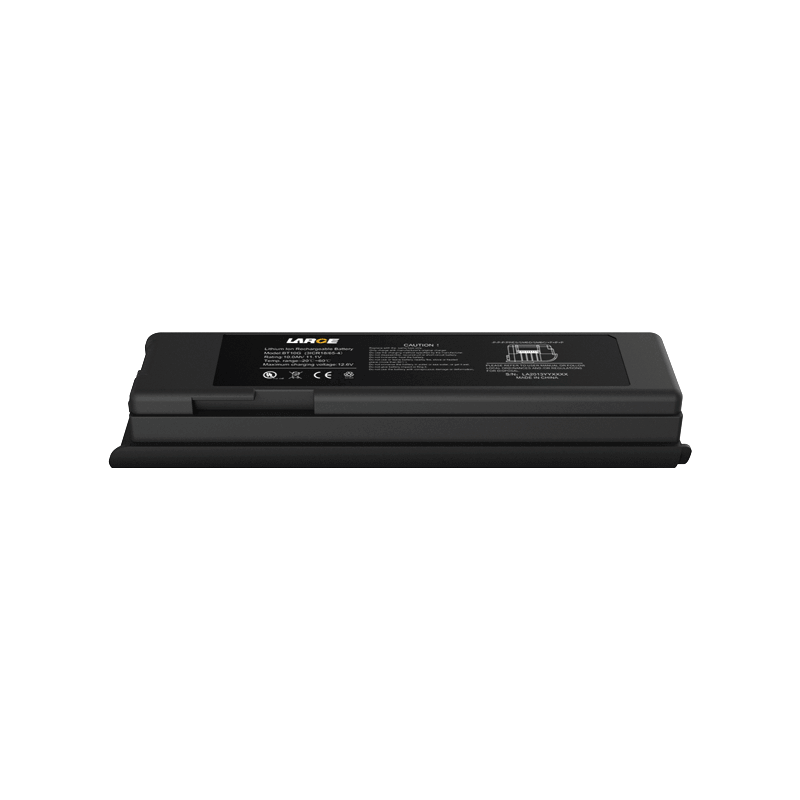

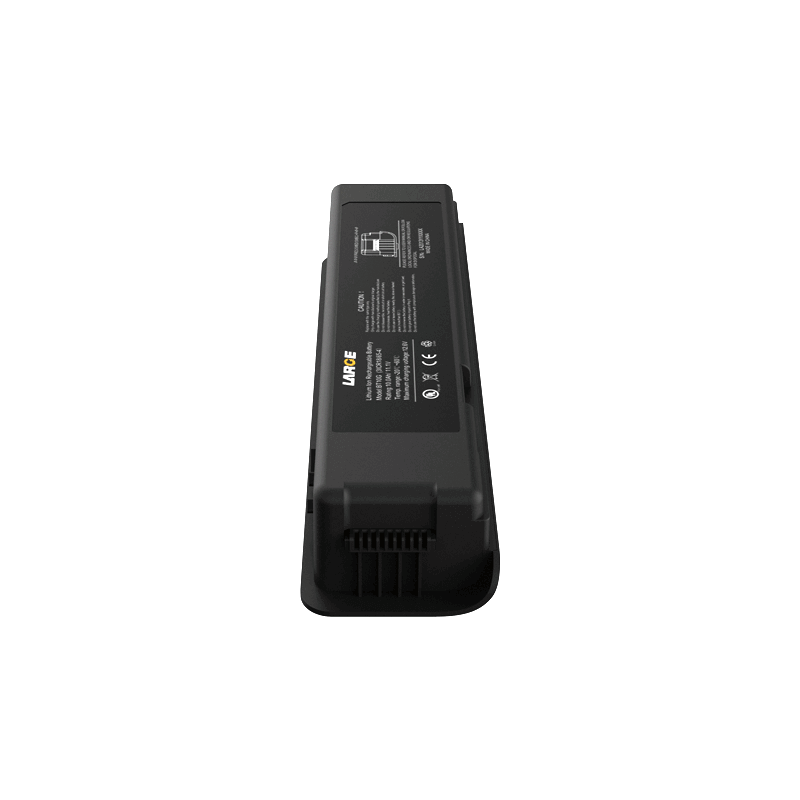

18650 11.1V 10Ah Lithium Ion Battery SANYO Battery for Portable Ultrasound Machine

Customization | Free Battery Solution

Product Detail

Product number: 08AQ107-04

Cell model:18650-2500mAh-3.7V

Battery specification: 18650-3S4P-10Ah-11.1V

Nominal voltage:11.1V

Nominal capacity:10Ah

Charging voltage: 12.6V

Charging current: ≤5A

Discharging current: 2A

Instant discharging current: 10A

End-off voltage: 9.0V

Internal resistance: ≤250mΩ

Battery weight: 700g

Product dimension: 38*56*226mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: portable B ultrasonic diagnostic set, portable medical devices

Product features

1. Adopt ABS+PC housing to strengthen the battery performances of reliability and soundness.

2. Output of metal connector: output by gold plating shrapnel connector so as to strengthen the reliability of conductivity.

3. Data communication management: adopt TI-SMBus software management chip, SMBus data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. The battery pack has good safety performance, nice discharging capability and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
