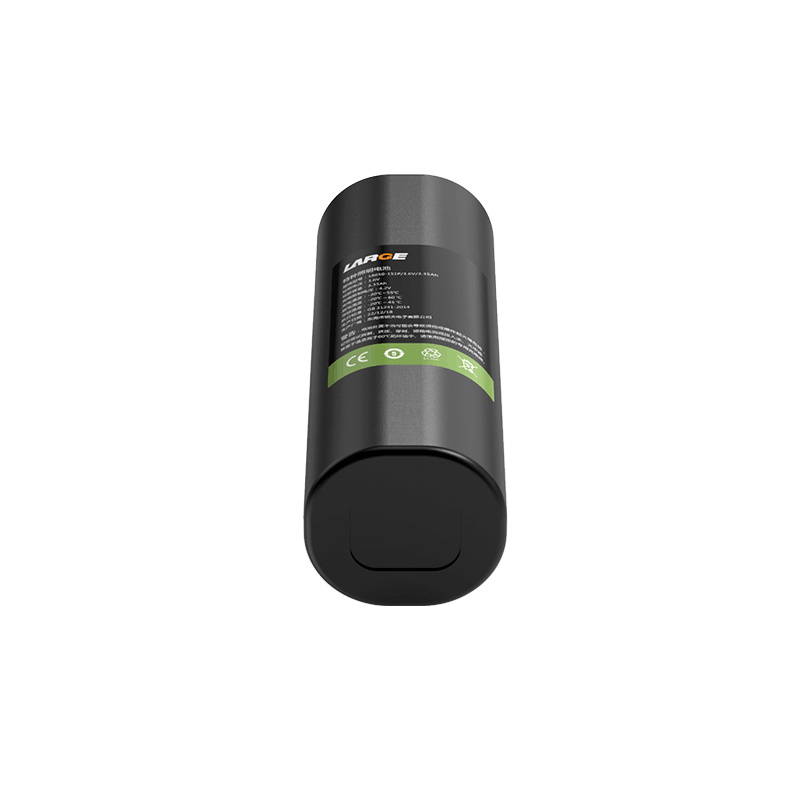

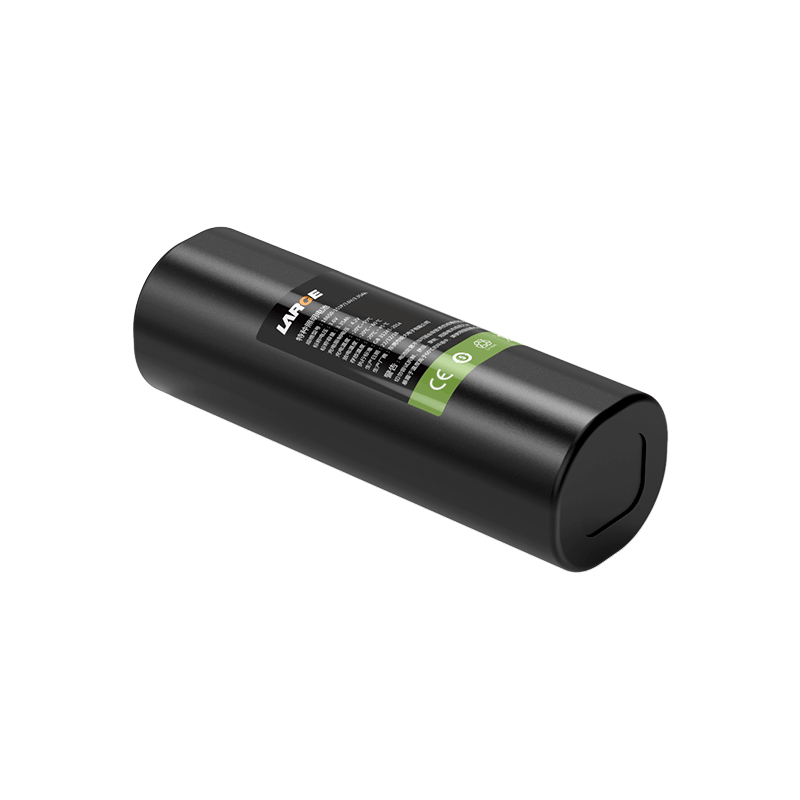

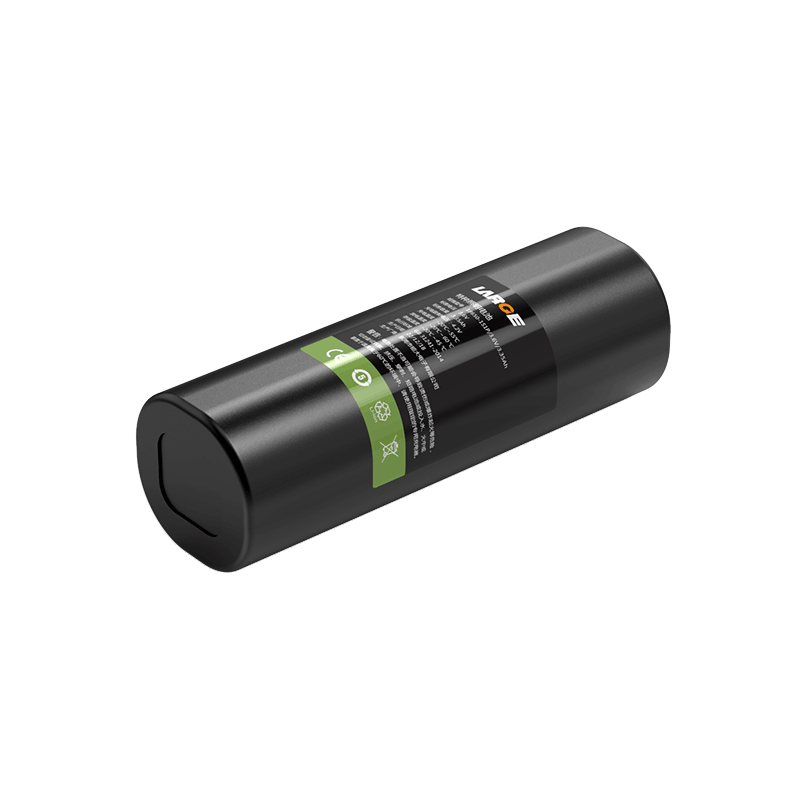

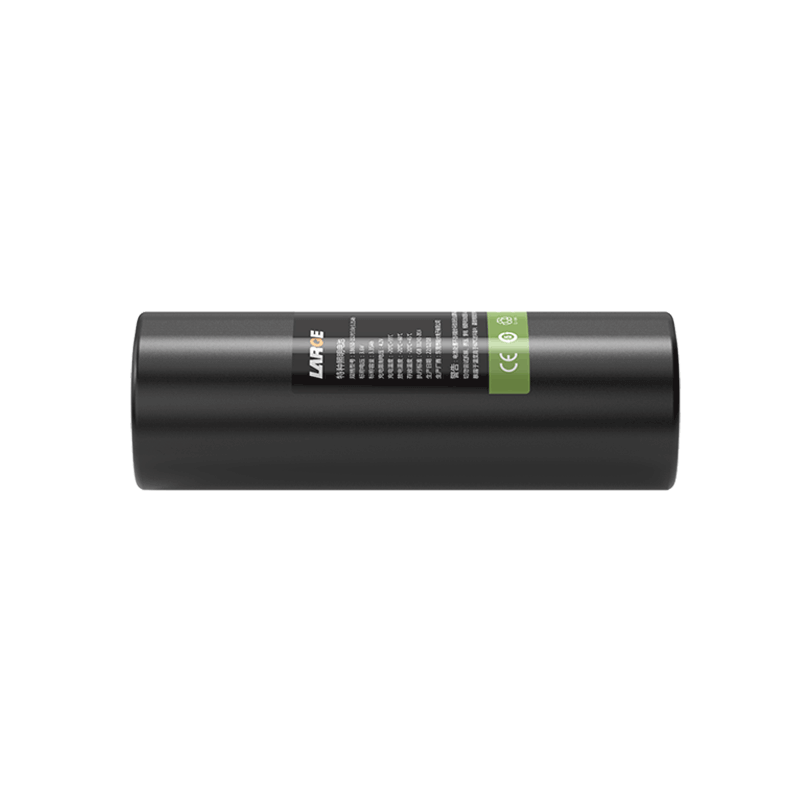

18650 3.6V 3.35AH Special Lighting Battery

Customization | Free Battery Solution

Product Detail

Project number: 33DZ039-05

Battery model: 18650-3.6V/3.45Ah

Battery specification: 18650-1S1P/3.6V/3.35Ah

Nominal voltage: 3.6V

Nominal capacity: 3.35Ah

Charging voltage: 4.2V

Charging current: ≤1.65A

Discharge current: 0.7A

Instantaneous discharge current: 2-5A

Internal resistance of finished product: ≤450mΩ

Battery weight: 50g

Product size: 20.5*25*68.0mm (Max)

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery case: PVC

Communication: None

Lithium-ion battery protection: overcharge, overdischarge, overcurrent, short circuit, etc.

Application: Special lighting

Product Features

1.wide temperature discharge: -20~60 degrees;

2.low power consumption;

3.The battery pack has nice safety and long cycle life;

4.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept;

5.explosion-proof design
