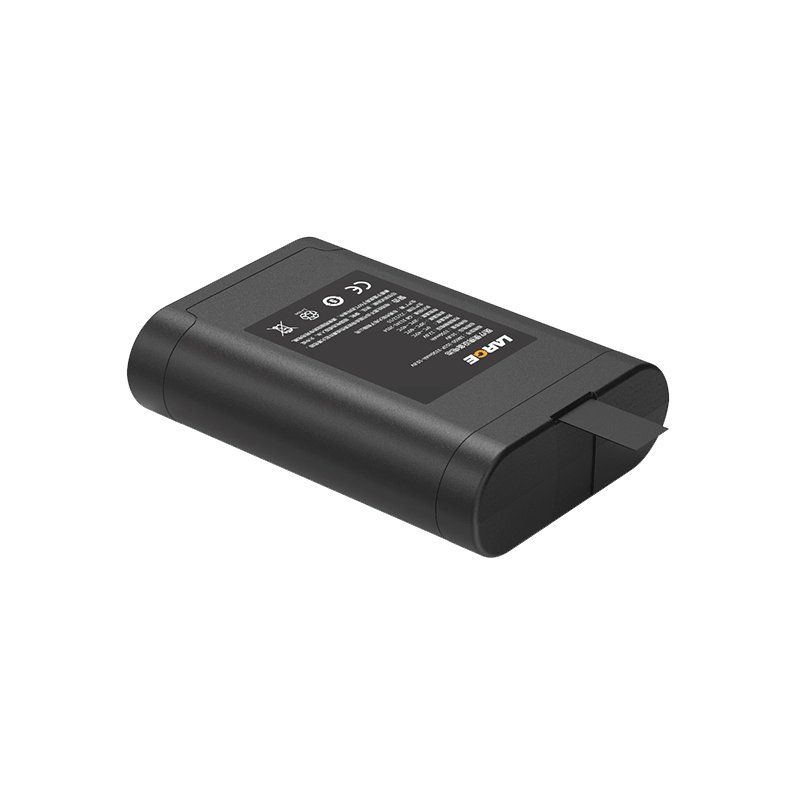

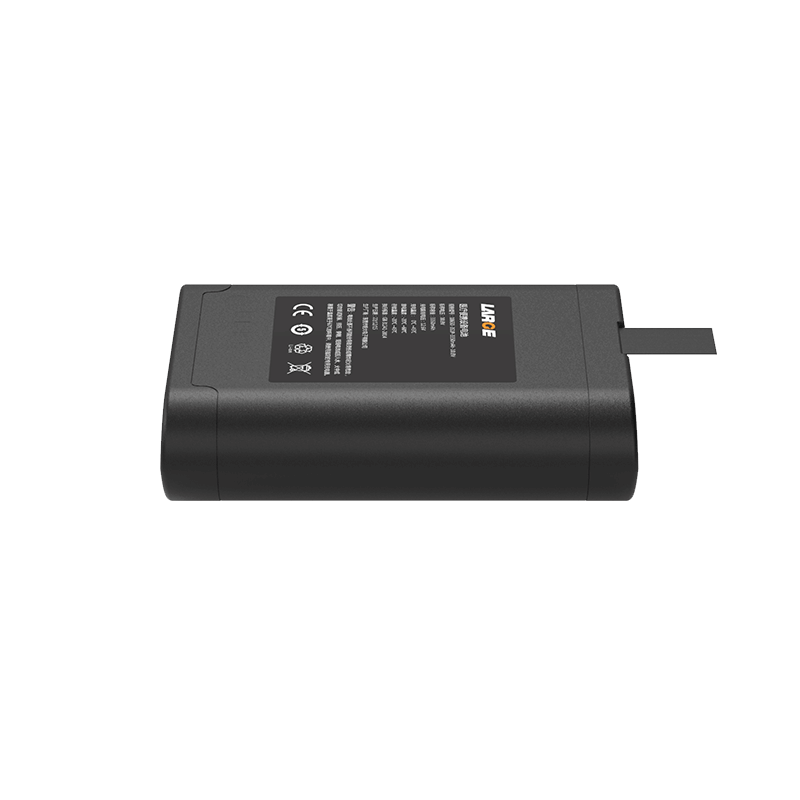

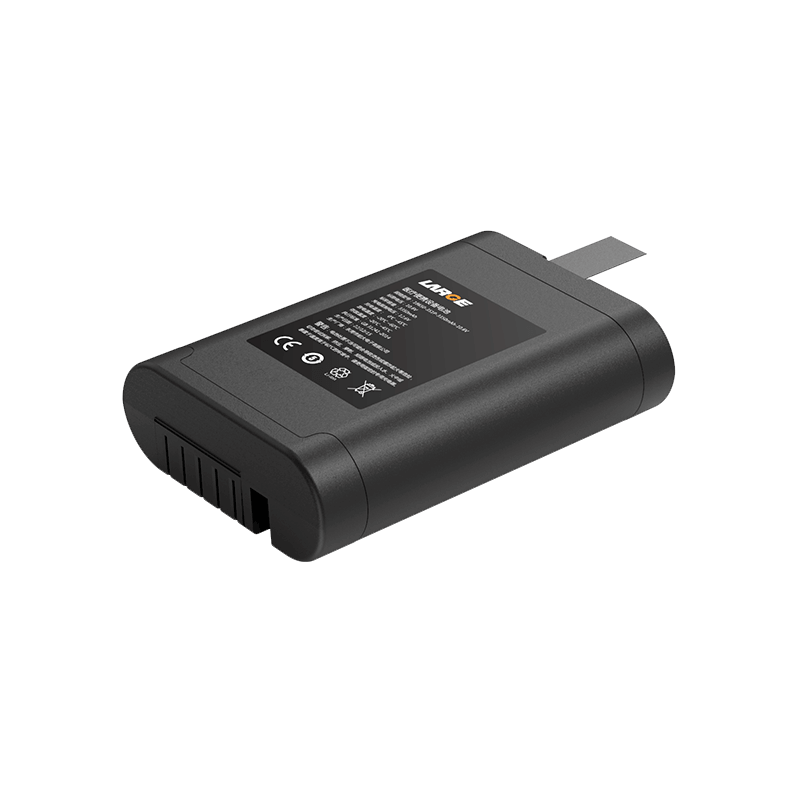

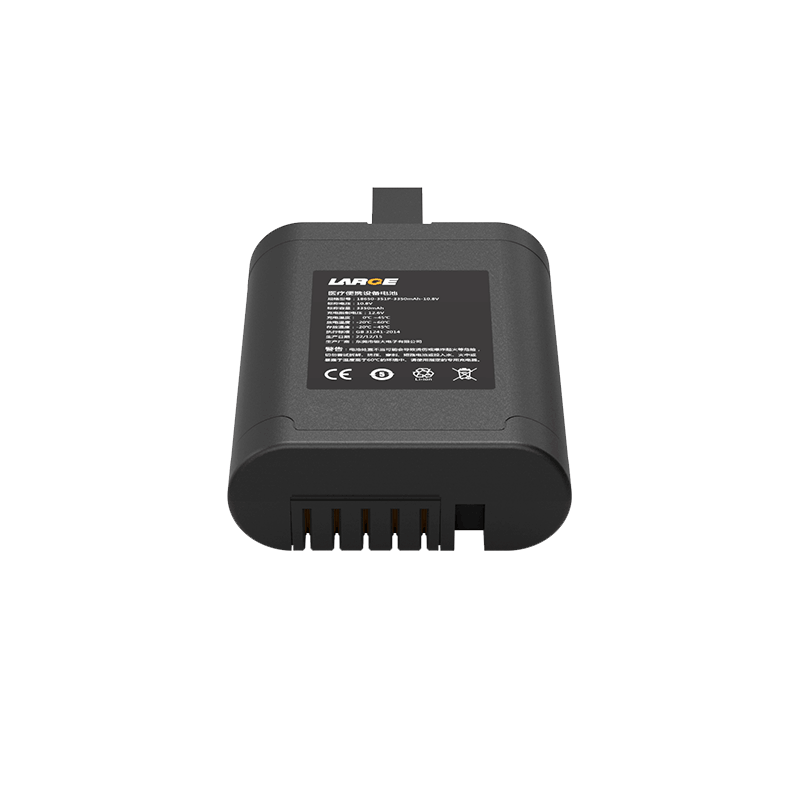

Custom Lithium ion Battery Pack
Product number: 33DZ048-01
Battery model: 18650/3.6V/3350mAh
Battery specification: 18650-3S1P-3350mAh-10.8V
Nominal voltage: 10.8V
Nominal capacity: 3350mAh
Charging voltage: 12.6V
Charging current: ≤2350mA
Discharge current: 4A
Instantaneous discharge current: 8-14A
Discharge cut-off voltage: 7.5V
Finished internal resistance: ≤200mΩ
Battery weight: 200G
Product size: 84.8*58.8*22mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45℃
Battery case: plastic case
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature detection SOC SMBUS communication, etc
Application: Medical portable equipment
Product Features
1.PC+ABS plastic case.
2.Cell: Use high energy cell, which could be discharged at -20 degrees environment.
3.The battery pack has nice safety, good low temperature performance and long cycle life;
4.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept;
5.Voltameter and indicator light
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
