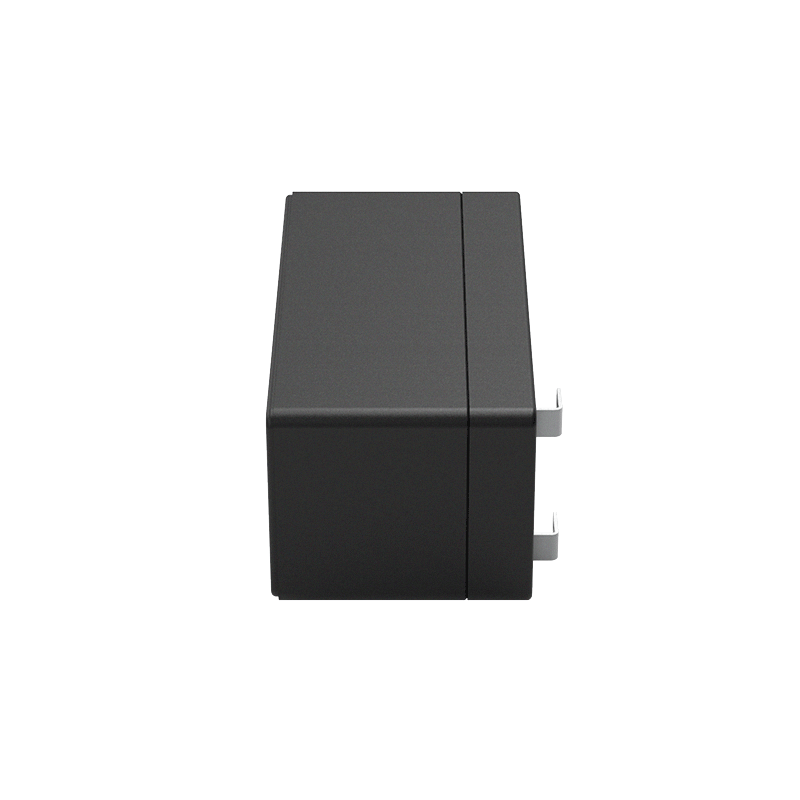

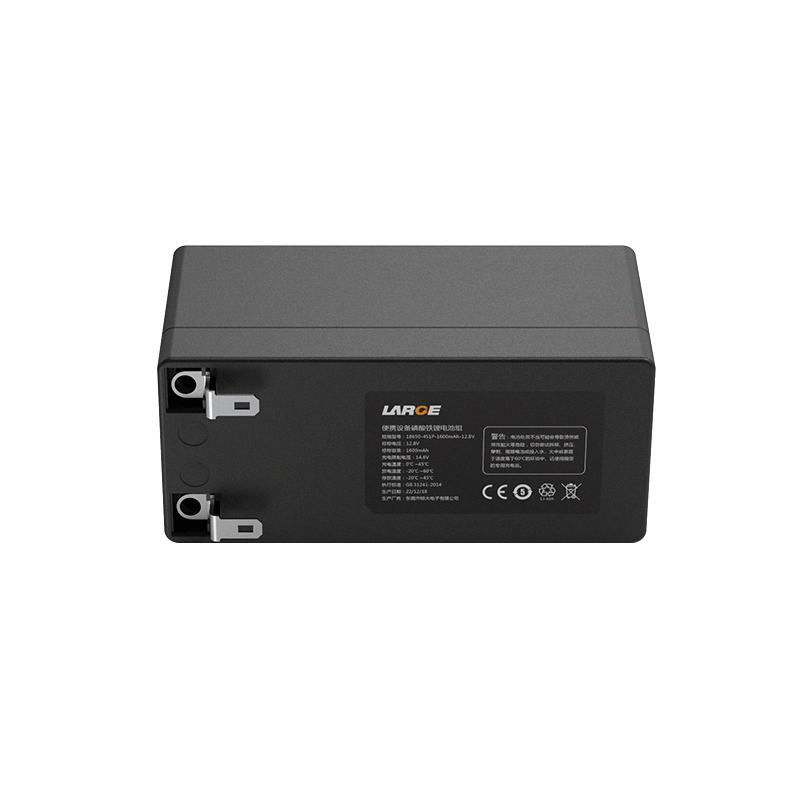

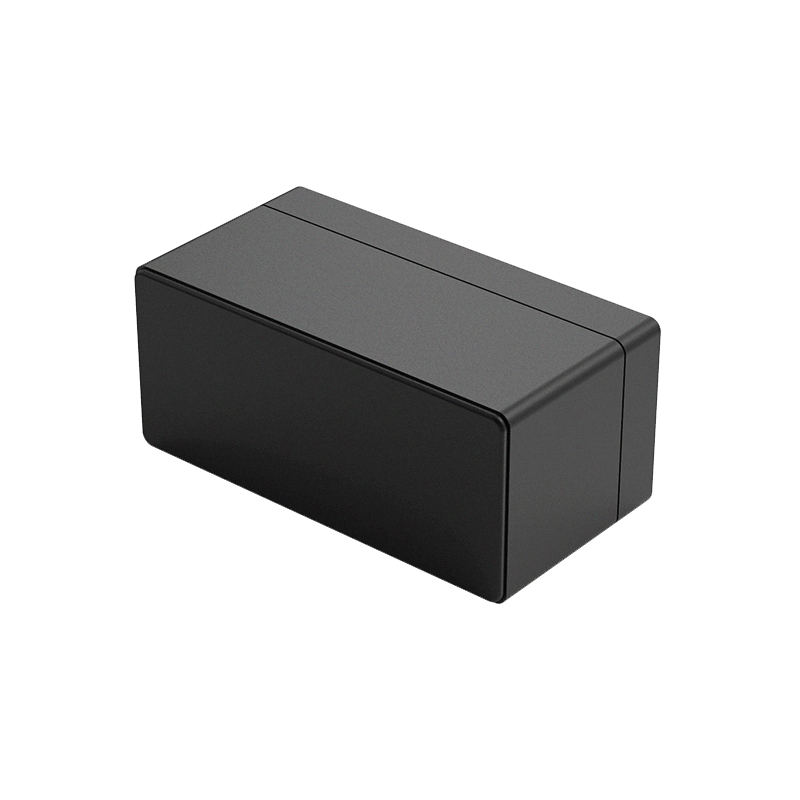

Custom Lithium ion Battery Pack
Product number: 33DZ023-05
Battery model: 18650/3.2V/1800mAh
Battery specification: 18650-4S1P-1600mAh-12.8V
Nominal voltage: 12.8V
Nominal capacity: 1600mAh
Charging voltage: 14.6V
Charging current: ≤1650mA
Discharge current: ≤1600mA
Instantaneous discharge current: 4-8A
Discharge cut-off voltage: 8.8V
Finished internal resistance: ≤200mΩ
Battery weight: 200g
Product size: 43*52*97mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 45℃
Battery case: plastic case
Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature and so on
Application: Backup power supply
Product Features
1.Conforms to CQC (GB31241-2014) standard.
2.Cell: The ultra-safe lithium iron phosphate cell can be discharged at -20 ° C.
3.The battery pack has nice safety, good low temperature performance and long cycle life;
4.It has overtemperature protection;
5.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
