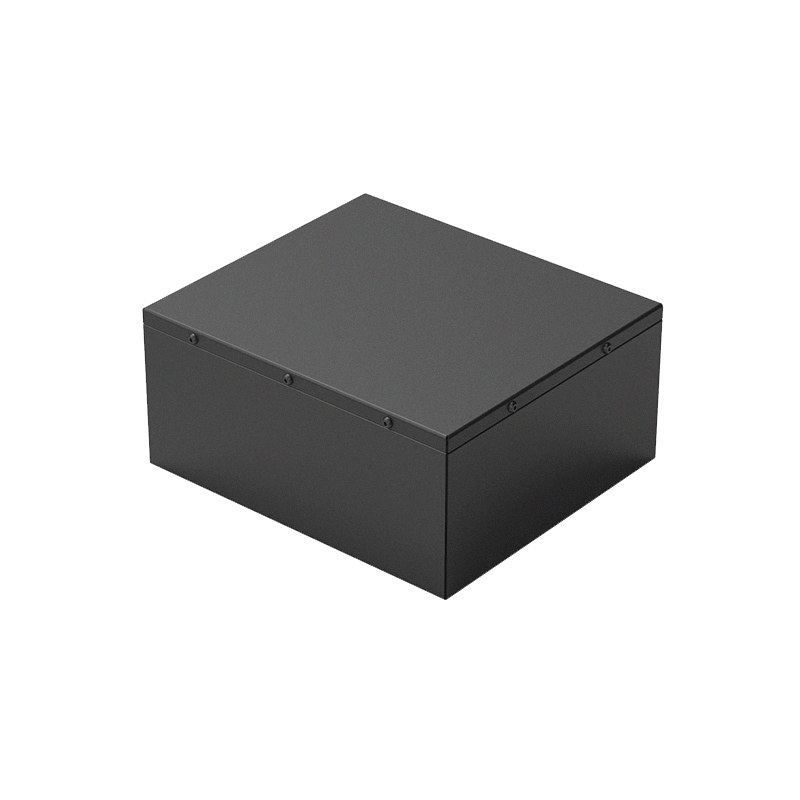

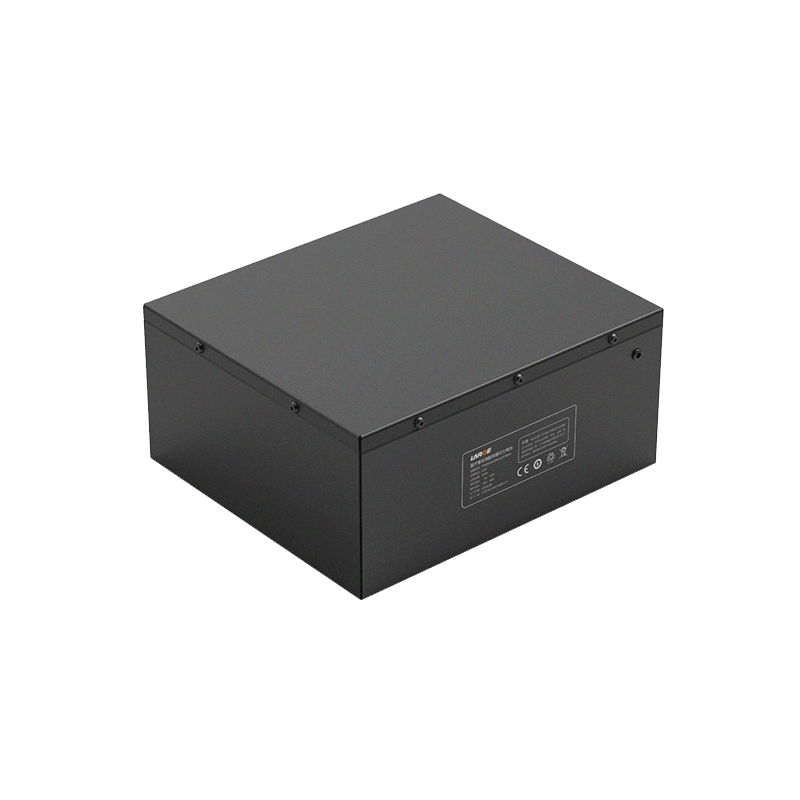

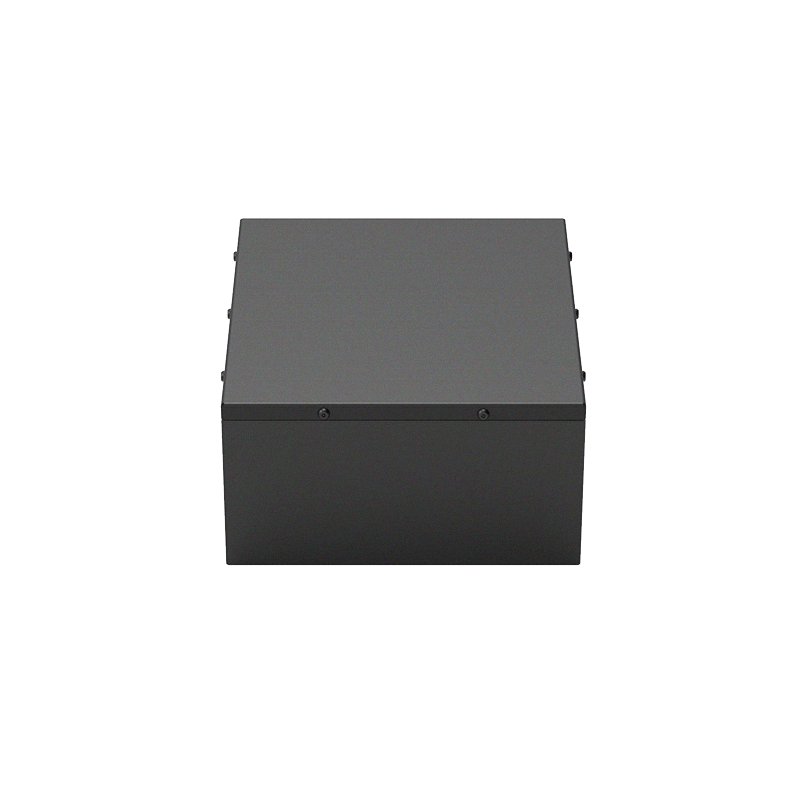

Custom Lithium ion Battery Pack
Project number: 37DZ012-01
Battery model: IFP28148115A/3.2V/52Ah
Battery specifications: 15S1P/48V/52Ah
Nominal voltage: 48V
Nominal capacity: 52Ah
Charging voltage: 54.75V
Charging current: ≤26A
Discharge current: 35A
Instant discharge current: 60A
Discharge cut-off voltage: 30V
Finished internal resistance: ≤180mΩ
Battery weight: 20Kg
Product size: 315*275*145mm (±1mm)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Temperature protection: 70℃±5℃
Battery case: sheet metal case
Communication: RS485
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, balance and so on
Application: Medical cart
Product Features
1.Large current output.
2.The battery is equipped with temperature protection.
3.The battery is equipped with a detection port.
4.RS485 communication management: SOC management, fault warning.
5.The battery pack is safe and has a long cycle life.
6.The battery pack has a long cycle life, which conforms to the value concept of low carbon, energy saving and environmental protection.
