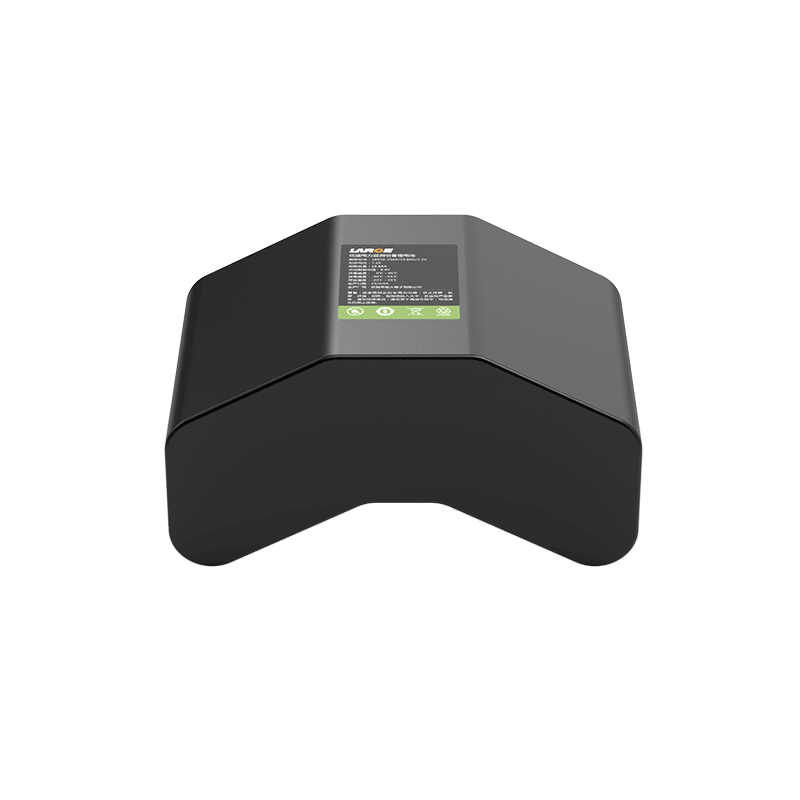

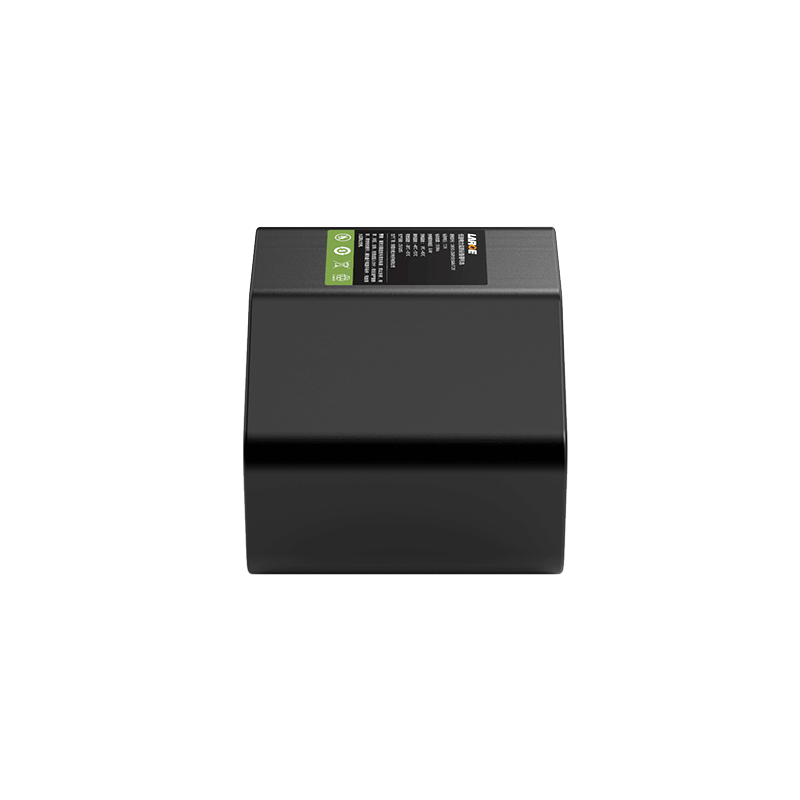

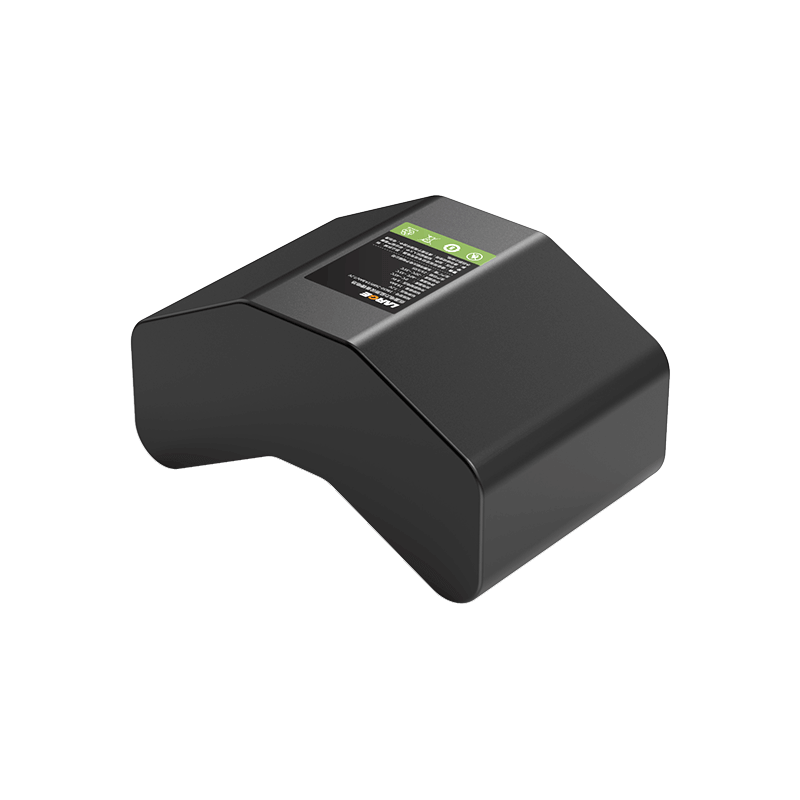

Low Temperature 18650 7.2V 19.8Ah Power Monitoring Equipment Lithium-ion Battery

Customization | Free Battery Solution

Product Detail

Product number: 34AQ020-09

Battery model: 18650-3300mAh-3.6V

Battery specification: 18650-2S6P/19.8Ah/7.2V

Product size: 106*70*60mm (Max)

Nominal voltage: 7.2V

Nominal capacity: 19.8Ah

Finished internal resistance: ≤180mΩ

Charging voltage: 8.4V

Charging current: ≤2.0A

Discharge current: ≤2.0A

Discharge cut-off voltage: 5.0V

Battery weight: 300g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 55℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Power monitoring equipment, monitoring, security, instrumentation

Product Features

1.Blue PVC heat shrink film package is simple and reliable and easy to install;

2.Connector plug output terminal: use MOLEX plug output mode to increase the electrical reliability of the plug;

3.Low temperature -40℃ discharge lithium-ion battery;

4.Use imported seiko protection chip and low internal resistance FETMOSF, with high stability, high precision monitoring, precise control, to minimize security risks.

5.The lithium iron phosphate battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
