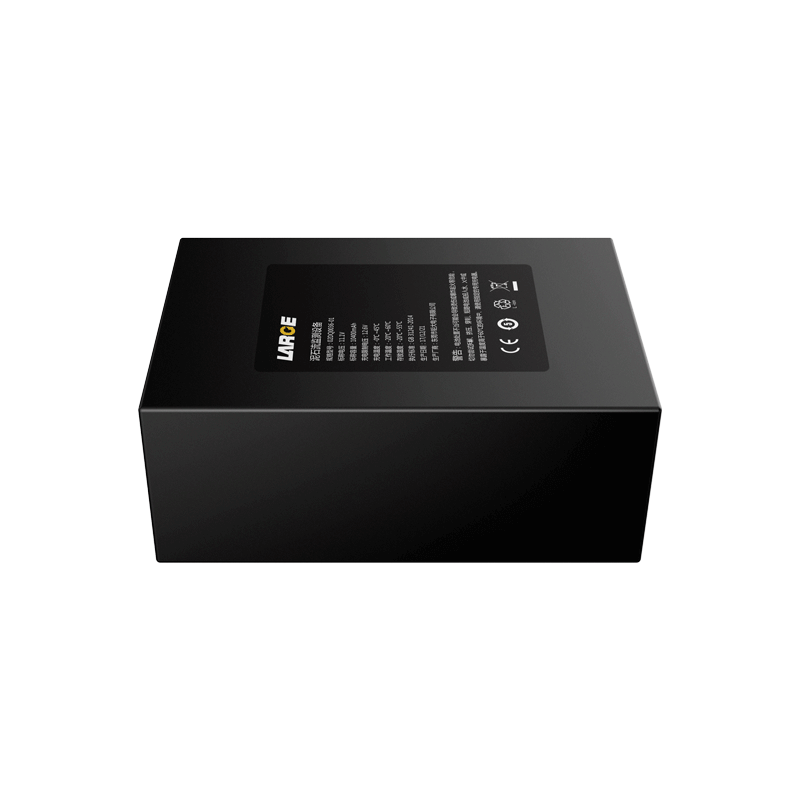

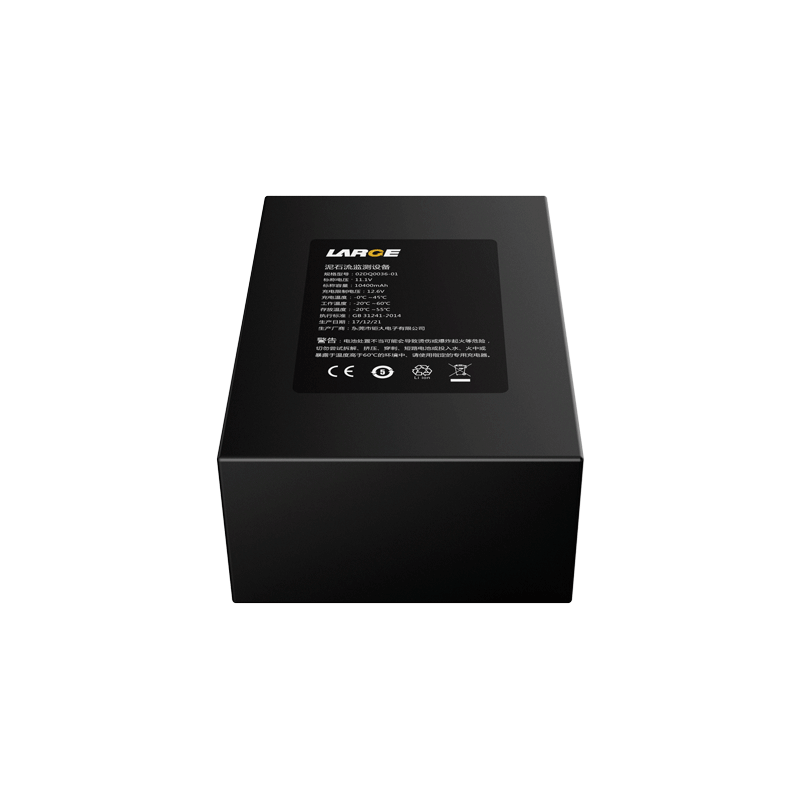

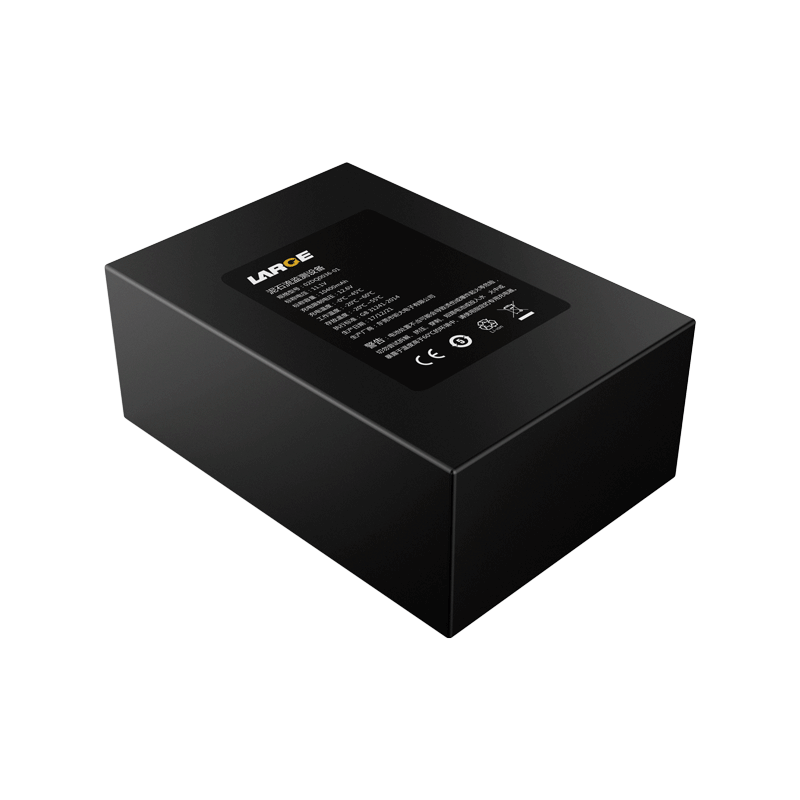

Custom Lithium ion Battery Pack
Product number: 02DQ0036-01
Cell model：ICR18650-26F/2600mAh/3.7V SAMSUNG
Battery specification: 18650-3S4P/10.4Ah/11.1V
Nominal voltage：11.1V
Nominal capacity：10400mAh
Charging voltage: 12.6V
Charging current: ≤3500mA
Discharging current: ≤4000mA
End-off voltage: 8.25V
Internal resistance: ≤250mΩ
Battery weight: about 595g
Product dimension: 115*80*45 mm
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～35 ℃
Battery case: PVC
Lithium ion battery protection: overcharge protection, over-discharge protection and overcurrent protection, short circuit protection, etc.
Application field: monitoring equipment of debris flow
