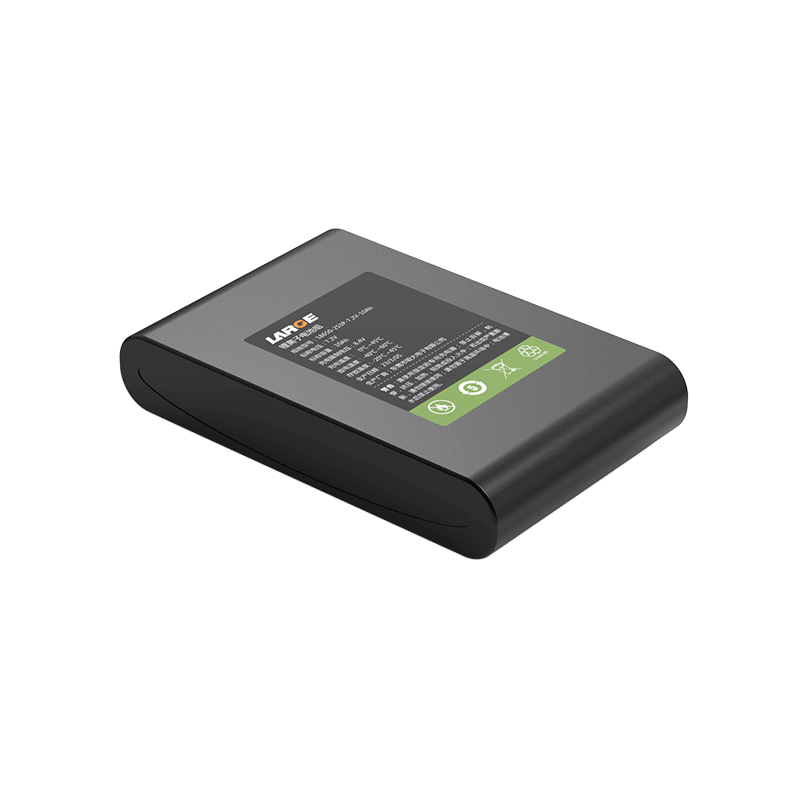

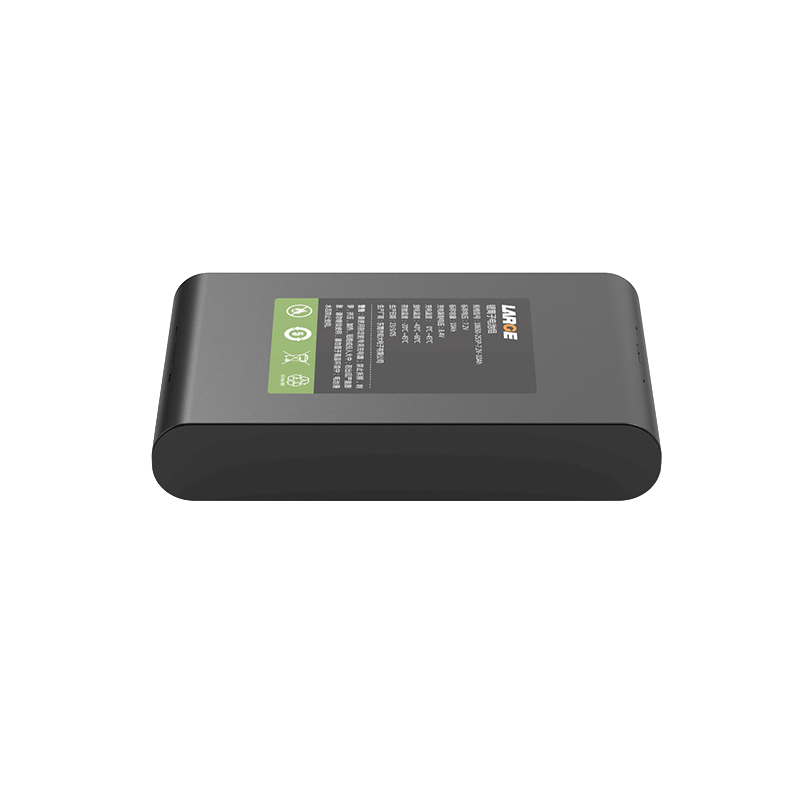

18650 7.2V 10Ah Lithium-ion Battery Pack

Customization | Free Battery Solution

Product Detail

Product number: 36AQ581-02

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-2S3P-7.2V-10Ah

Product size: 112*72*19.5mm

Nominal voltage: 7.2V

Nominal capacity: 10Ah

Charging voltage: 8.4V

Charging current: 5.0A

Discharge current: 5.0A

Discharge cut-off voltage: 4V

Finished internal resistance: ≤180mΩ

Battery weight: 7.2V

Charging temperature: 0~+45℃

Discharge temperature: -40~+60℃

Storage temperature: -20~+45℃ (less than 1 month) -10 ~ 35℃(less than 3 months); -10~+25℃ (less than 6 months)

Battery package: PVC

Lithium-ion protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Equipment battery

Product Features

1.PVC process is simple and reliable,and easy to install

2.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;

3.Battery protection management: Use imported well-known brand protection chip with high stability, high precision monitoring, precise control, to maximize the elimination of security risks.

4.The battery pack has nice safety, good discharge performance and long cycle life;

5.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept;
