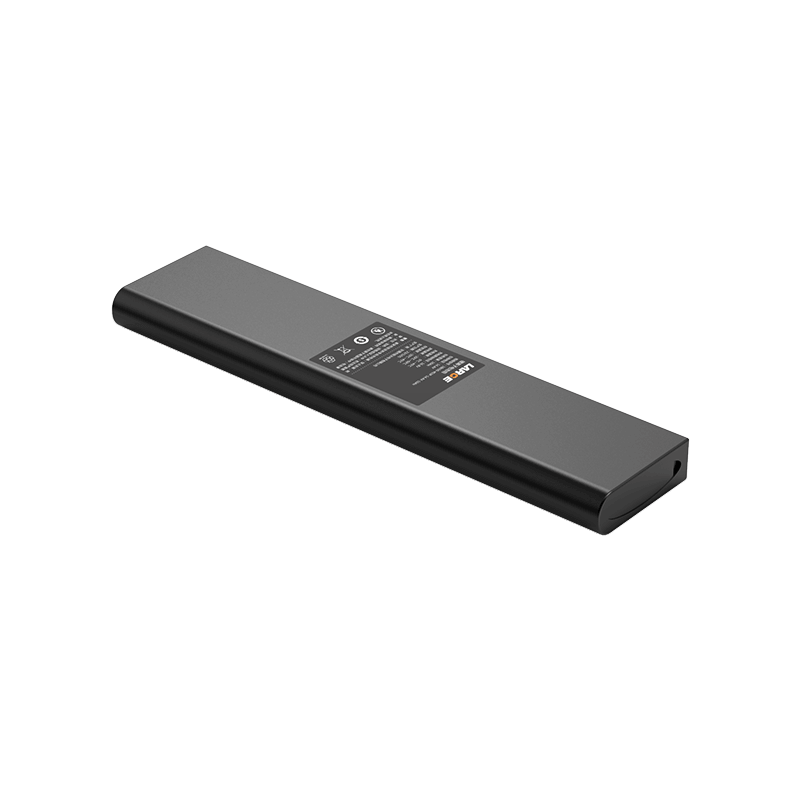

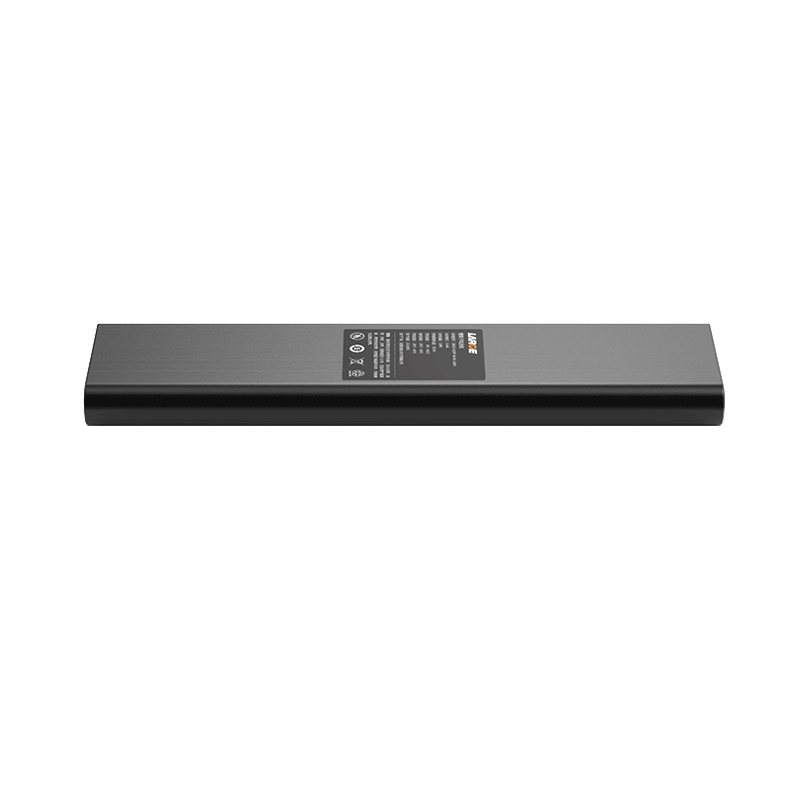

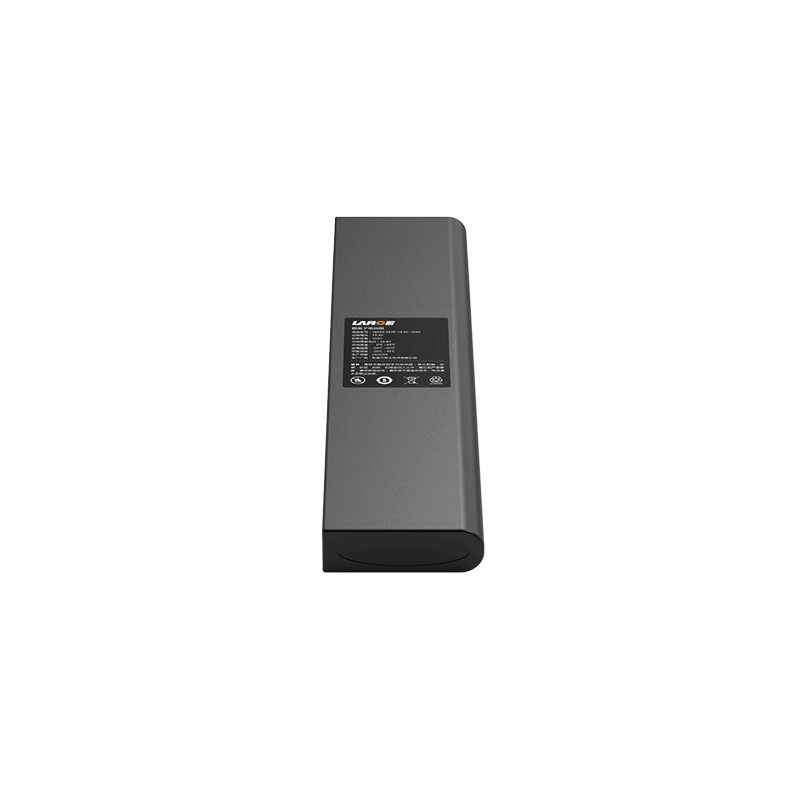

Custom Lithium ion Battery Pack
Product number: 40AQ021-01
Battery model: 18650-3350mAh-3.6V
Battery specification: 18650-4S3P-14.4V-10Ah
Product size: 264.5*60*19mm
Nominal voltage: 14.4V
Nominal capacity: 10Ah
Charging voltage: 16.8V
Charging current: 5A
Discharge current: 5A
Discharge cut-off voltage: 10V
Finished internal resistance: ≤180mΩ
Battery weight: 650g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)
Battery package: PVC heat seal process
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.
Application: Equipment battery
Product Features
1.PVC heat sealing process is simple and reliable, and easy to install
2.I2c protocol
3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;
4.Battery protection management: Use imported well-known brand protection chip with high stability, high precision monitoring and precise control, to maximize the elimination of security risks.
5.The battery pack has nice safety, good discharge performance and long cycle life;
6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
