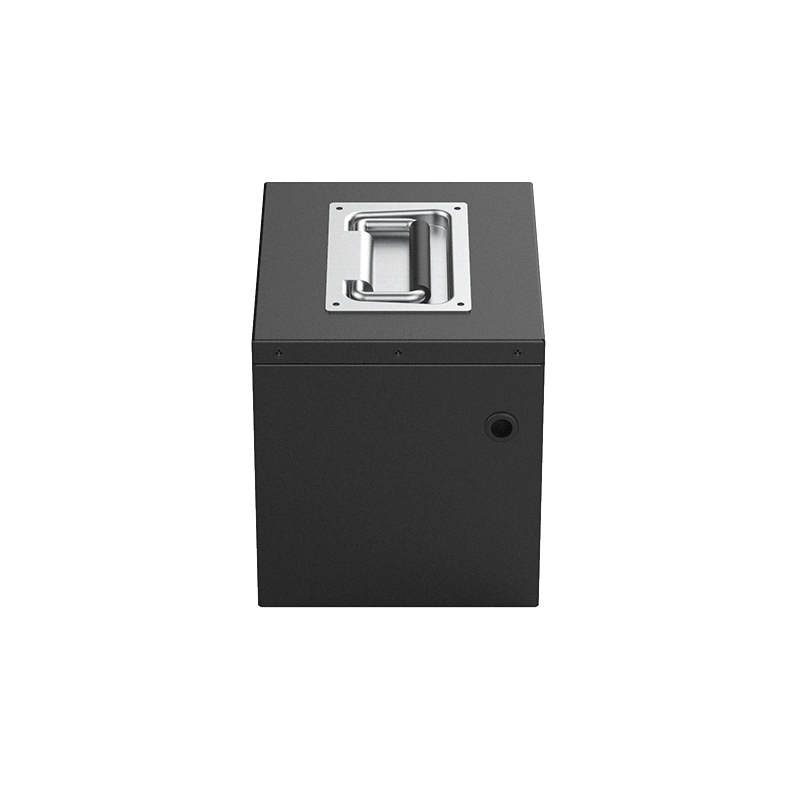

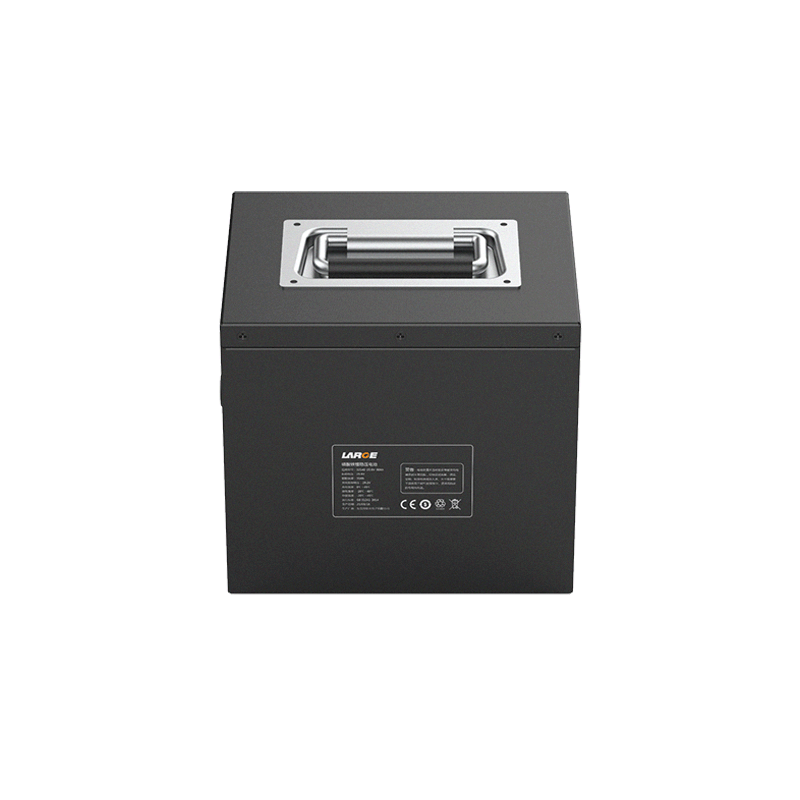

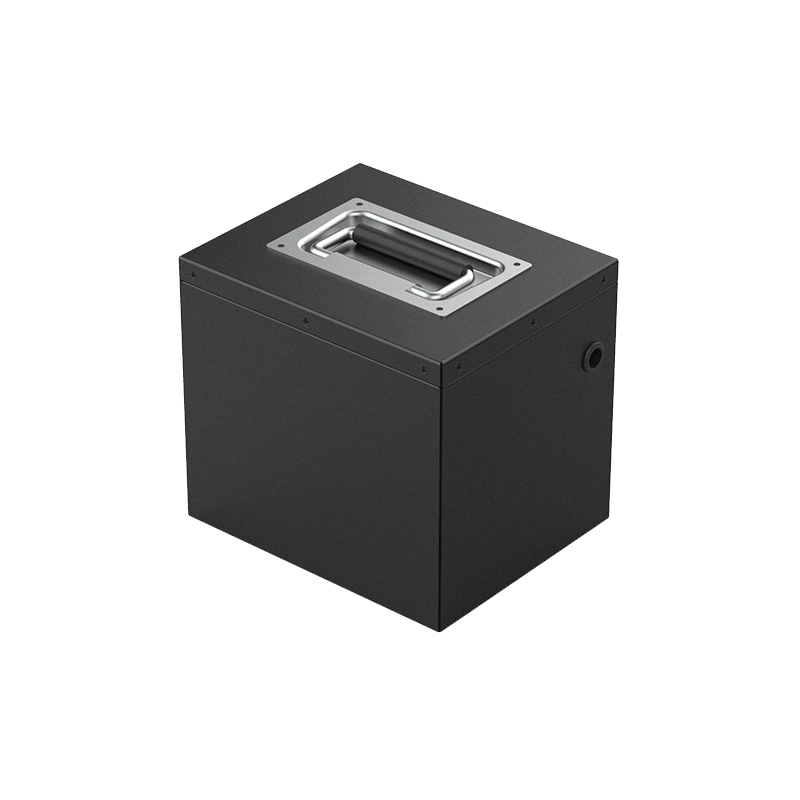

Custom Lithium ion Battery Pack
Product number: 40AQ052-02
Battery model: 32140-3.2V-15Ah
Battery specifications: 25.6V-30Ah
Product size: 195mm *160mm *175mm
Nominal voltage: 25.6V
Nominal capacity: 30Ah
Charging voltage: 29.2V
Charging current: 15A
Discharge current: 30A
Discharge cut-off voltage: 20V
Finished internal resistance: ≤180mΩ
Battery weight: ≤7.5Kg
Charging temperature: 0℃~+55℃
Discharge temperature: -20℃~+60℃
Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)
Battery package: metal case
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.
Application: Robot battery
Product Features
1.Hardware shell is simple and reliable,and easy to install;
2.RS485 communication protocol
3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;
4.Battery protection management: Use imported well-known brand protection chip with high stability, high precision monitoring, precise control, to maximize the elimination of security risks;
5.The battery pack has nice safety, good discharge performance,and long cycle life;
6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
