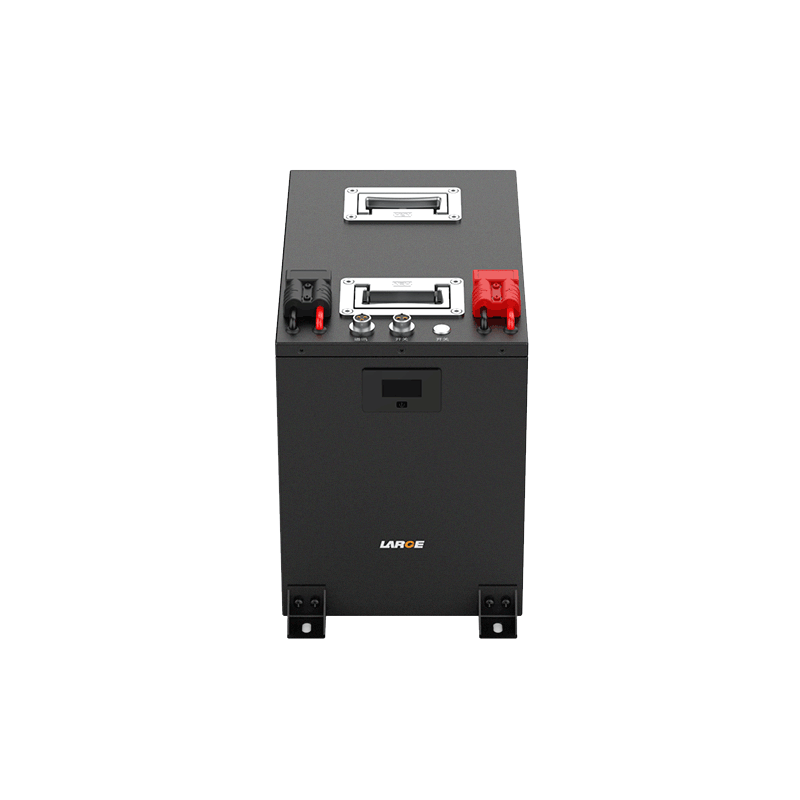

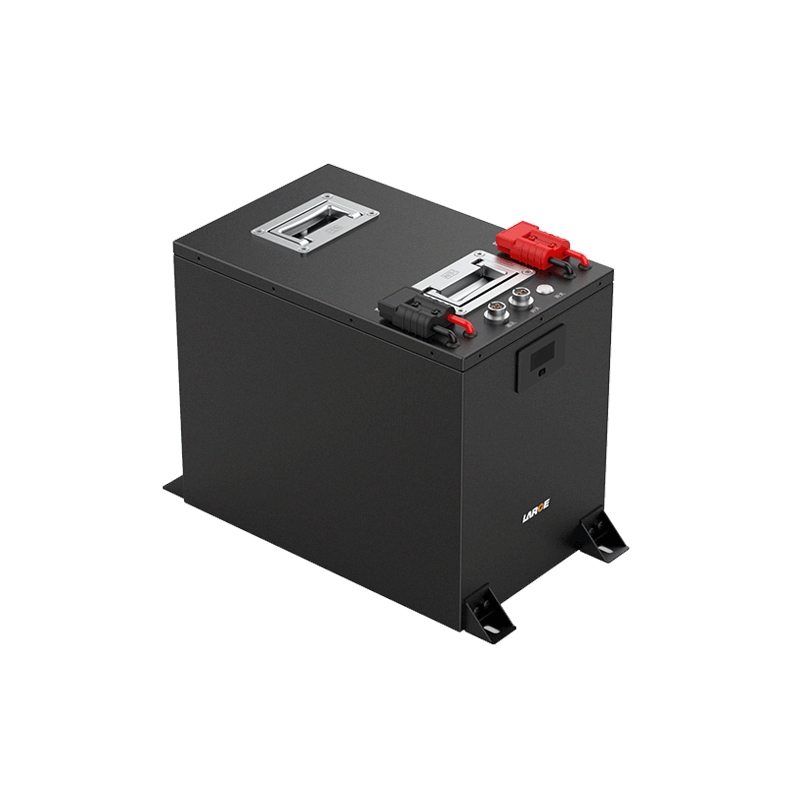

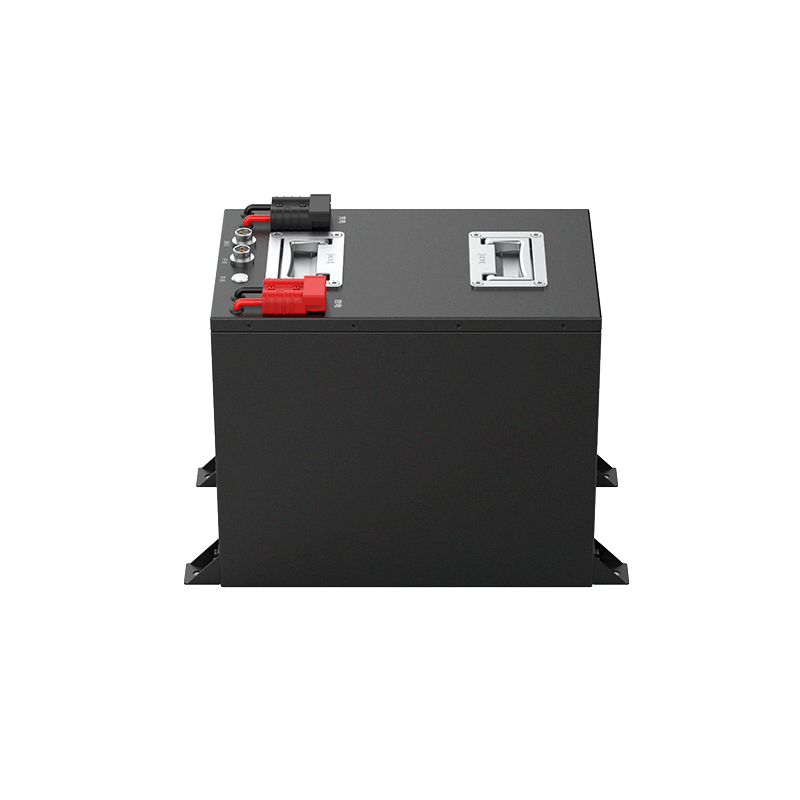

Low-temperature Charge and Discharge Lithium Iron Phosphate Battery Pack for Mining Robot

Customization | Free Battery Solution

Product Detail

Product number: 40AQ052-01

Battery model: 32140-3.2V-15Ah

Battery specifications: 48V-45Ah

Product size: (300×190×245) ±1mm

Nominal voltage: 48V

Nominal capacity: 45Ah

Charging voltage: 54V

Charging current: 21A (0.5C)

Discharge current: 42A (1.0C)

Discharge cut-off voltage: 37.5V

Finished internal resistance: ≤150mΩ

Battery weight: ≤24Kg

Charging temperature: -25℃~+55℃

Discharge temperature: -20℃~+60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: metal case

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: Robots

Product Features

1.Hardware shell is simple and reliable,and easy to install;

2.RS485 communication protocol;

3.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;

4.Battery protection management: Use imported well-known brand protection chip with high stability, high precision monitoring, precise control, to maximize the elimination of security risks;

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
