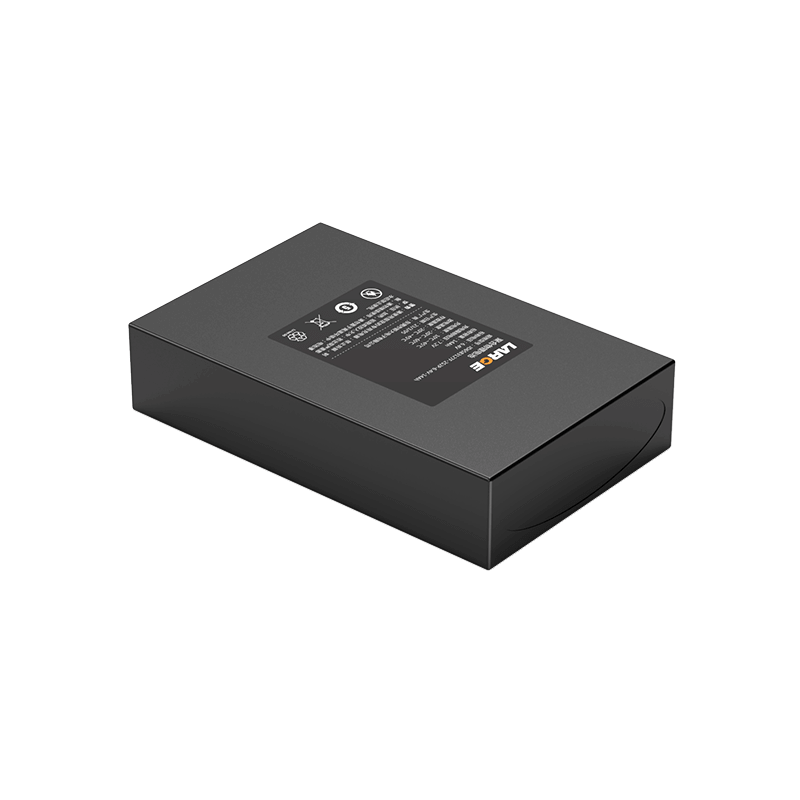

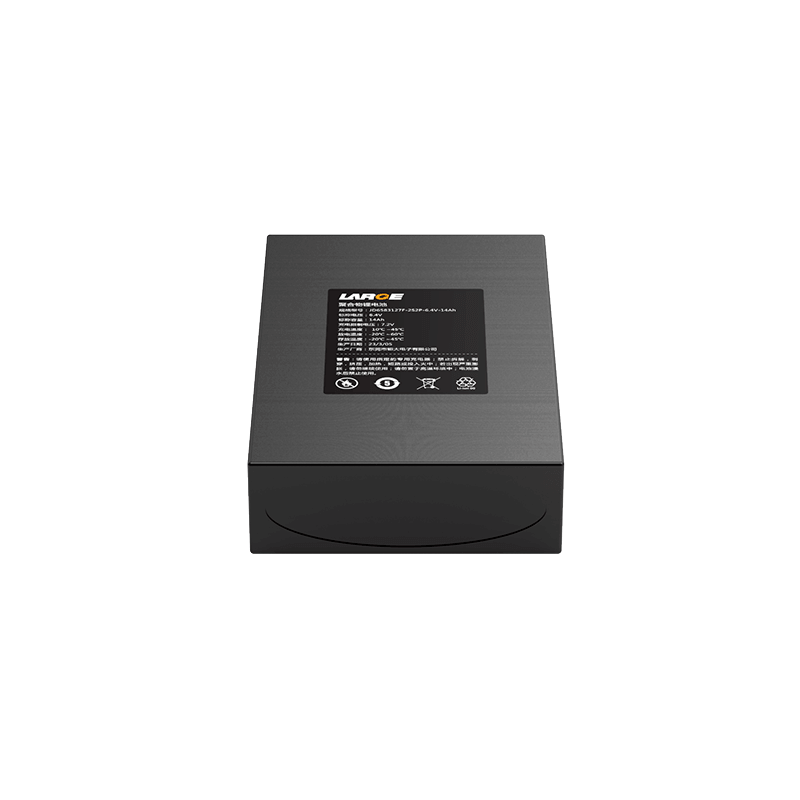

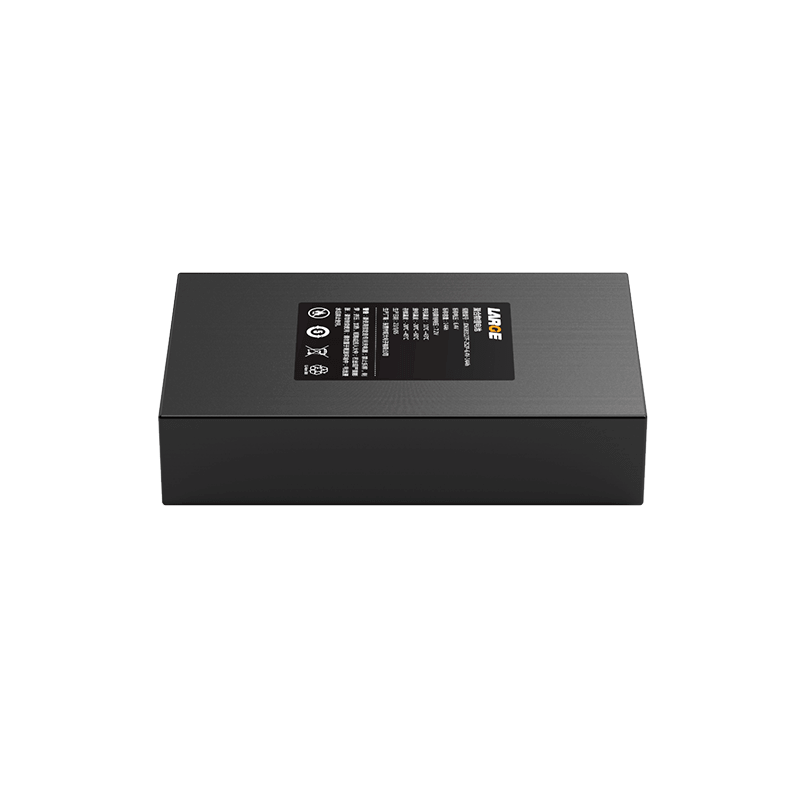

Product number: 04EQ237-06
Battery model: JD6583127F-3.2V-7Ah
Battery specifications: JD6583127F-2S2P-6.4V-14Ah
Product size: L:133mm*W:84mm*H:29mm
Nominal voltage: 6.4V
Nominal capacity: 14Ah
Charging voltage: 7.2V
Charging current: 5.0A
Discharge current: 5.0A
Discharge cut-off voltage: 4V
Finished internal resistance: ≤180mΩ
Battery weight: ≤500g
Charging temperature: -10~+45℃
Discharge temperature: -20~+60℃
Storage temperature: -20~+45℃ (less than 1 month) -10 ~ 35℃(less than 3 months); -10~+25℃ (less than 6 months)
Battery package: PVC
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: Outdoor monitoring equipment
1.PVC process is simple and reliable,and easy to install;
2.Output terminal: Adopt the national standard UL wire output mode to increase the electrical reliability;
3.Battery protection management: Use imported well-known brand protection chip with high stability, high precision monitoring, precise control to maximize the elimination of security risks.
4.The battery pack has nice safety, good discharge performance and long cycle life;
5. The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
