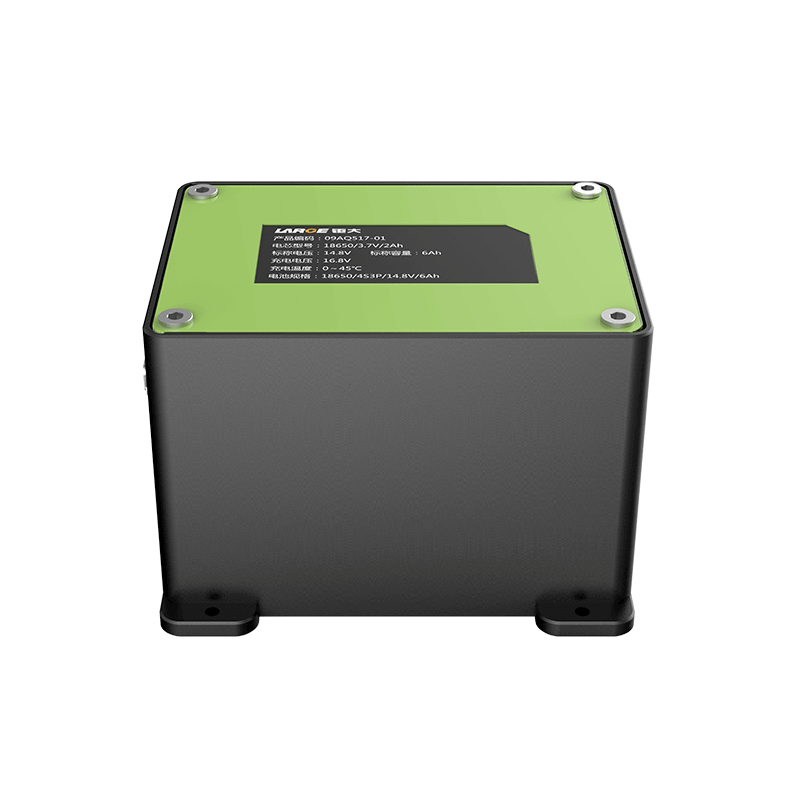

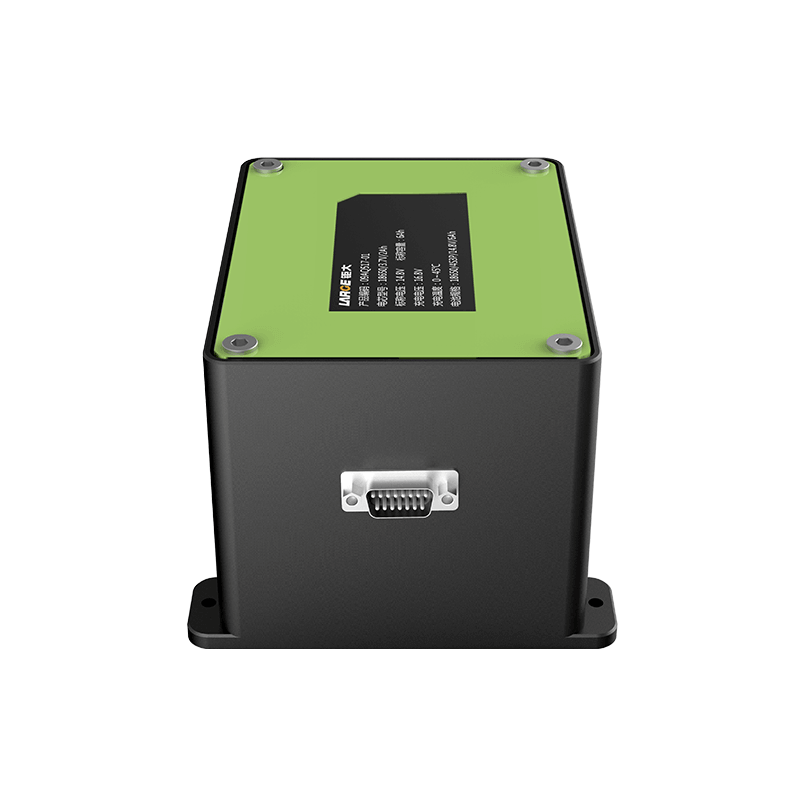

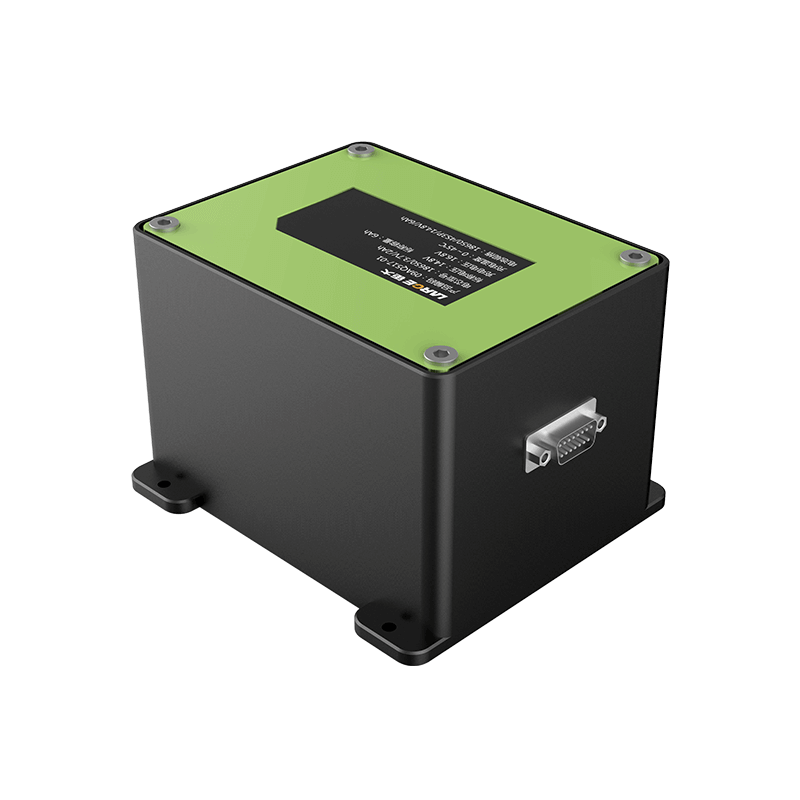

Custom Lithium ion Battery Pack
Product number: 09AQ517-01
Cell model：18650/3.7V/2000mAh
Battery specification: 18650/4S3P/14.8V/6000mAh
Nominal voltage：14.8V
Nominal capacity：6000mAh
Charging voltage: 16.8V
Charging current: ≤2A
Discharging current: 2A
Instant discharging current: 3A
End-off voltage: 10V
Internal resistance: ≤200m?
Battery weight: 880g
Product dimension: 105×78×70（Max）
Charging temperature：0～45℃
Discharging temperature: -40～60 ℃
Storage temperature: -20～20 ℃
Temperature protection: 65℃±5℃
Battery case: AL6061 aluminum alloy
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection and equilibrium.
Application field: wireless measurement device
Product features
1. Shock-resistant and waterproof: fill in the shock-resistant structure inside the aluminum alloy housing to satisfy the requirements of good security and high reliability.
2. Operate at low temperature: adopt military low temperature battery and make sure to operate at -40℃.
3. Reliable connection: apply square connector, which is efficient, safe and reliable.
4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
