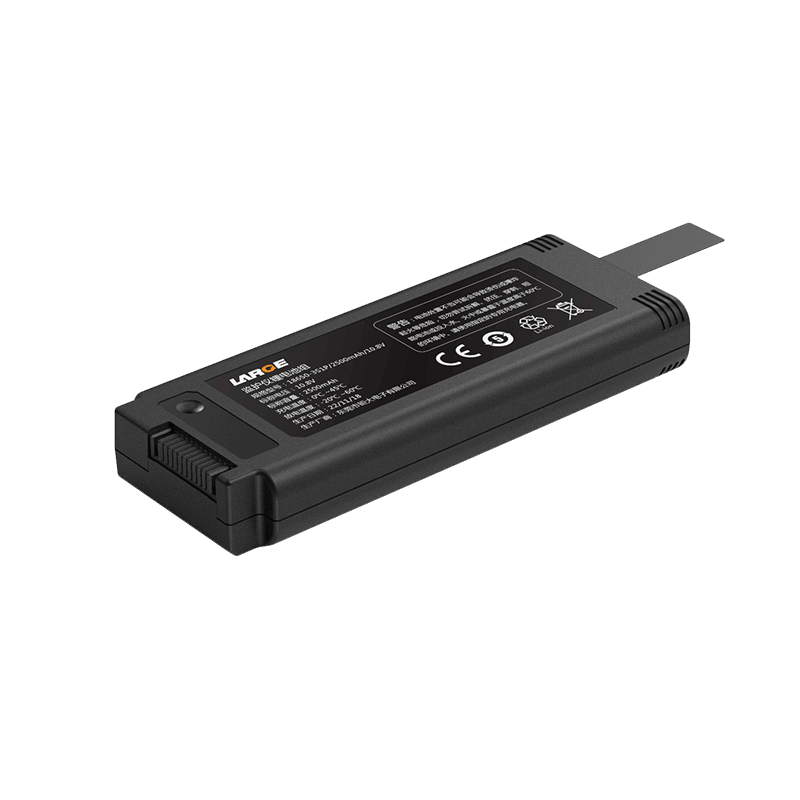

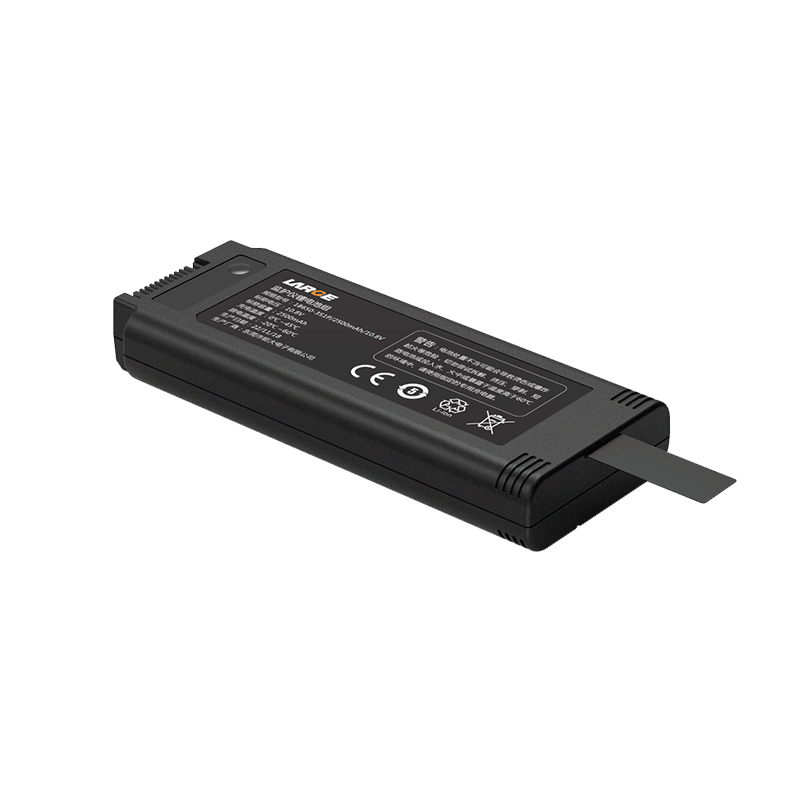

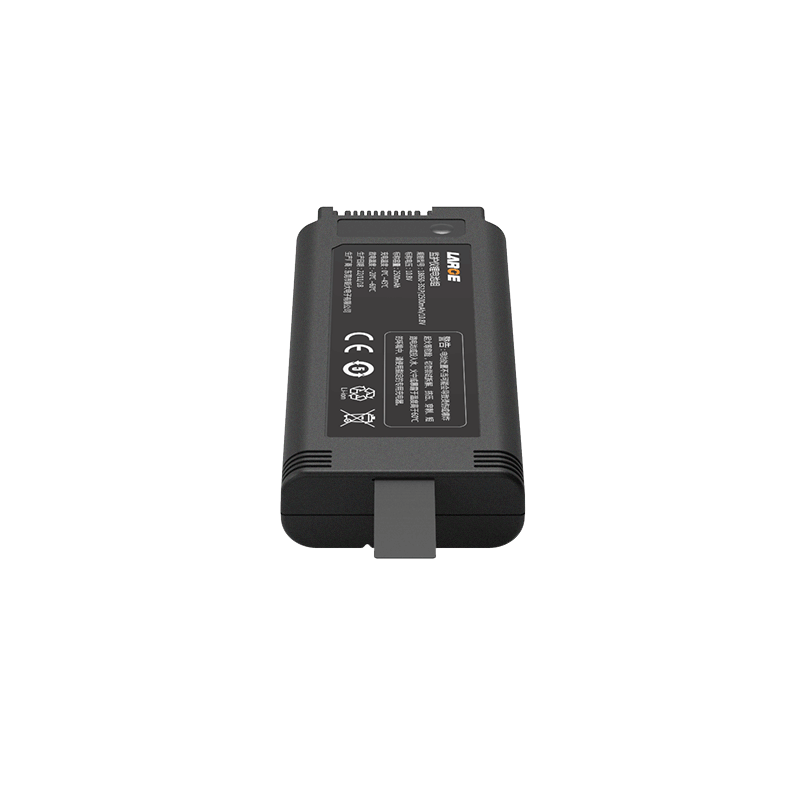

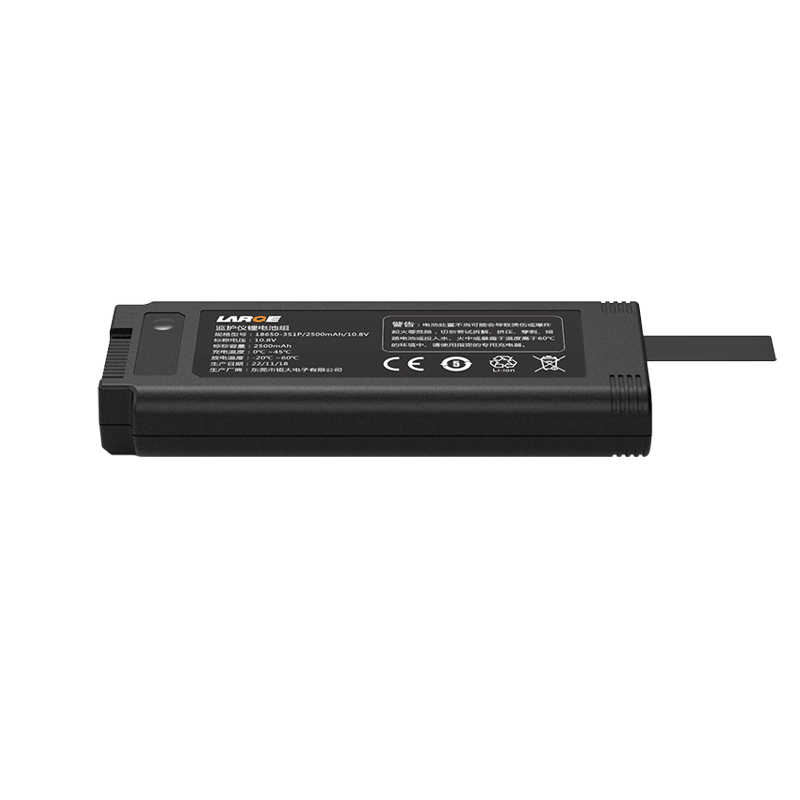

Custom Lithium ion Battery Pack
Product number: 04DQ0082-24
Battery model: H18650CQ/2550mAh/3.6V
Battery specification: 18650-3S1P/2500mAh/10.8V
Nominal voltage: 10.8V
Nominal capacity: 2500mAh
Charging voltage: 12.6V
Charging current: ≤1.25A
Discharge current: 5.0A
Instantaneous discharge current: 7.0A
Discharge cut-off voltage: 8.52V
Finished internal resistance: ≤250mΩ
Battery weight: 230g
Product size: 23.0*62*154mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery case: PVC packaging
Intelligent lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, power calculation, etc.
Application: Monitor
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
