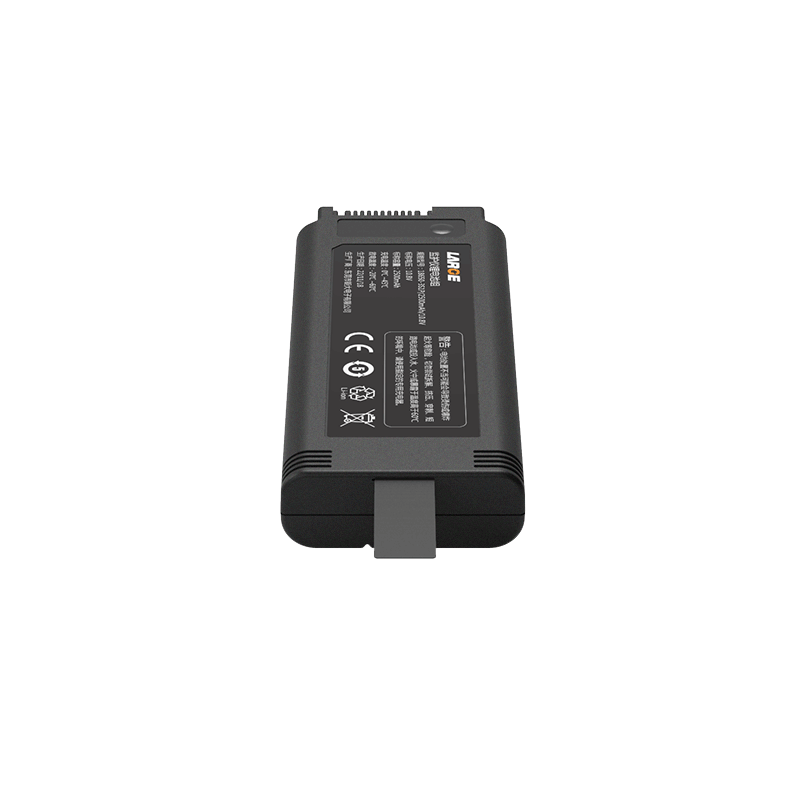

Custom Lithium ion Battery Pack
Product number: 04DQ0082-23
Battery model: N18650CL/2900mAh/3.6V-BAK
Battery specification: 18650-3S2P/5600mAh/10.8V
Nominal voltage: 10.8V
Nominal capacity: 5600mAh
Charging voltage: 12.6V
Charging current: ≤2.8A
Discharge current: 6.5A
Instantaneous discharge current: 11.0A
Discharge cut-off voltage: 8.52V
Finished internal resistance: ≤200mΩ
Battery weight: 450g
Product size: 23.0*62*154mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery cover: None
Intelligent lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, power calculation, etc.
Application: Monitor
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
