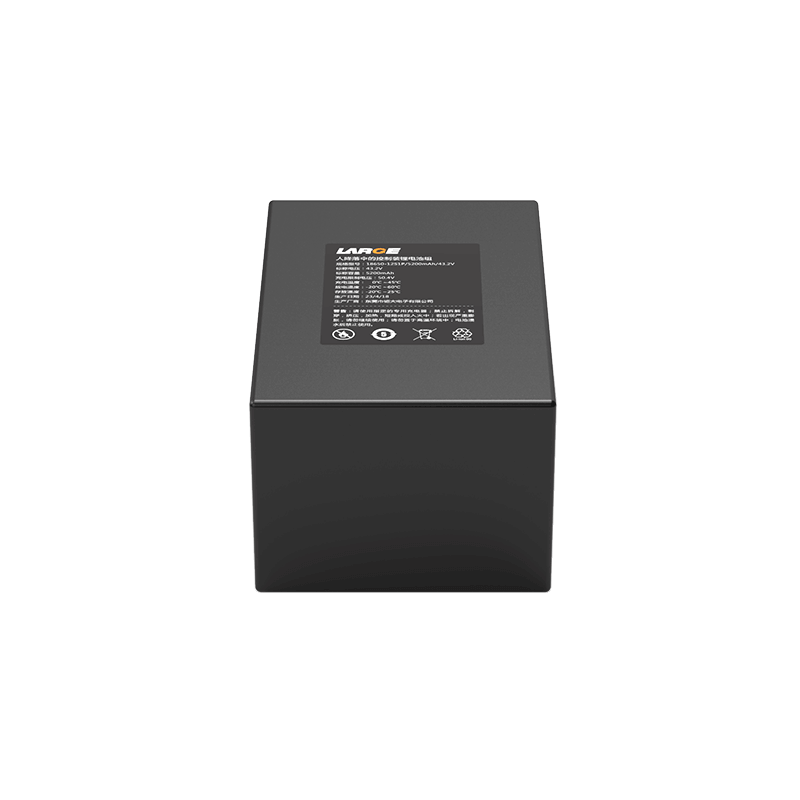

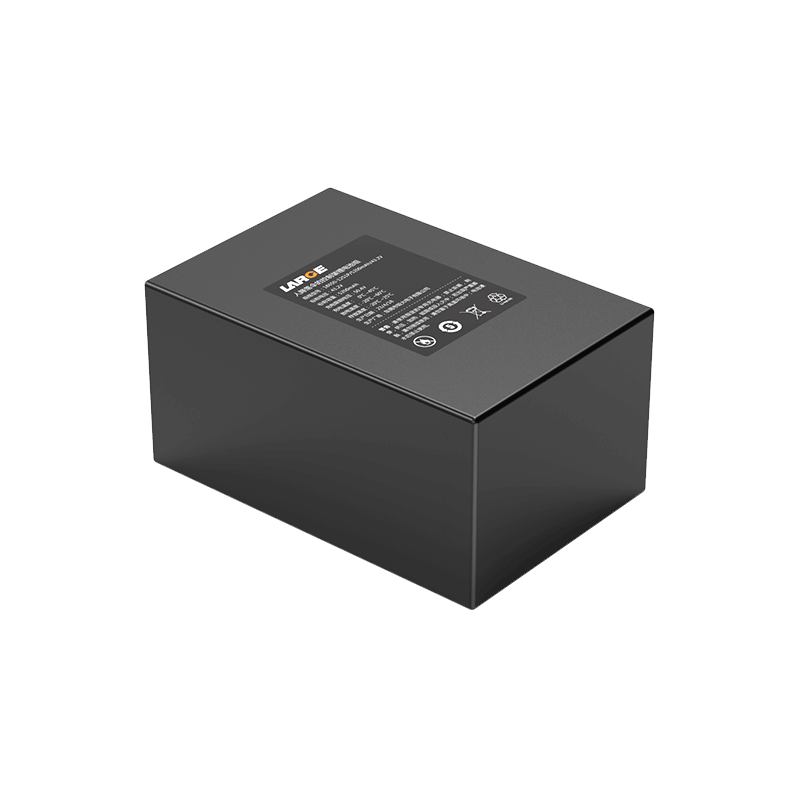

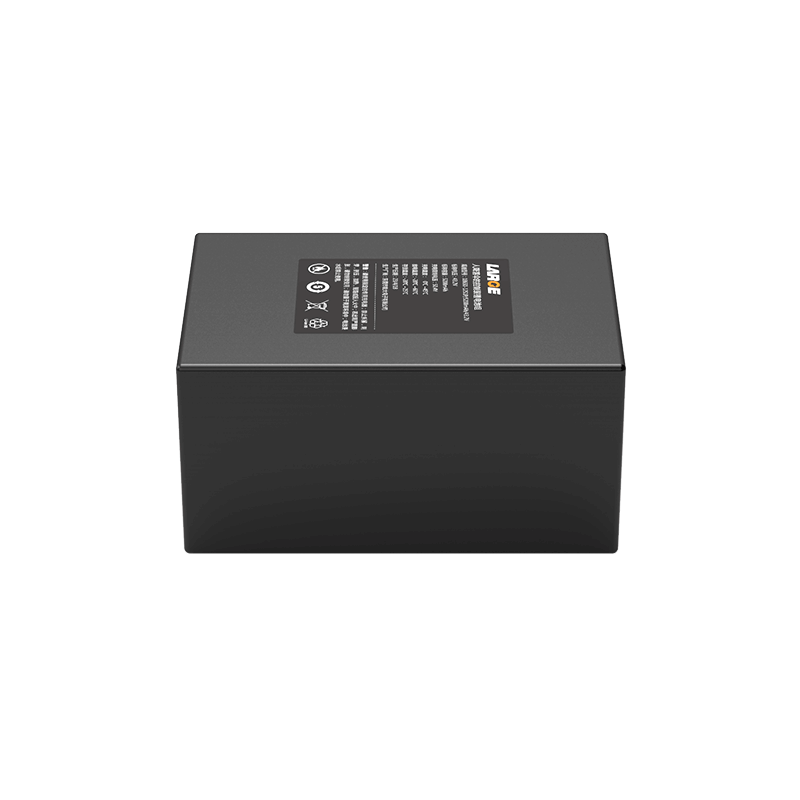

26650 43.2V 5200mAh Control of the Unmanned Parachute Lithium-ion Battery Pack

Customization | Free Battery Solution

Product Detail

Product number: 35AQ513-01

Battery model: 18650/2500mAh/3.6V

Battery specification: 18650-12S1P/5200mAh/43.2V

Nominal voltage: 43.2V

Nominal capacity: 5.6Ah

Charging voltage: 50.4V

Charging current: ≤5.2A

Discharge current: 30.0A

Instant discharge current: 50A

Discharge cut-off voltage: 30.0V

Finished internal resistance: ≤150mΩ

Battery weight: 1.4Kg

Product size: 75*100*155mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 25℃

Battery case: /

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: unmanned parachute control
