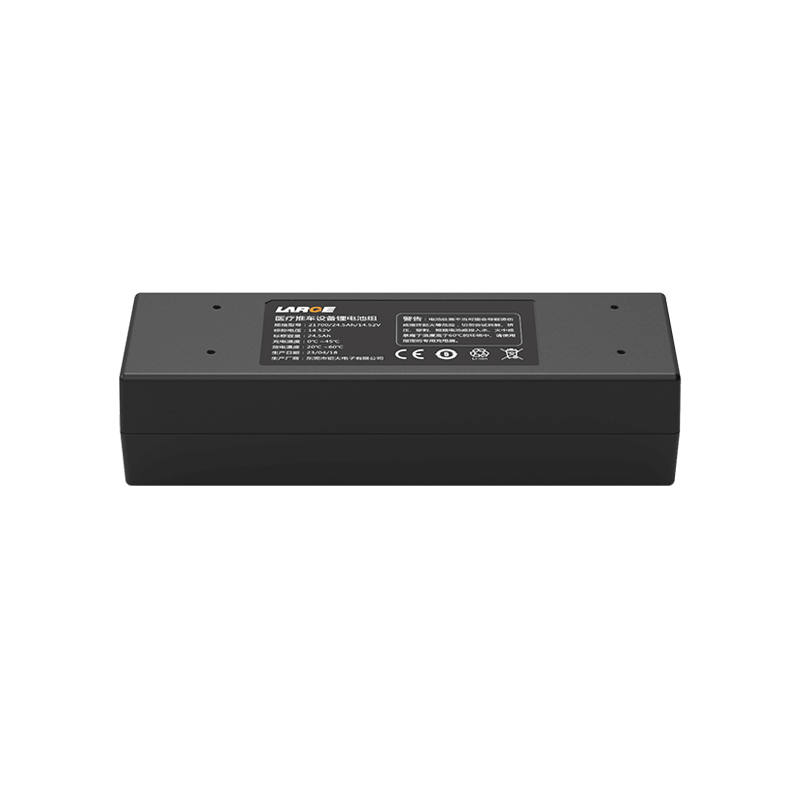

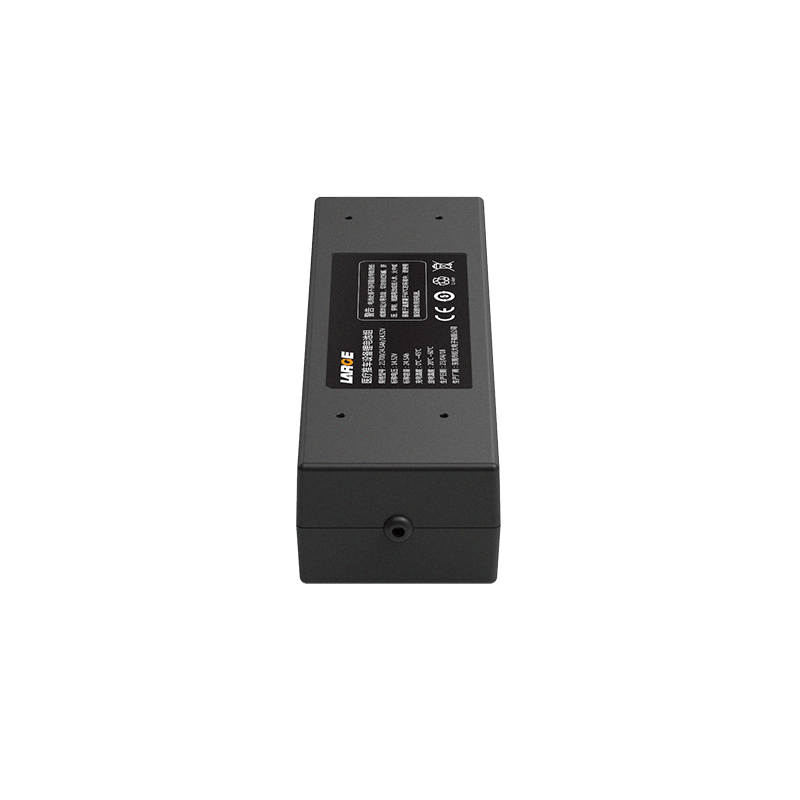

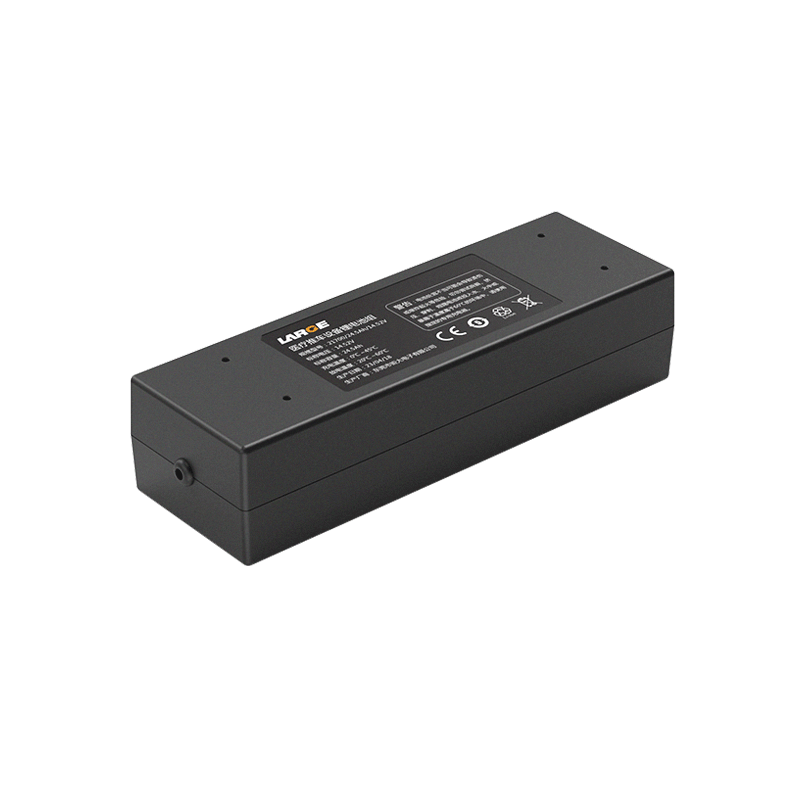

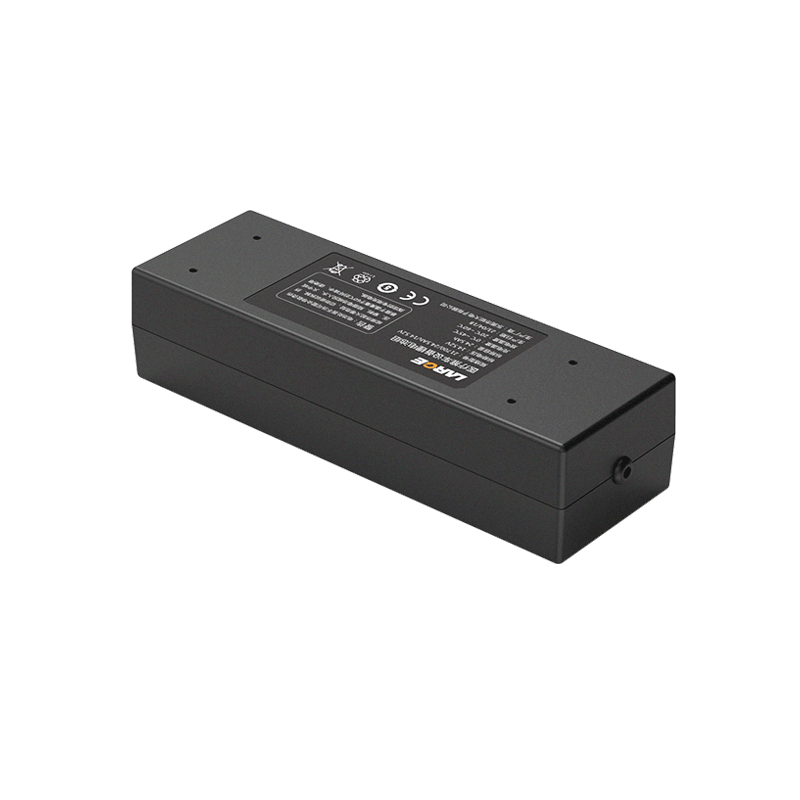

Custom Lithium ion Battery Pack
Product number: 08DQ0068-02
Battery model: INR21700-50E/4900mAh/3.63V
Battery specifications: 21700-4S5P/24.5Ah/14.52V (Smart + shell)
Nominal voltage: 14.52V
Nominal capacity: 24.5Ah
Charging voltage: 16.8V
Charging current: ≤6.0A
Discharge current: 25.0A
Instantaneous discharge current: 30.0A
Discharge cut-off voltage: 10.0V
Finished internal resistance: ≤150mΩ
Battery weight: 700g
Product size: 56*80*240mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 23℃
Battery case: ABS+PC
Intelligent lithium-ion battery protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: Medical cart real-time dental scanning equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
