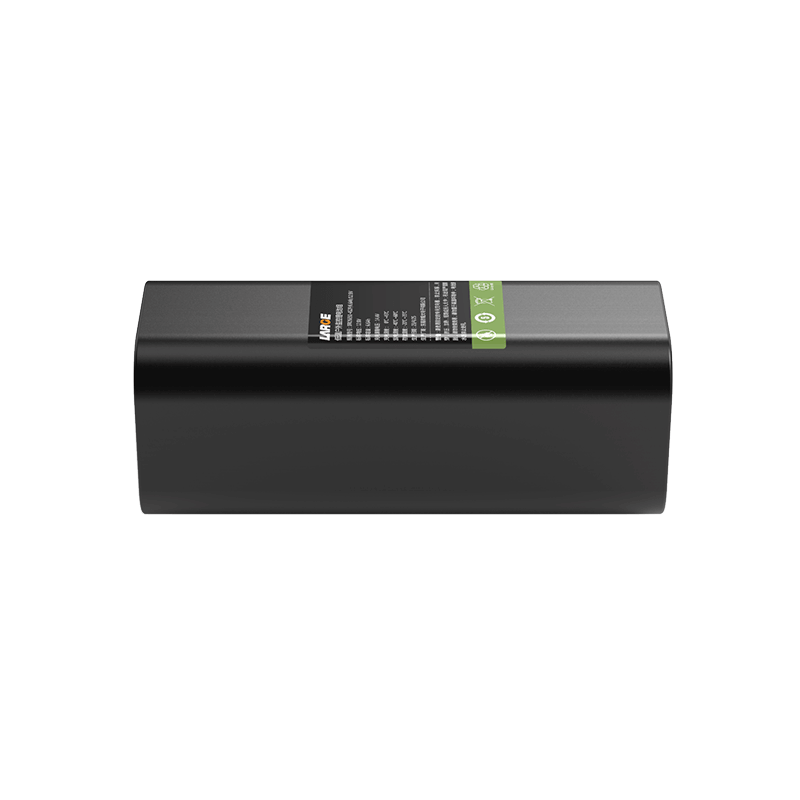

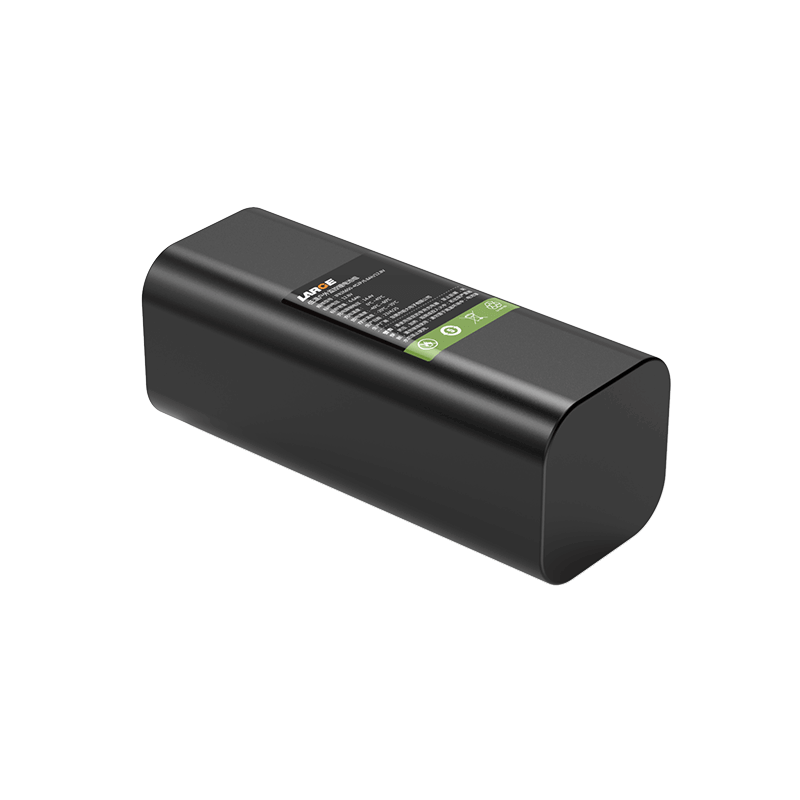

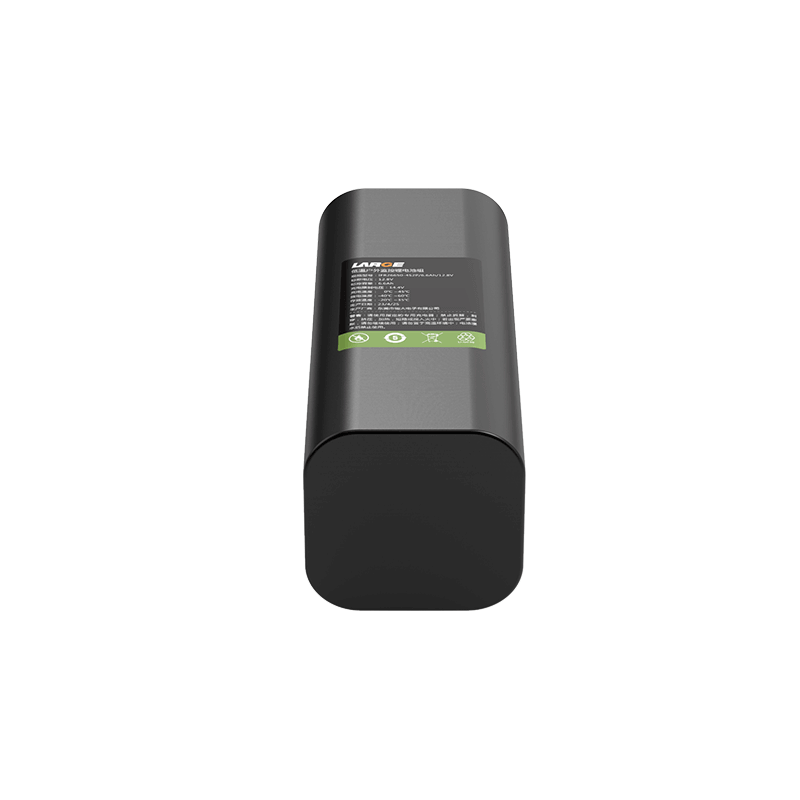

Custom Lithium ion Battery Pack
Product number: 01WQ0103-01
Cell model: IFR26650/3300mAh/3.2V
Battery specifications: IFR26650-4S2P/6.6AH/12.8V
Nominal voltage: 12.8V
Nominal capacity: 6.6Ah
Charging voltage: 14.4V
Charging current: ≤4.0A
Discharge current: 6.0A
Instantaneous discharge current: 8A
Discharge cut-off voltage: 10.0V
Internal resistance of finished product: ≤240mΩ
Battery weight: 750g
Product size: 55*55*138mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery case: /
Intelligent lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application: Outdoor monitoring
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
