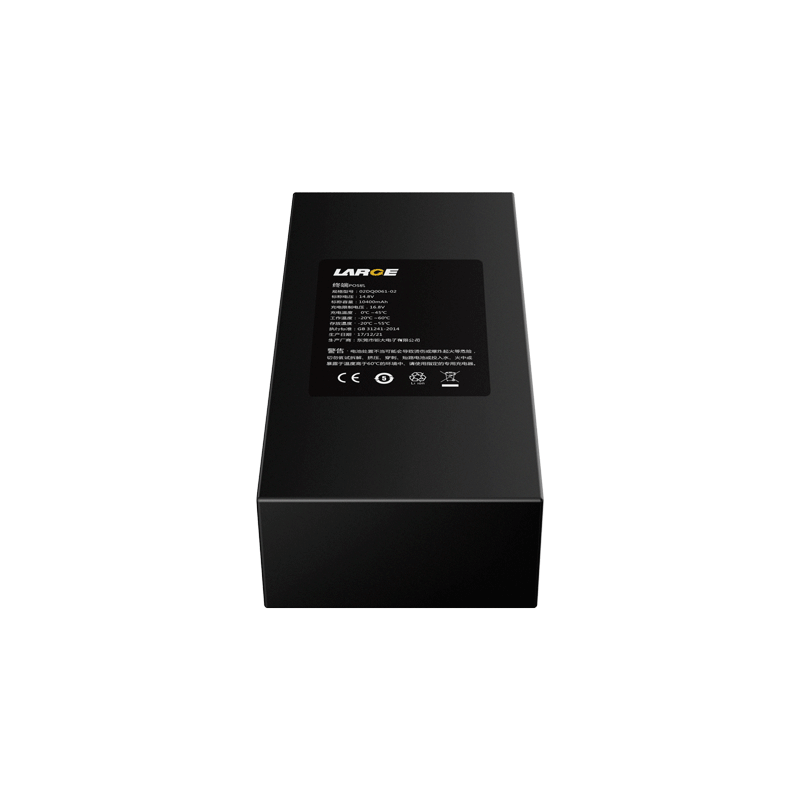

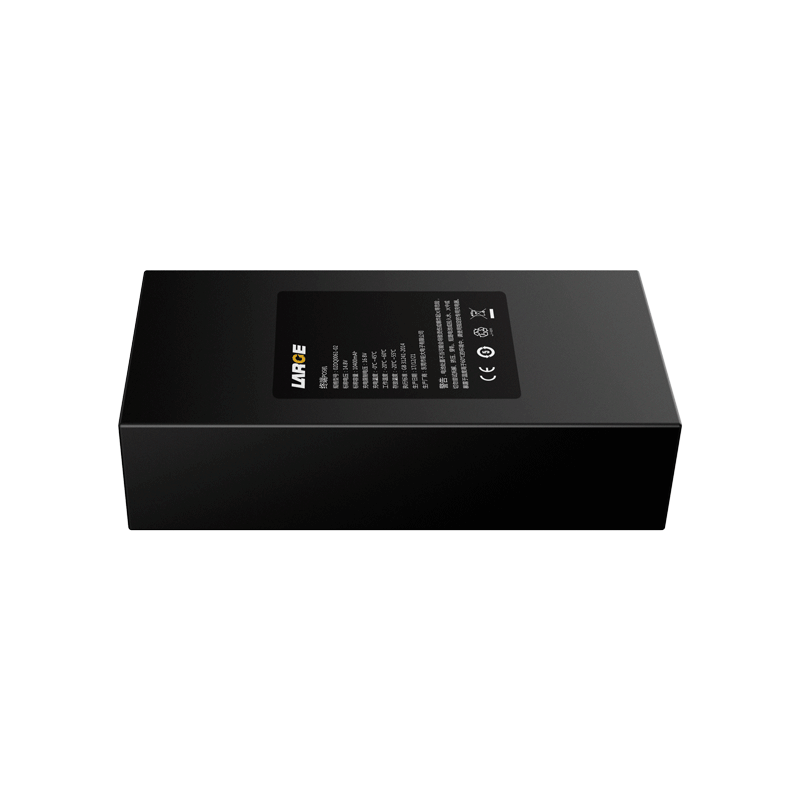

Custom Lithium ion Battery Pack
Product number: 02DQ0061-02
Cell model：ICR18650-26F/2600mAh/3.7V SAMSUNG
Battery specification: 18650-4S4P/10400mAh/14.8V
Nominal voltage：14.8V
Nominal capacity：10400mAh
Charging voltage: 16.8V
Charging current: ≤3000mA
Discharging current: ≤5000mA
End-off voltage: 12.0V
Internal resistance: ≤250mΩ
Battery weight: about 595g
Product dimension: 150*72.5*39 mm
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～35 ℃
Temperature protection: charge at 55±2℃, and discharge at 60±2℃
Battery case: PVC
Lithium ion battery protection: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, over temperature protection, low voltage alarm.
Application field: POS machine
Product features
1. Data communication management SMBUS: adopt TI software management chip, and monitor the temperature, voltage, capacity, percentage of the battery pack by IC.
2. The host machine transfers the data by SMBUS communication, which can read the battery information and improve the security.
3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
