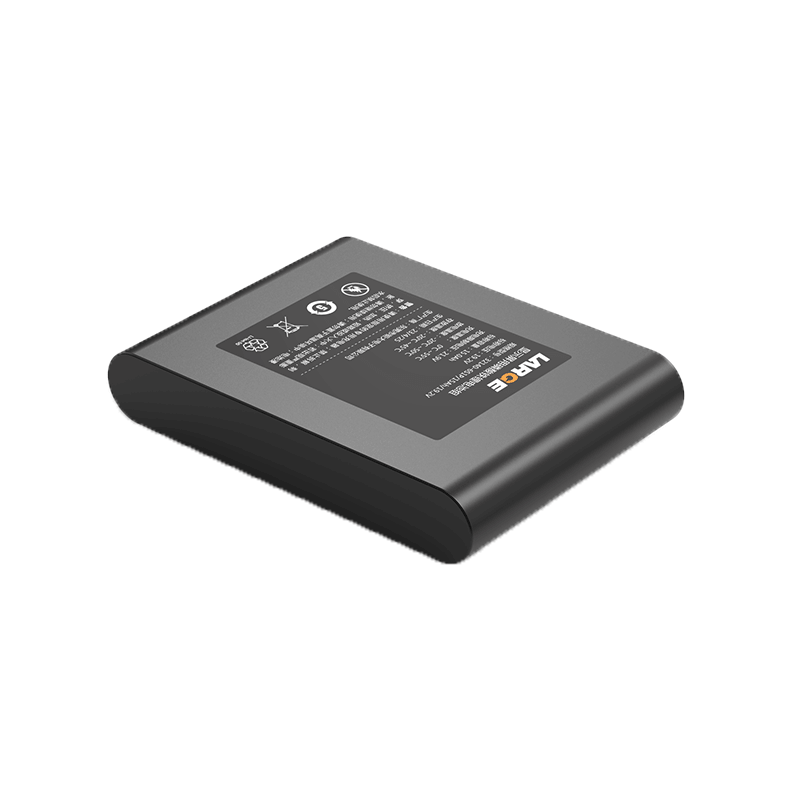

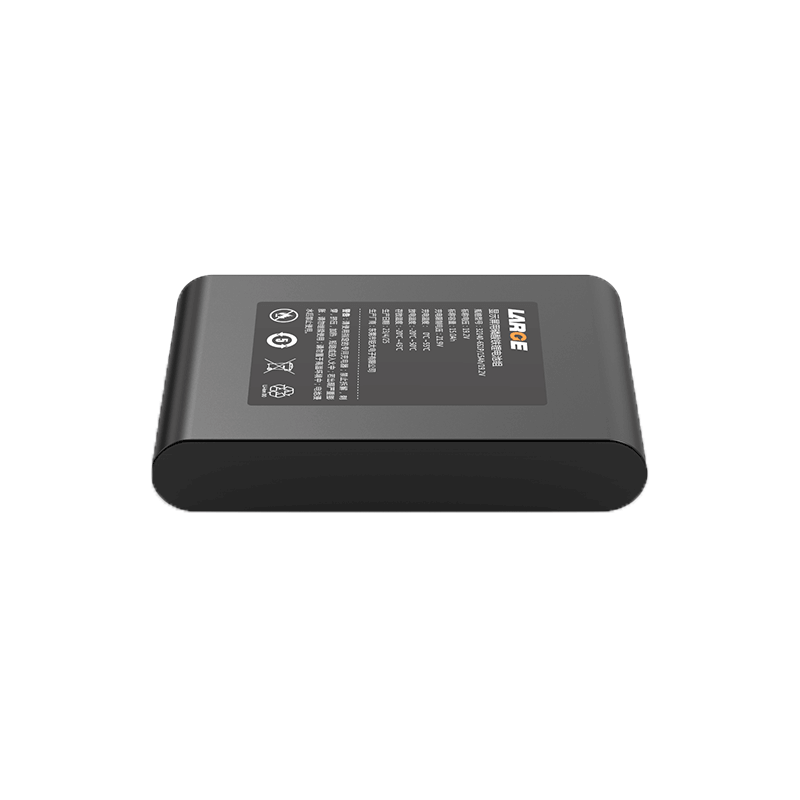

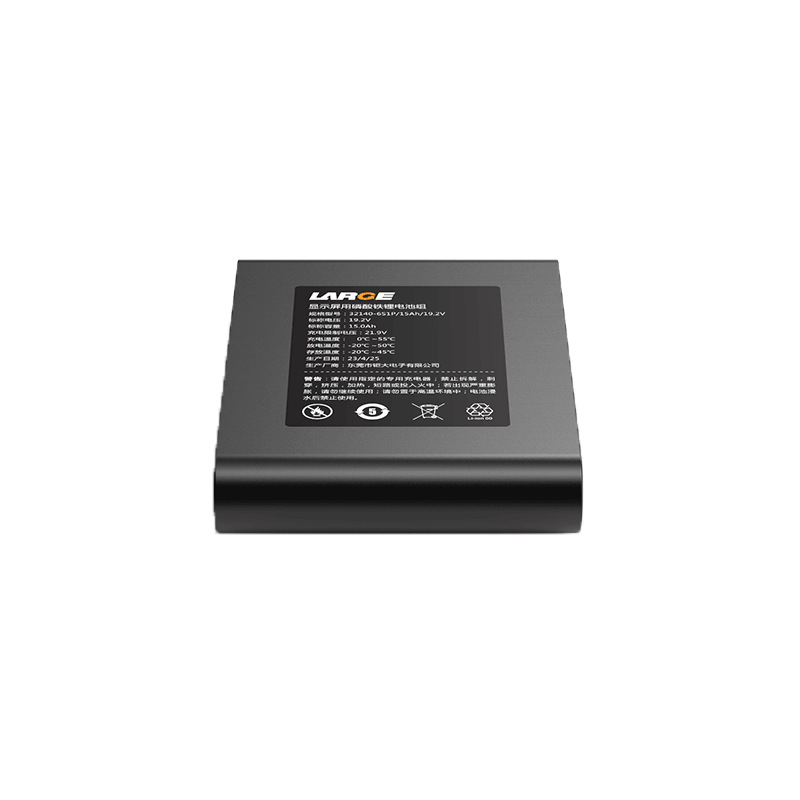

Custom Lithium ion Battery Pack
Product number: 08DQ0066-01
Cell model: 32140/15Ah/3.2V
Battery specification: 32140-6S1P/15Ah/19.2V
Nominal voltage: 19.2V
Nominal capacity: 15.0Ah
Charging voltage: 21.9V
Charging current: ≤7.0A
Discharge current: 7.0A
Instantaneous discharge current: 15.0A
Discharge cut-off voltage: 16.8V
Internal resistance of finished product: ≤350mΩ
Battery weight: ≤2.0kg
Product size: 37*148*203mm
Charging temperature: 0 ~ 55℃
Discharge temperature: -20 ~ 55℃
Storage temperature: -20 ~ 45℃
Battery case: sheet metal case
Intelligent lithium-ion battery protection: power management (IIC protocol), short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.
Application: Display screen
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
