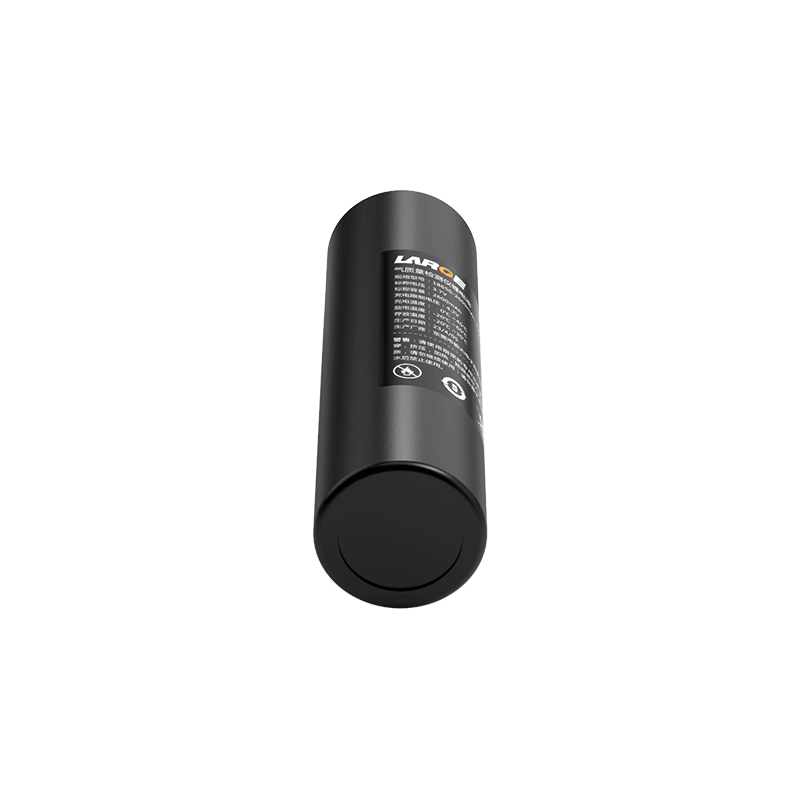

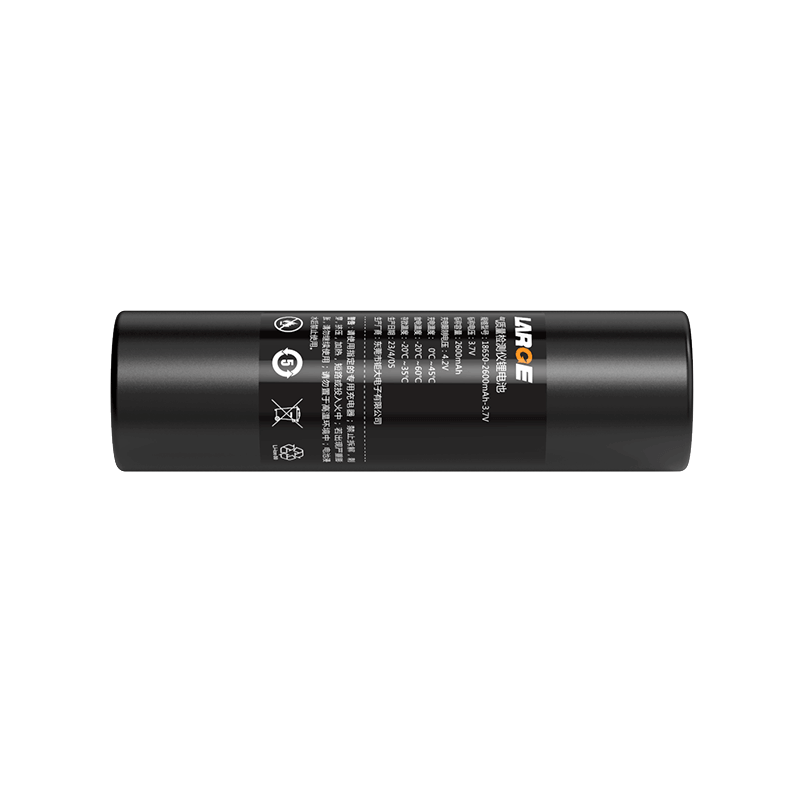

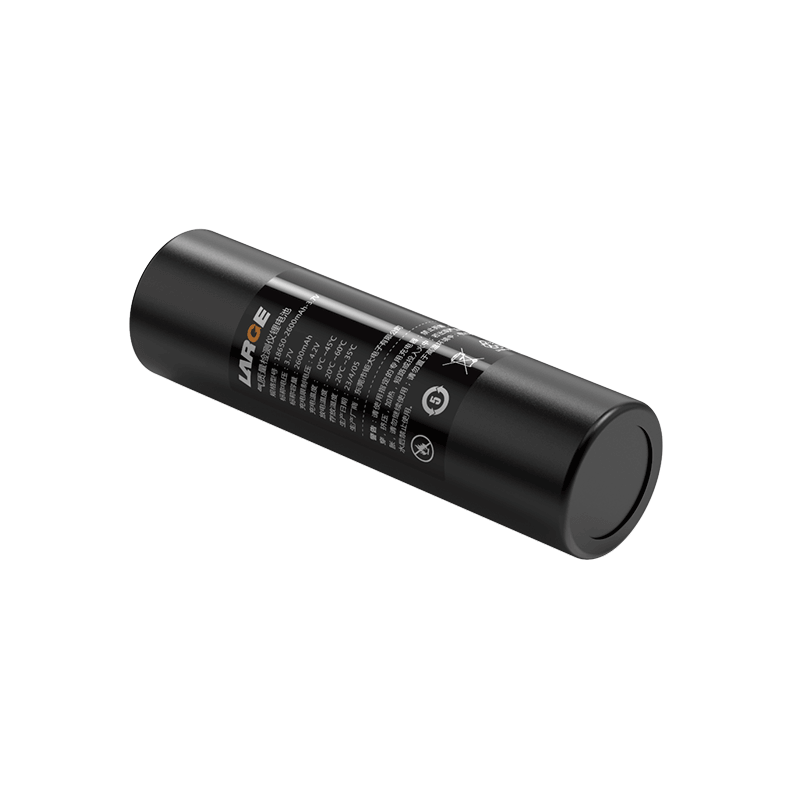

Product number: 01WQ0103-02T
Battery model: 18650-2600mAh-3.7V
Battery specification: 18650-1S1P-2600mAh-3.7V
Product size: 71*φ19.5mm (Max)
Nominal voltage: 3.7V
Nominal capacity: 2600mAh
Finished internal resistance: ≤180mΩ
Charging voltage: 4.2V
Charging current: ≤1.2A
Discharge current: ≤2.0A
Discharge cut-off voltage: 3.0V
Battery weight: 50g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: Blue PVC heat shrink film
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Applications: Air quality detection, portable equipment
Product Features
1.Blue PVC heat shrink film package is simple and reliable, easy to install;
2.Connector plug output: Use special plug output mode,to increase the electrical reliability of the plug;
3.Hardware output: Use gold-plated shrapnel output to increase electrical reliability;
4.Battery protection management: Use special lithium-ion battery protection chip with high stability, high precision monitoring, accurate control, temperature protection and other functions, to maximize the elimination of safety hazards;
5.The battery pack has nice safety, good discharge performance and long cycle life;
6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
