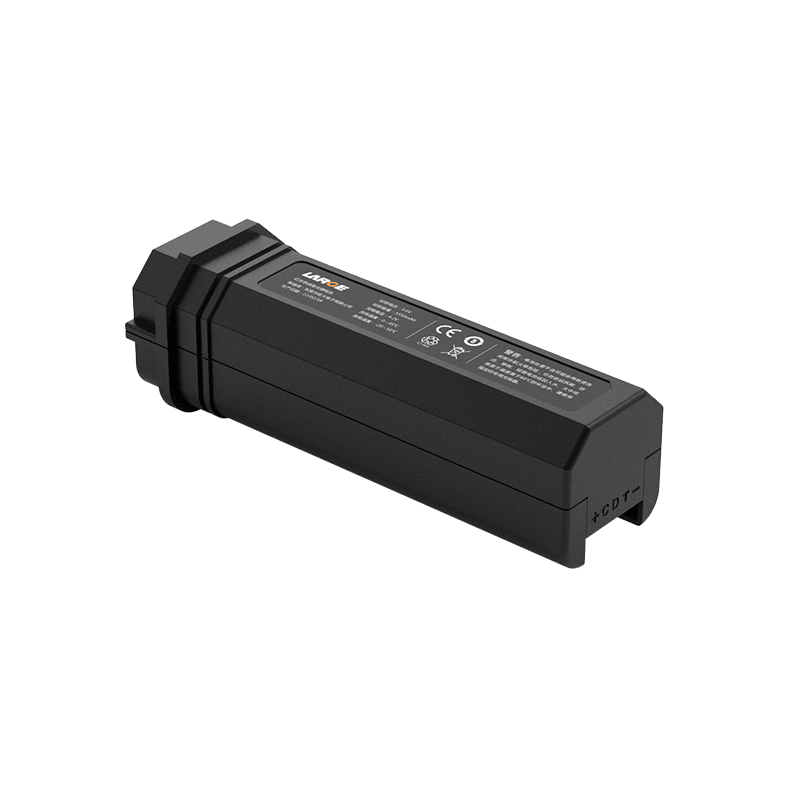

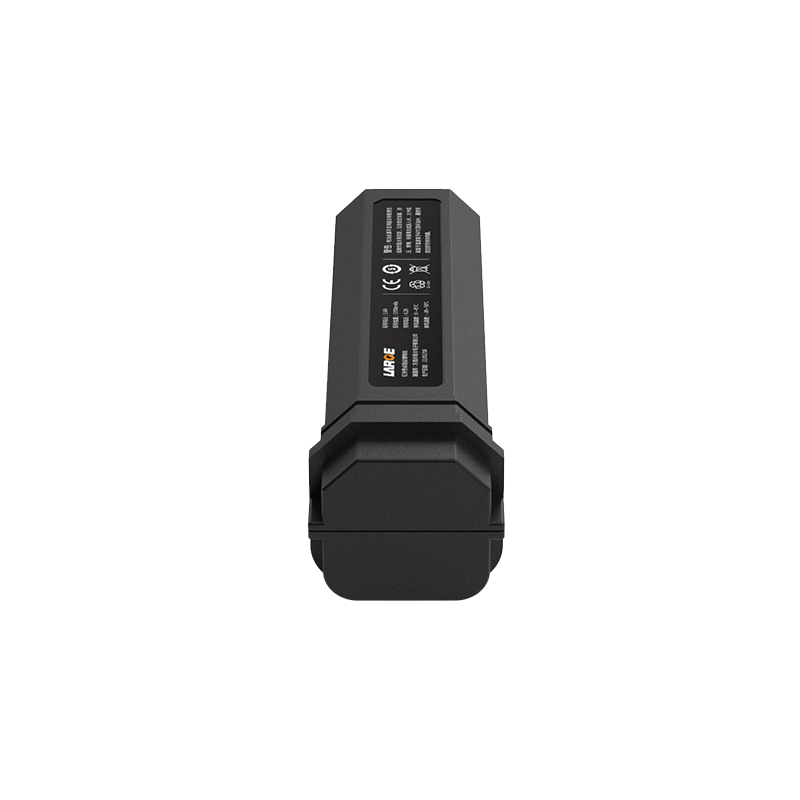

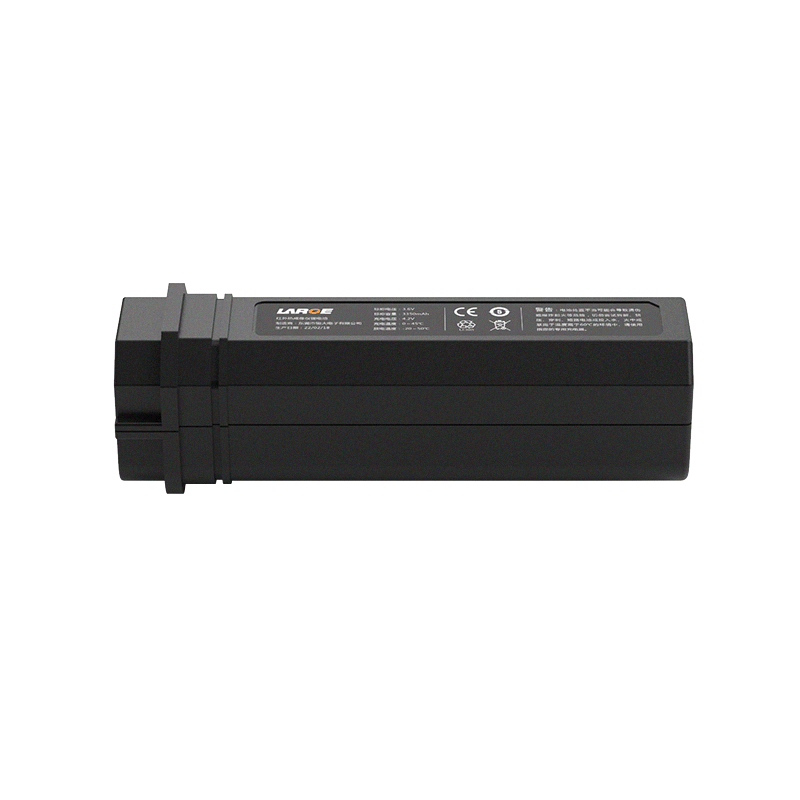

18650 3.6V 3350mAh Infrared Thermal Imager Lithium-ion Battery

Customization | Free Battery Solution

Product Detail

Product number: 01DQ0030-16

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-1S1P-3350mAh-3.6V

Product size: 86.85*23.9*27.9mm

Nominal voltage: 3.6V

Nominal capacity: 3350mAh

Finished internal resistance: ≤150mΩ

Charging voltage: 4.2V

Charging current: ≤3A

Discharge current: ≤3A

Discharge cut-off voltage: 2.8V

Battery weight: 60g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Engineering plastic ABS+PC

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Applications: Infrared thermal imaging equipment, portable infrared equipment

Product Features

1.ABS+PC shell increases battery reliability and firmness;

2.Hardware output: Gold-plated shrapnel output increases electrical reliability;

3.Battery protection management: Use special lithium battery protection chip with high stability, high precision monitoring, accurate control,so as to minimize security risks;

4.Data communication management: TI-SMBus software management chip with SMBus communication accurate data transmission, accurate temperature control, to minimize security risks.

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
