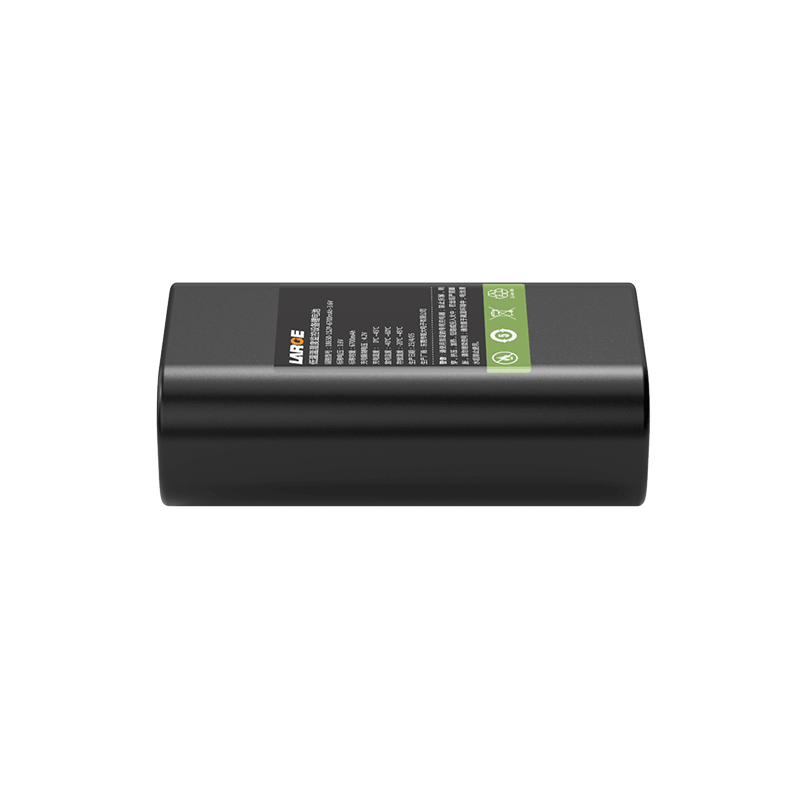

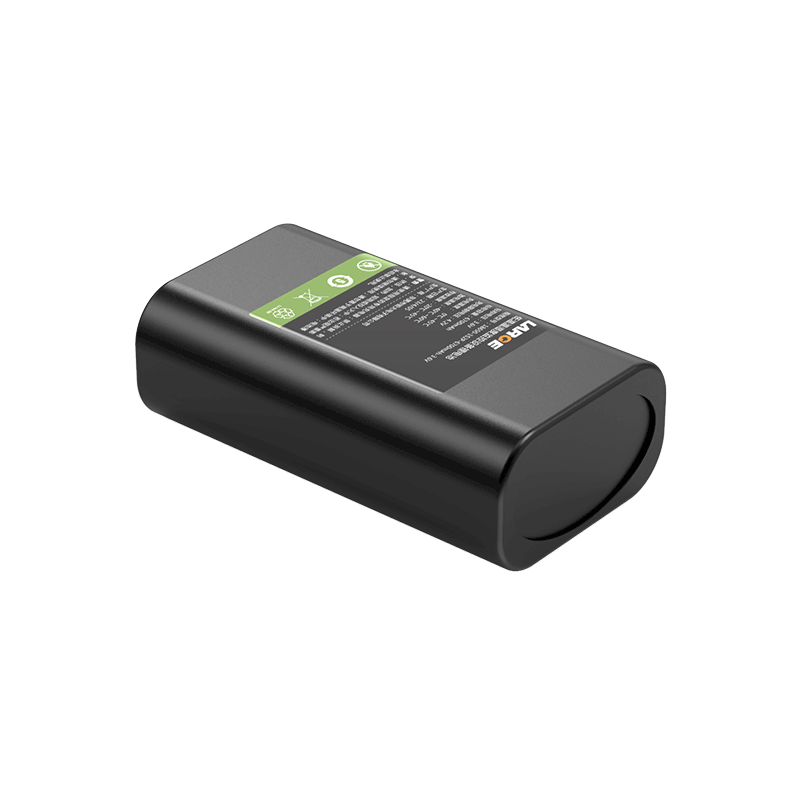

Low Temperature 18650 3.6V 6700mAh Temperature and Humidity Monitoring Device Lithium-ion Battery (Cold Chain Logistics Inside the Compartment)

Customization | Free Battery Solution

Product Detail

Product number: 05DQ0067-01

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-1S2P-6700mAh-3.6V

Product size: 68*38*21.5mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 6700mAh

Finished internal resistance: ≤150mΩ

Charging voltage: 4.2V

Charging current: ≤2.0A

Discharge current: ≤2.0A

Discharge cut-off voltage: 2.5V

Battery weight: 110g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -20 ~ 35 ℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Temperature and humidity monitoring equipment, low temperature working equipment

Product Features

1.Blue PVC heat shrink film package is simple and reliable,and easy to install;

2.Connector plug output terminal: Use MOLEX plug output mode to increase the electrical reliability of the plug;

3.Use special lithium battery protection chip with high stability, high precision monitoring, accurate control and other functions,to maximize the elimination of security risks;

2.The battery has nice low-temperature discharge performance, supports -40℃ discharge, and its discharge capacity is more than 50%;

3.The battery pack has nice safety, good discharge performance and long cycle life;

4.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept
