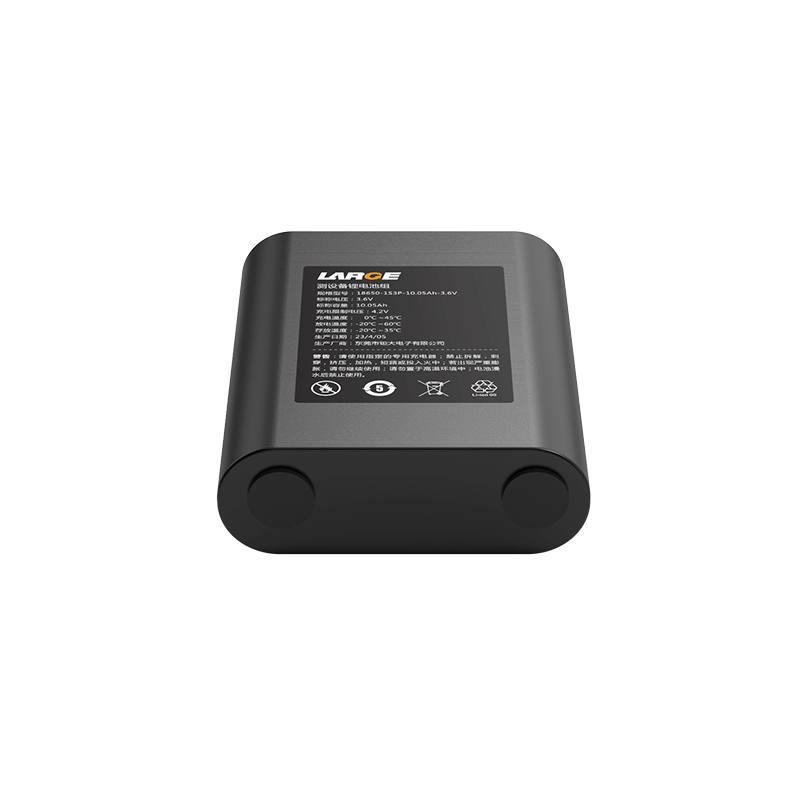

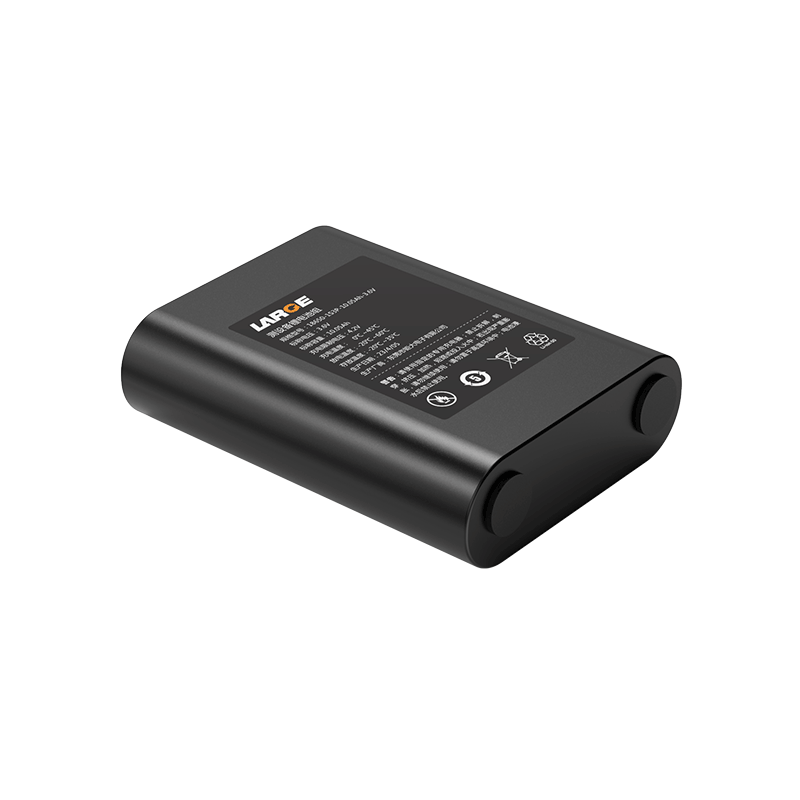

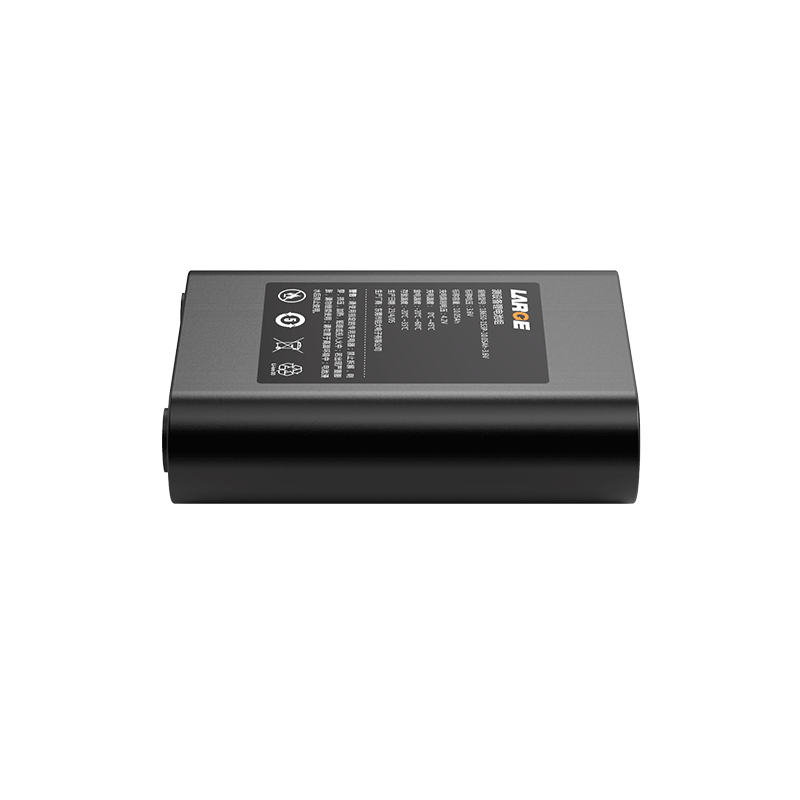

Custom Lithium ion Battery Pack
Product number: 01DQ0057-03
Battery model: 18650-3350mAh-3.6V
Battery specification: 18650-1S3P-10.05Ah-3.6V
Product size: 71*57*19.5mm (Max)
Nominal voltage: 3.6V
Nominal capacity: 10.05Ah
Internal resistance of finished product: ≤100mΩ
Charging voltage: 4.2V
Charging current: ≤4.0A
Discharge current: ≤3.0A
Discharge cut-off voltage: 2.8V
Battery weight: 500g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: Blue PVC heat shrink film
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: Testing equipment, portable testing equipment
Product Features
1.Blue PVC heat shrink film package is simple and reliable,and easy to install;
2.Connector plug output terminal: using MOLEX plug output mode to increase the electrical reliability of the plug;
3.Battery protection management: Use special lithium battery protection chip with high stability, high precision monitoring, accurate control, temperature protection and other functions to maximize the elimination of safety hazards;
4.The battery pack has nice safety, good discharge performance and long cycle life;
5.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
