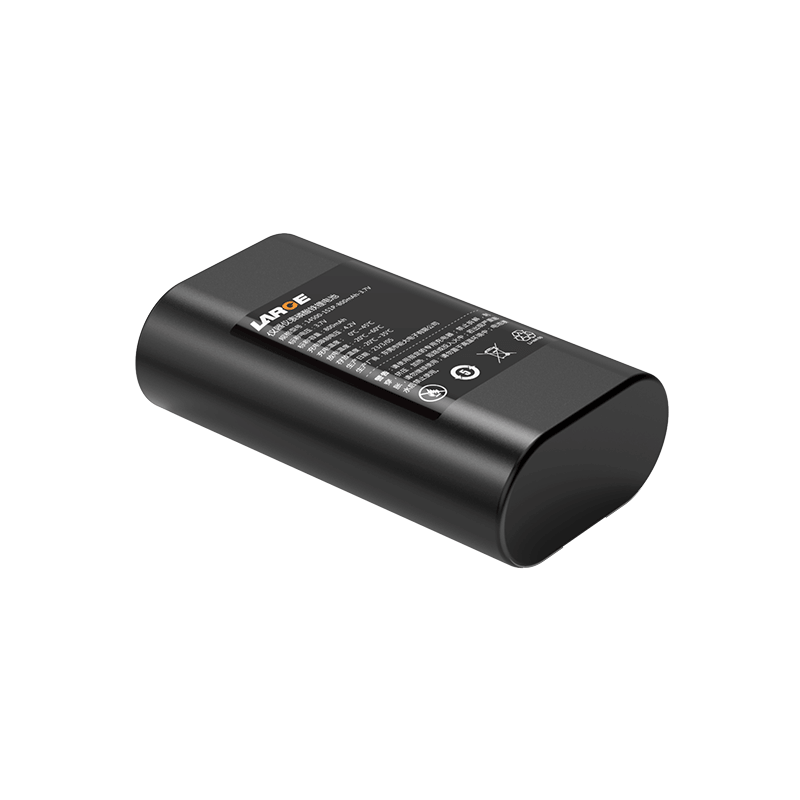

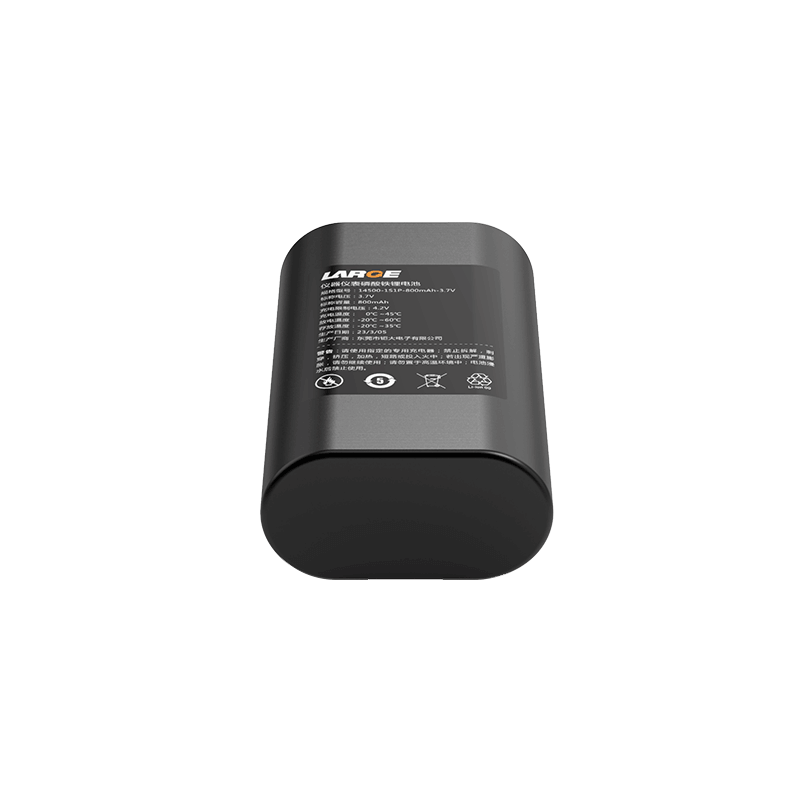

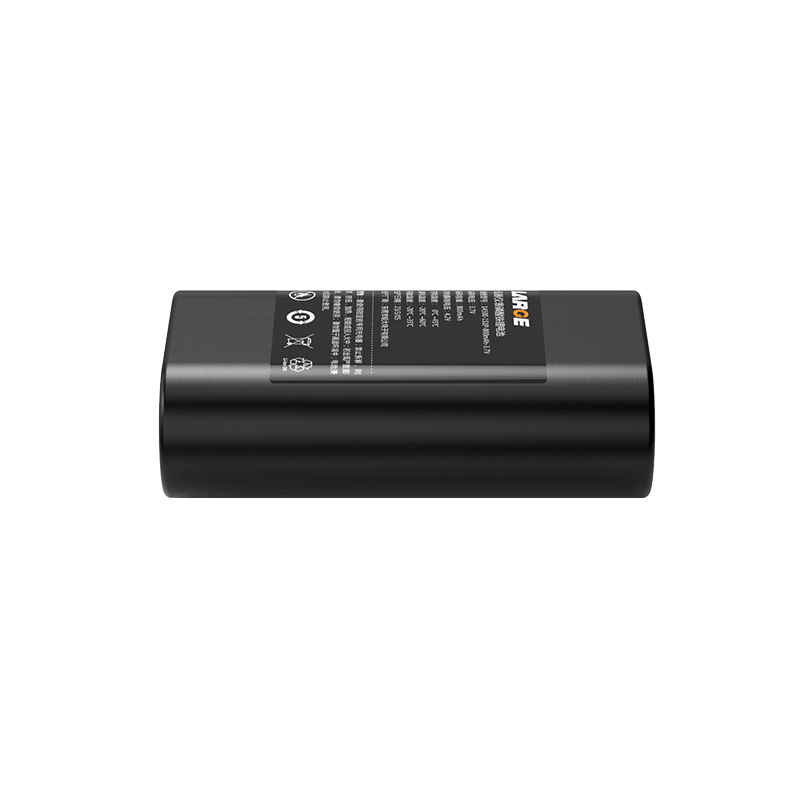

Custom Lithium ion Battery Pack
Product number: 01DQ0162-01
Battery model: 18650-1800mAh-3.2V
Battery specification: 18650-2S1P-1800mAh-6.4V
Product size: 68*37.5*21mm (Max)
Nominal voltage: 6.4V
Nominal capacity: 1800mAh
Finished internal resistance: ≤150mΩ
Charging voltage: 7.2V
Charging current: ≤1.6A
Discharge current: ≤5.0A
Discharge cut-off voltage: 5.0V
Battery weight: 100g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: Blue PVC heat shrink film
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Applications: Instrumentation, portable equipment
Product Features
1.Blue PVC heat shrink film package is simple and reliable,and easy to install;
2.The battery pack is connected with special nickel core, which has good shock resistance and impact resistance.
3.National standard wire output mode: Use solder joint. Solder welding can increase conductive reliability;
4.Battery protection management: Use special lithium-ion battery protection chip, with high stability, high precision monitoring, accurate control,to minimize safety hazards;
5.The battery pack use lithium iron phosphate battery cell with good safety performance and long cycle life.It can support more than 800 cycles;
6.The battery pack has long cycle life,which in line with low carbon, energy saving, environmental protection value concept.
