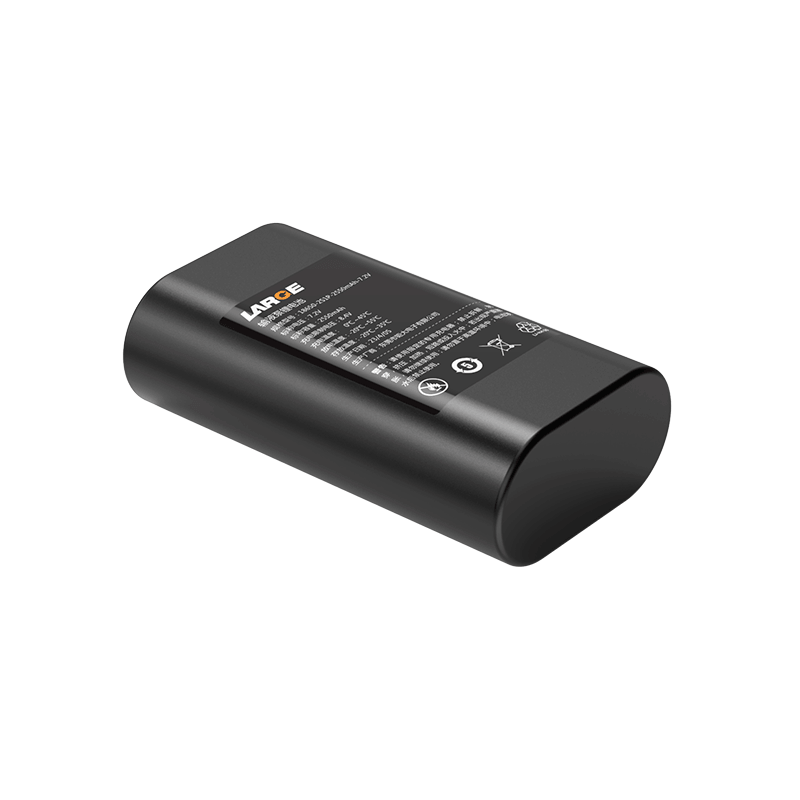

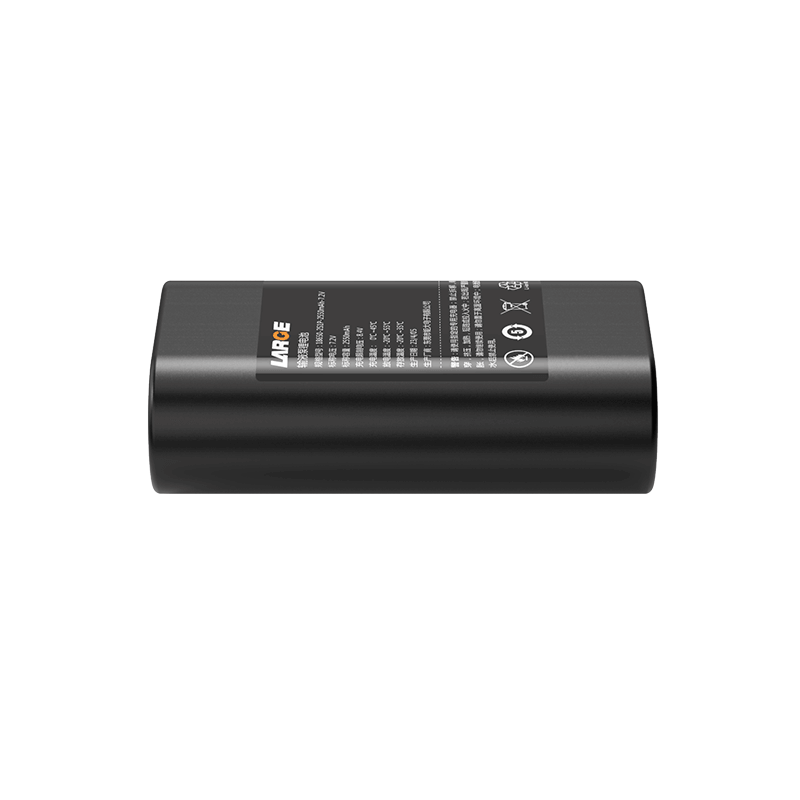

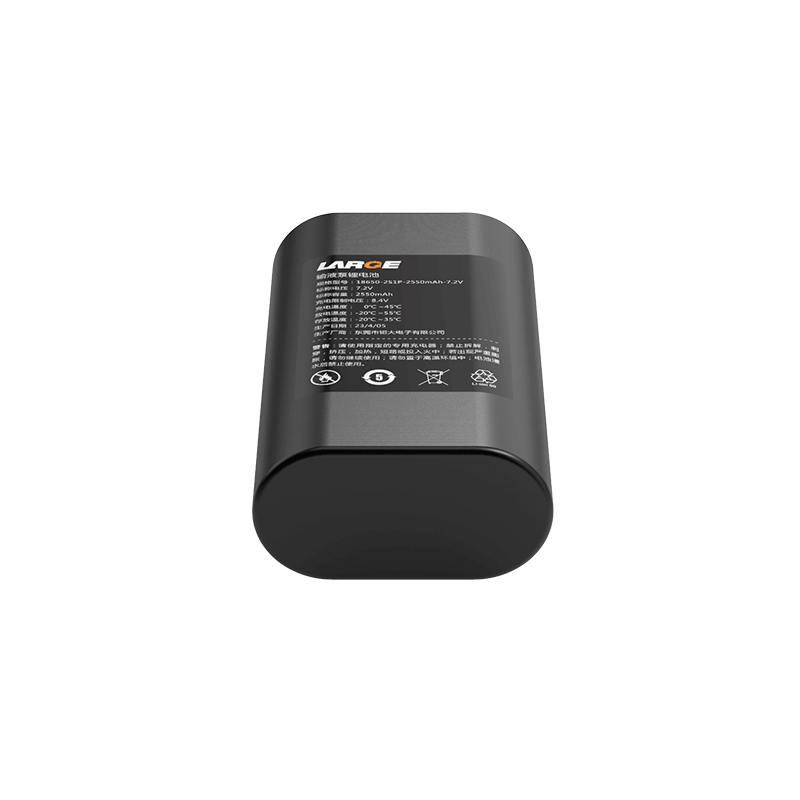

Custom Lithium ion Battery Pack
Product number: 33DZ056-02
Battery model: 18650-2550mAh-3.6V
Battery specification: 18650-2S1P-2550mAh-7.2V
Product size: 72*38.5*19.5mm (Max)
Nominal voltage: 7.2V
Nominal capacity: 2550mAh
Finished internal resistance: ≤200mΩ
Charging voltage: 8.4V
Charging current: ≤1.2A
Discharge current: ≤2.5A
Discharge cut-off voltage: 5.0V
Battery weight: 200g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55℃
Storage temperature: -20 ~ 35℃
Battery package: Blue PVC heat shrink film
Output mode: JST plug
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: Medical infusion pump, portable equipmen
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
