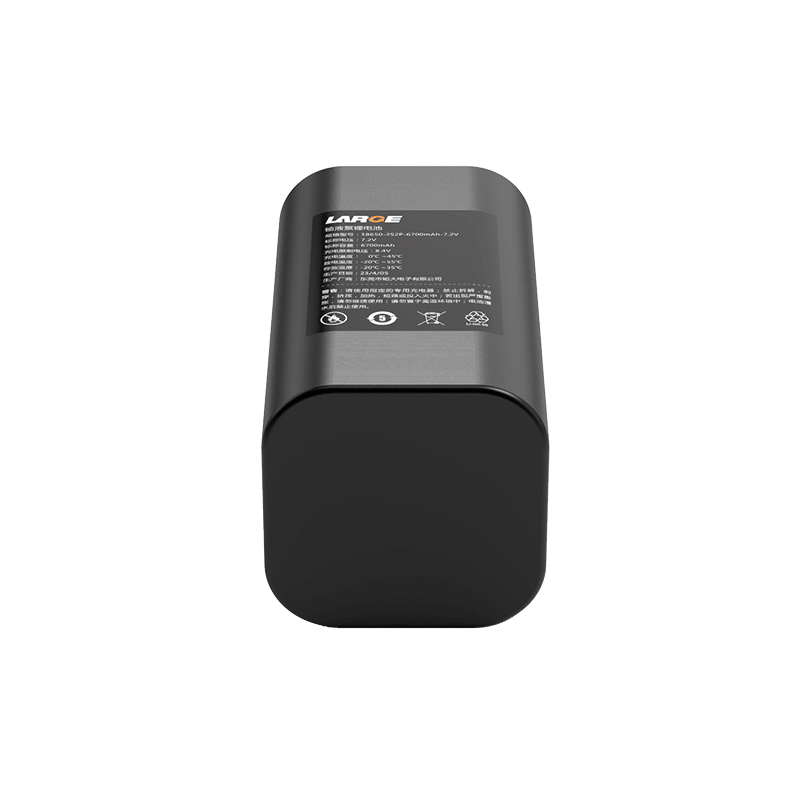

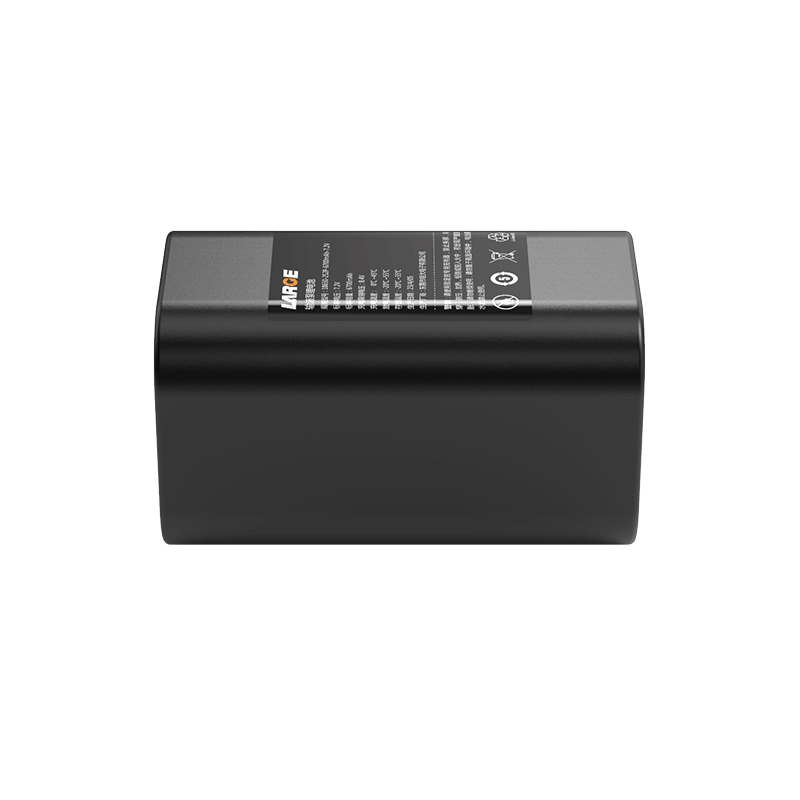

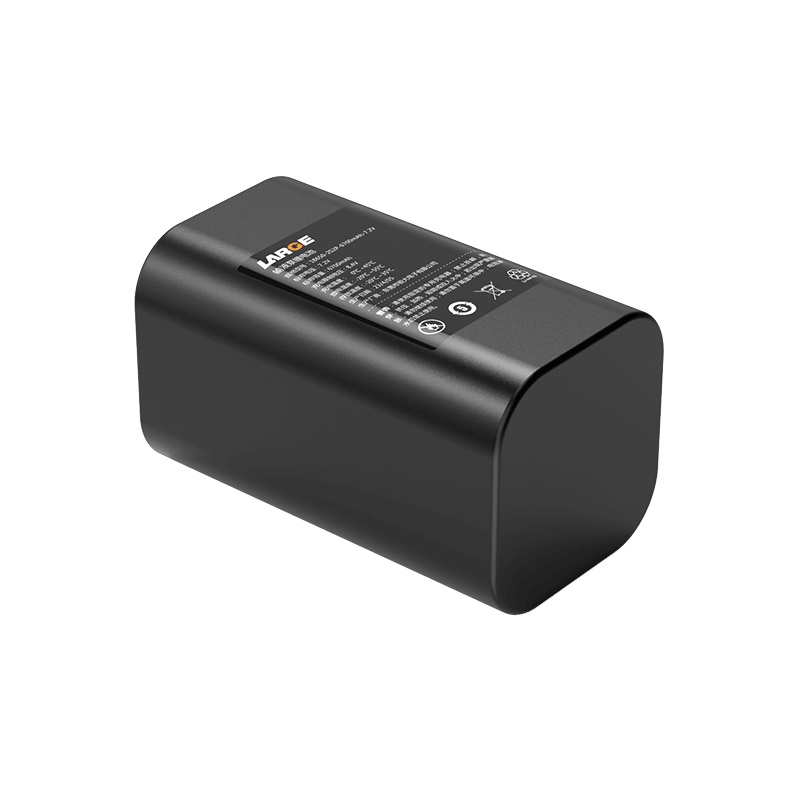

18650 7.2V 6700mAh Blood Transfusion and Infusion Temperature Heater Lithium-ion Battery

Customization | Free Battery Solution

Product Detail

Product number: 08DQ0072-02

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-2S2P-6700mAh-7.2V

Product size: 71*38.5*38.5mm (Max)

Nominal voltage: 7.2V

Nominal capacity: 6700mAh

Charging voltage: 8.4V

Charging current: ≤4.0A

Discharge current: ≤7.0A

Discharge cut-off voltage: 5.0V

Finished internal resistance: ≤120mΩ

Battery weight: 230g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: blood transfusion and infusion heating instrument, portable medical equipment

Product Features

1.Blue PVC heat shrink film package is simple and reliable,and easy to install;

2.Adopt JST plug output mode to increase conductive reliability;

3.Use special lithium-ion battery protection chip with precise control of battery overcharge, overdischarge, overcurrent, short circuit and other protection, to maximize the elimination of security risks.

4.It has the functions of high stability, high precision monitoring, accurate control, ESD protection, temperature protection to minimize security risks;

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
