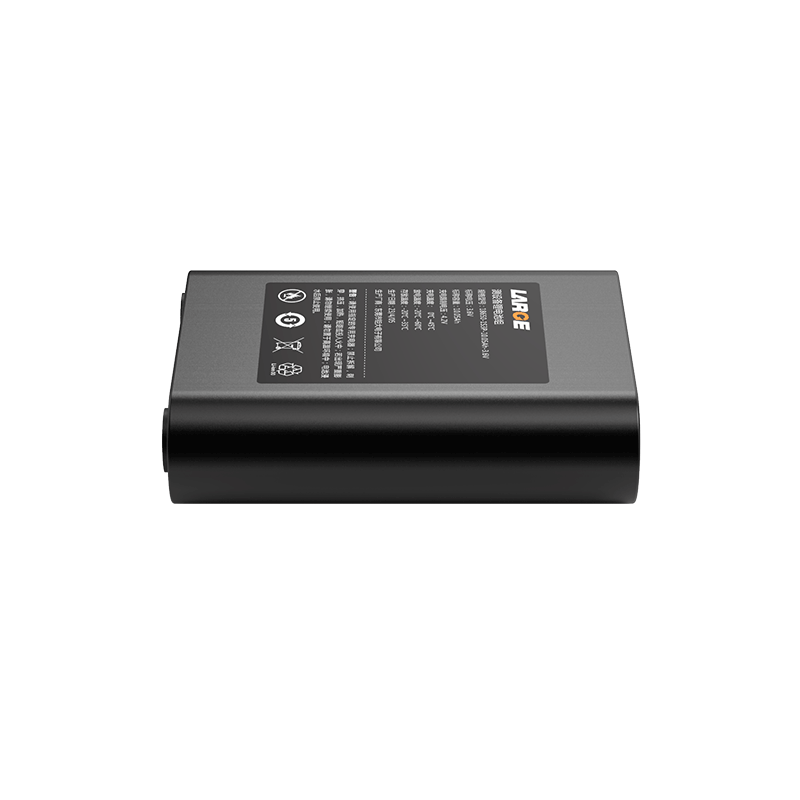

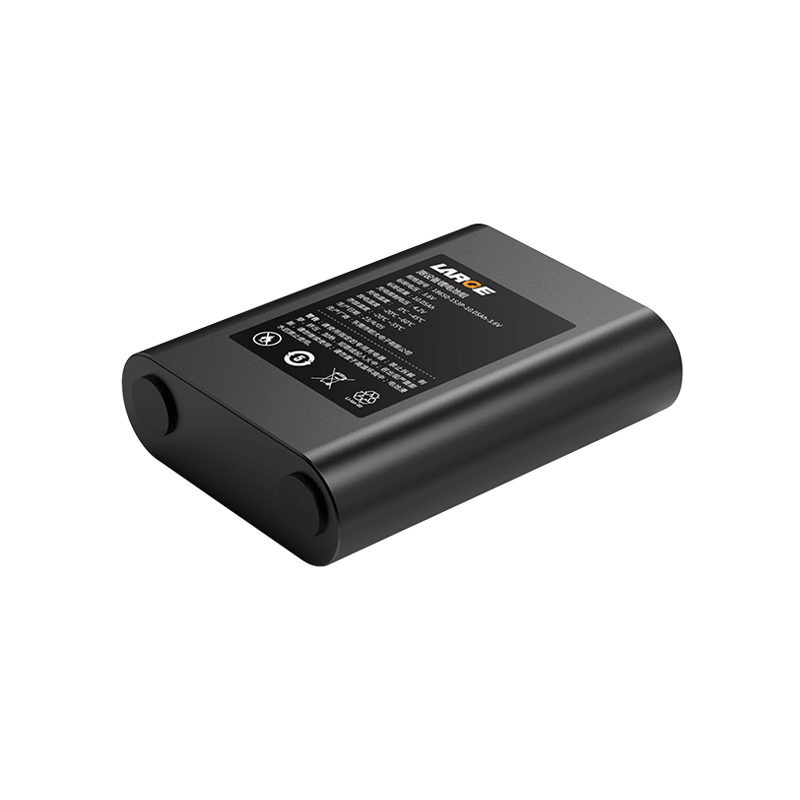

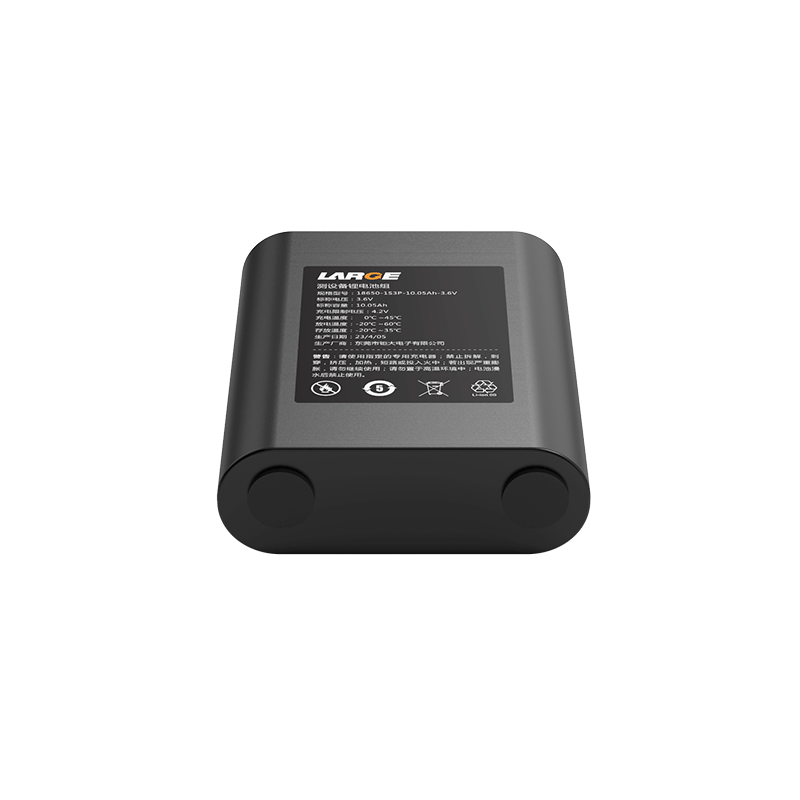

18650 10.8V 3350mAh Bladder Test Battery

Customization | Free Battery Solution

Product Detail

Product number: 01WQ0021-04T

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-3S1P-3350mAh-10.8V

Product size: 72*57*20mm (Max)

Nominal voltage: 10.8V

Nominal capacity: 3350mAh

Finished internal resistance: ≤180mΩ

Charging voltage: 12.6V

Charging current: ≤1.5A

Discharge current: ≤3.3A

Discharge cut-off voltage: 8.4V

Battery weight: 170g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: bladder testing instrument, portable medical equipment

Product Features

1.Blue PVC heat shrink film package is simple and reliable,and easy to install;

2.The battery pack is connected with special nickel sheet, which has good shock resistance;

3.Connector plug output terminal: Use MOLEX plug output mode to increase the electrical reliability of the plug;

4.Battery protection management: Use special lithium-ion battery protection chip, with high stability, high precision monitoring, accurate control, temperature protection and other functions,to maximize the elimination of safety hazards;

5.Data communication management: TI-SMBus software management chip, SMBus communication accurate data transmission, real-time battery status monitoring and control.

6.The battery pack has nice safety, good discharge performance and long cycle life;

7.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept
