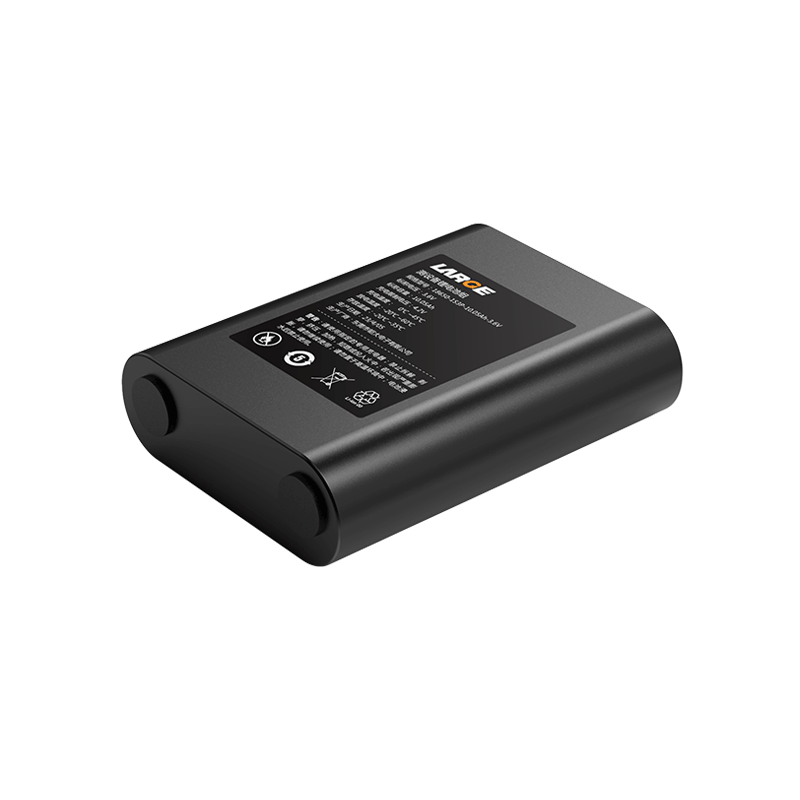

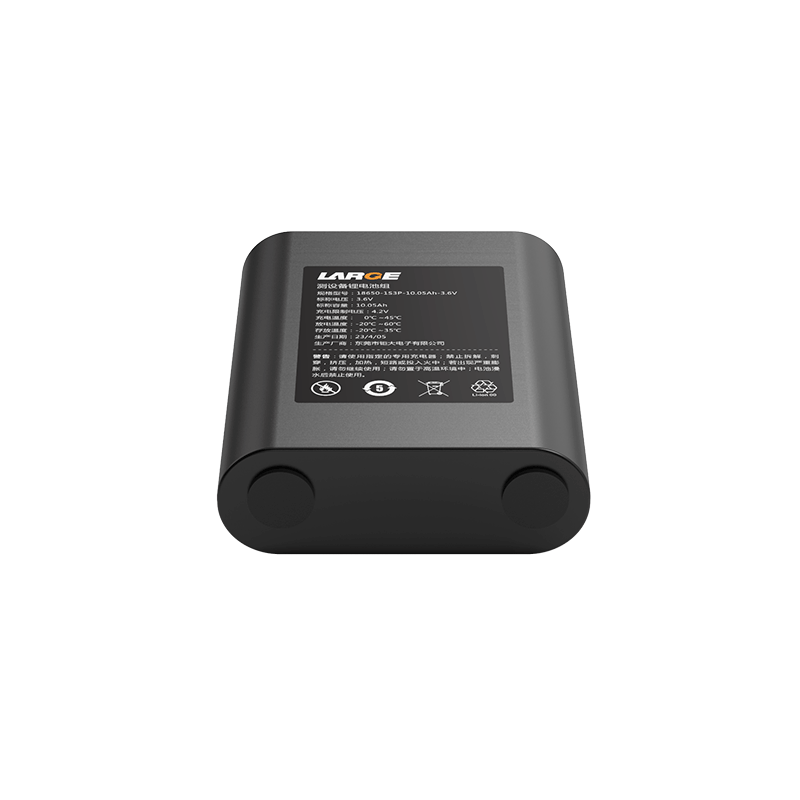

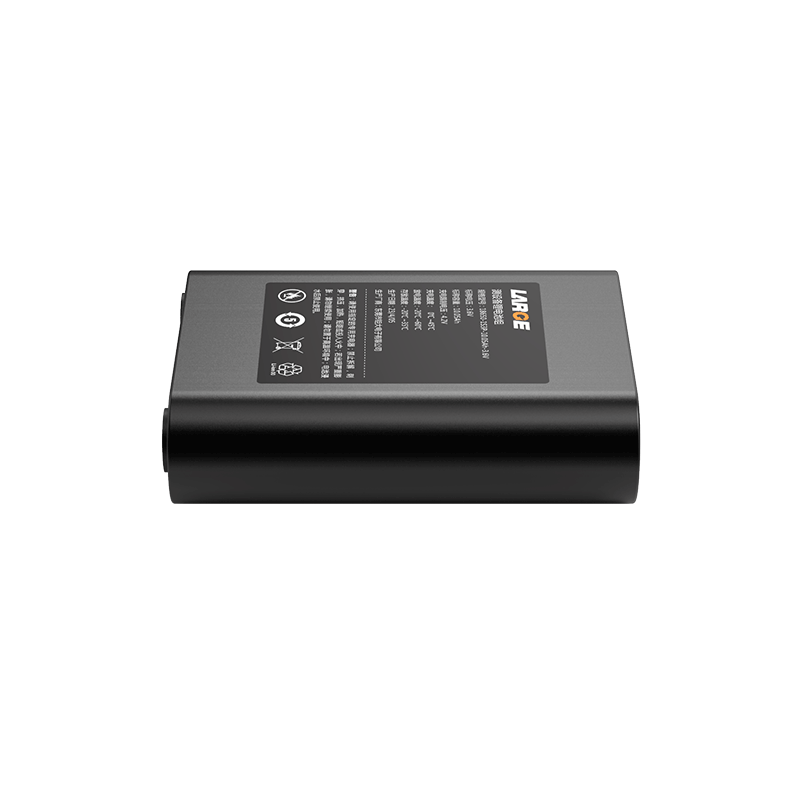

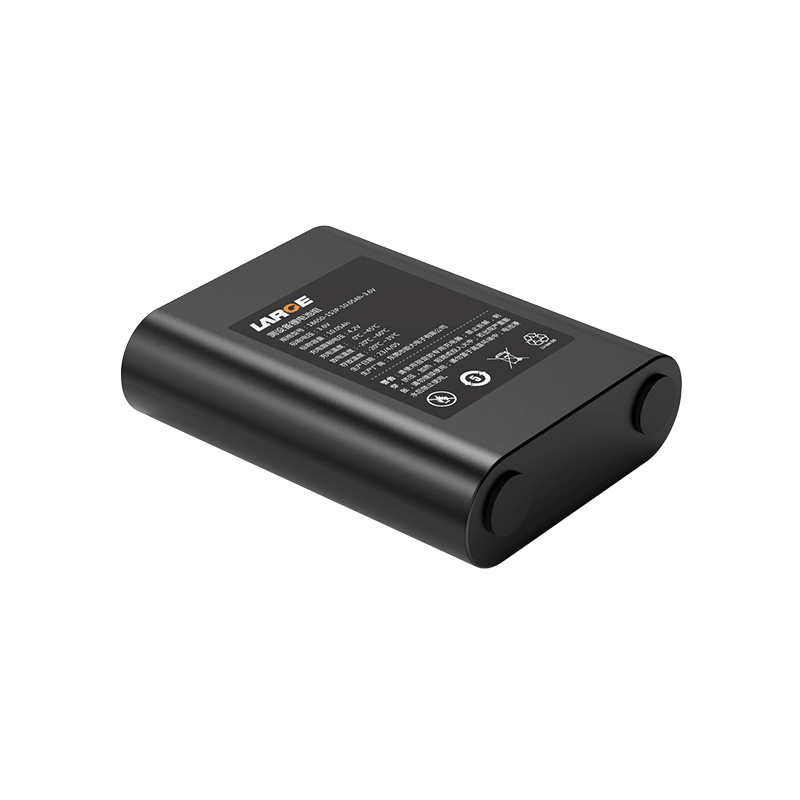

18650 10.8V 3350mAh Monitor Lithium-ion Battery Pack

Customization | Free Battery Solution

Product Detail

Product number: 08DQ0072-01

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-3S1P-3350mAh-10.8V

Product size: 71*56*19.5mm (Max)

Nominal voltage: 10.8V

Nominal capacity: 3350mAh

Charging voltage: 12.6V

Charging current: ≤1.6A

Discharge current: ≤3.0A

Discharge cut-off voltage: 8.1V

Finished internal resistance: ≤200mΩ

Battery weight: 230g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.

Application: Monitor, portable medical equipment

Product Features

1.Blue PVC heat shrink film package is simple and reliable,and easy to install;

2.Adopts JST plug output mode to increase conductive reliability;

3.Use special lithium-ion battery protection chip with precise control of battery overcharge, overdischarge, overcurrent, short circuit and other protection, to maximize the elimination of security risks;

4.It has the functions of high stability, high precision monitoring, accurate control, ESD protection, temperature protection to minimize security risks;

5.The battery pack has nice safety, good discharge performance and long cycle life;

6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
